We have developed and sold this Swivelling Radial Piston Hydraulic Motor to European, American and Southeast Asian market over 15 years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We are expecting to become your reliable partner in China.
1.Product Introduction of Swivelling Radial Piston Hydraulic Motor
We have manufactured this Seven Cylinders Radial Piston Motor since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Seven Cylinders Radial Piston Motor can transfer hydraulic energy to mechanical energy with high efficiency.We have our own profits team, layout crew, technical team, QC team and package team. Now we have strict top quality handle procedures for each procedure. Also, all of our workers are experienced in printing industry for Bottom price China series variable displacement pump, Any necessitates from you will be compensated with our greatest consideration! Bottom price China hydraulic pump, piston pump, With the support of our highly experienced professionals, we manufacture and supply best quality items. These are quality tested at various occasions to ensure only flawless range is delivered to customers, we also customize the array as per the require of customers to meet the requirement of customers.
2.Product Parameter (Specification) of Seven Cylinders Radial Piston Motor
|
XHS2 |
Unit |
200 |
250 |
300 |
350 |
420 |
500 |
600B |
630B |
|
Displacement |
ml/r |
192 |
251 |
304 |
346 |
424 |
492 |
565 |
623 |
|
Specific torque |
Nm/MPa |
30.5 |
39.9 |
48.3 |
55 |
67.4 |
78.2 |
89.8 |
99 |
|
Pressure rating |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Peak pressure |
MPa |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
|
Peak power |
kW |
59 |
59 |
59 |
59 |
59 |
59 |
59 |
59 |
|
Torque rating |
Nm |
680 |
890 |
1080 |
1225 |
1505 |
1745 |
2005 |
2210 |
|
Peak torque |
Nm |
810 |
1060 |
1285 |
1460 |
1790 |
2075 |
2385 |
2630 |
|
Speed rating |
r/min |
400 |
400 |
360 |
360 |
300 |
280 |
250 |
220 |
|
Cont. speed |
r/min |
500 |
500 |
450 |
450 |
380 |
350 |
320 |
280 |
|
Max. speed |
r/min |
760 |
760 |
700 |
700 |
700 |
650 |
650 |
550 |
|
Weight |
kg |
51 |
51 |
51 |
51 |
51 |
51 |
51 |
51 |
3.Product Feature And Application
This is a fixed displacement Seven Cylinders Radial Piston Motor with high power. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.
4.Product Details of Swivelling Radial Piston Hydraulic Motor

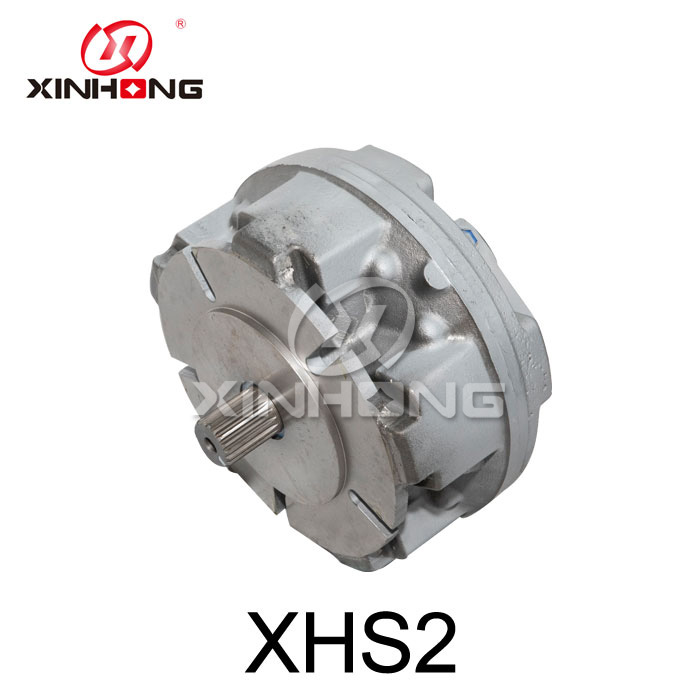

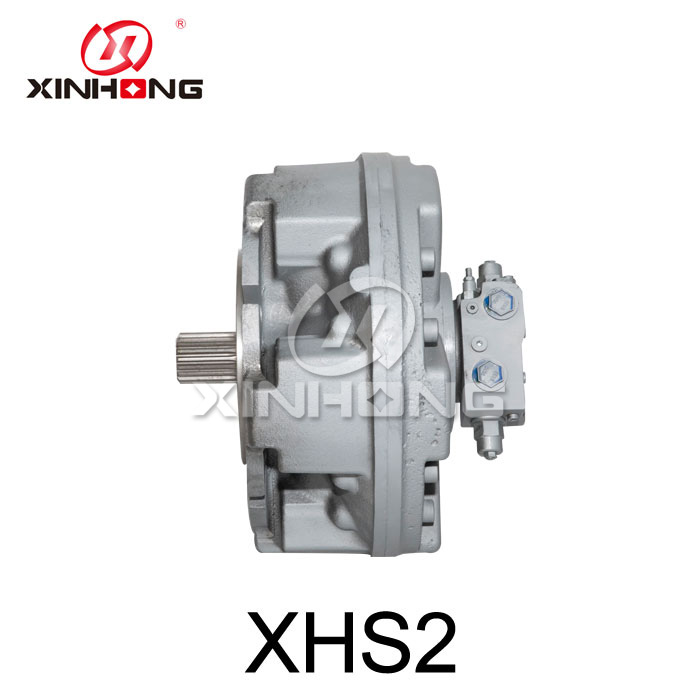

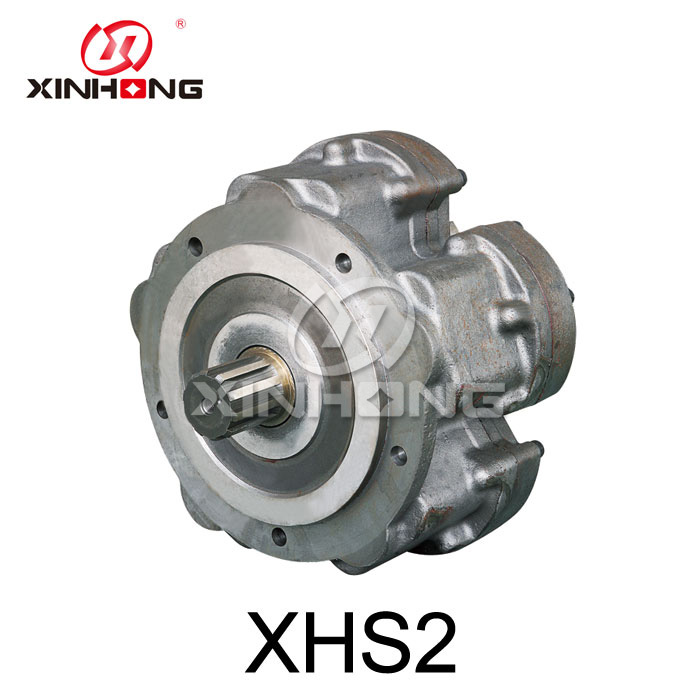

This Swivelling Radial Piston Hydraulic Motor is actuated by hydraulic oil and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.
5.Product Qualification of Swivelling Radial Piston Hydraulic Motor
Our products are certificated by ISO, CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Swivelling Radial Piston Hydraulic Motor
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
