High Torque Radial Piston Motor

We have developed and sold this high torque radial piston motor to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We are expecting to become your long-term partner in China.

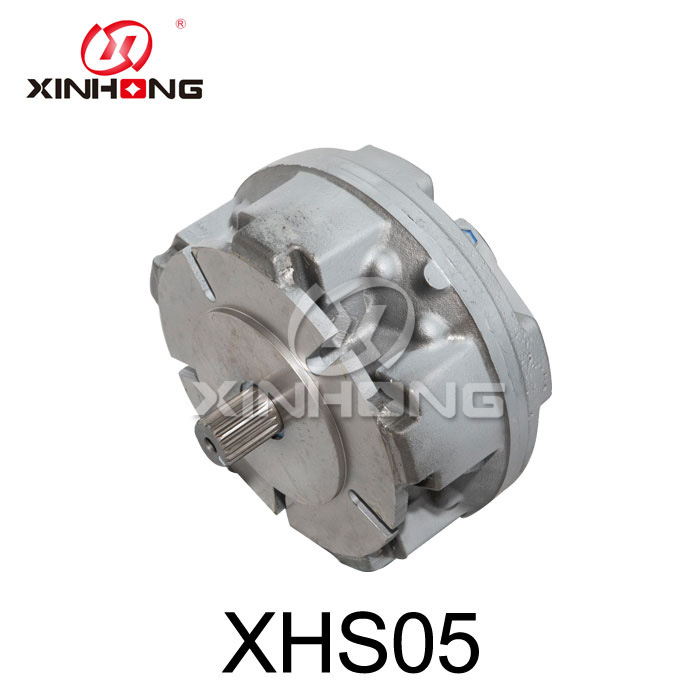

Model:XHS05

Send Inquiry

Product Description

1. Product Introduction of high torque radial piston motor

We have manufactured this high torque radial piston motor since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This high torque radial piston motor can transfer hydraulic energy to mechanical energy with high efficiency.We depend on sturdy technical force and continually create sophisticated technologies to meet the demand of Free sample for From Chinese Manufacturer Hydraulic Radial Piston Low Speed High Torque Motor Staffa Hmb Hmc Series Good Price for Sale., We sincerely welcome consumers from both at home and overseas to come to negotiate company with us. Free sample for China Hydraulic Motor, Hydraulic Motor Price, Excellent quality, competitive price, punctual delivery and dependable service can be guaranteed. For further inquires remember to do not hesitate to contact us. Thank you - Your support continuously inspires us.

High Torque Radial Piston Motor

2.Product Parameter (Specification) of high torque radial piston motor

XHS05

Unit

60

75

90

110

130

150

170

200B

Displacement

ml/r

63.4

76.9

86

115

129

150

166

190

Specific torque

Nm/MPa

10

12.2

13.6

18.2

20.5

23.8

26.3

30.2

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

33

33

33

33

33

33

33

33

Torque rating

Nm

210

260

290

385

435

505

585

675

Peak torque

Nm

250

305

345

460

515

600

700

800

Speed rating

r/min

550

550

500

500

480

480

450

400

Cont. speed

r/min

680

680

620

620

600

600

560

500

Max. speed

r/min

950

950

950

850

850

850

760

760

Weight

kg

22

22

22

22

22

22

22

22


3.Product Feature And Application

This is a fixed displacement high torque radial piston motor with high power. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4. Product Details of High Torque Radial Piston Motor

This motor is actuated by five cylinders and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5. Product Qualification of High Torque Radial Piston Motor

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of High Torque Radial Piston Motor

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
