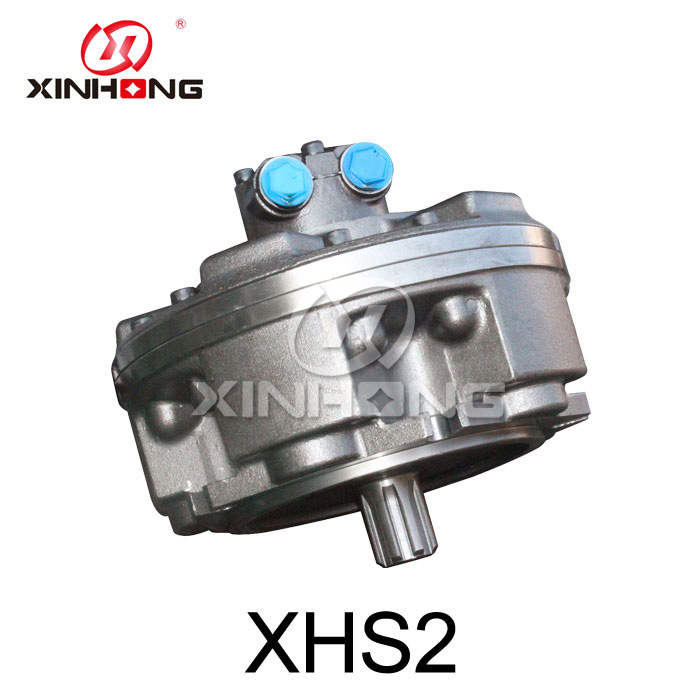

Low Leakage Radial Piston Motor with Five Cylinders

We have developed and sold this Low Leakage Radial Piston Motor with Five Cylinders to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We are expecting to become your long-term partner in China.Sincerely look forward to cooperating with you in the near future.

Model:XHS2

Send Inquiry

Product Description

1.Product Introduction of Low Leakage Radial Piston Motor with Five Cylinders

We have manufactured this Low Leakage Radial Piston Motor with Five Cylinders since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Low Leakage Radial Piston Motor with Five Cylinders can transfer hydraulic energy to mechanical energy with high efficiency. The motors also can be supplied coupled with the negative pressure hydraulic brakes.We now have quite a few superb workers customers very good at marketing and advertising, QC, and working with forms of troublesome dilemma while in the creation approach for Chinese Professional China Hydraulic Motor, Sincere cooperation along with you, altogether will develop happy tomorrow! Chinese Professional China Hydraulic Motor, Nam Hydraulic Motor, Our advanced equipment, excellent quality management, research and development ability make our price down. The price we offering may not be the lowest, but we guarantee it is absolutely competitive! Welcome to contact us immediately for future business relationship and mutual success.

Radial Piston with Eccentric Shaft Motor


2.Product Parameter (Specification) of Low Leakage Radial Piston Motor with Five Cylinders

XHS2

Unit

200

250

300

350

420

500

600B

630B

Displacement

ml/r

192

251

304

346

424

492

565

623

Specific torque

Nm/MPa

30.5

39.9

48.3

55

67.4

78.2

89.8

99

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

59

59

59

59

59

59

59

59

Torque rating

Nm

680

890

1080

1225

1505

1745

2005

2210

Peak torque

Nm

810

1060

1285

1460

1790

2075

2385

2630

Speed rating

r/min

400

400

360

360

300

280

250

220

Cont. speed

r/min

500

500

450

450

380

350

320

280

Max. speed

r/min

760

760

700

700

700

650

650

550

Weight

kg

51

51

51

51

51

51

51

51


3.Product Feature And Application

This is a fixed displacement and Low Leakage Radial Piston Motor with Five Cylinders. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Low Leakage Radial Piston Motor with Five Cylinders

This Low Leakage Radial Piston Motor with Five Cylinders is actuated by swing cylinder and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Low Leakage Radial Piston Motor with Five Cylinders

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Low Leakage Radial Piston Motor with Five Cylinders

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
