Radial Piston with Eccentric Shaft Motor

We have developed and sold this Radial Piston with Eccentric Shaft Motor to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We enjoy a reputation of quality, ethics and service. We are expecting to become your long-term partner in China.

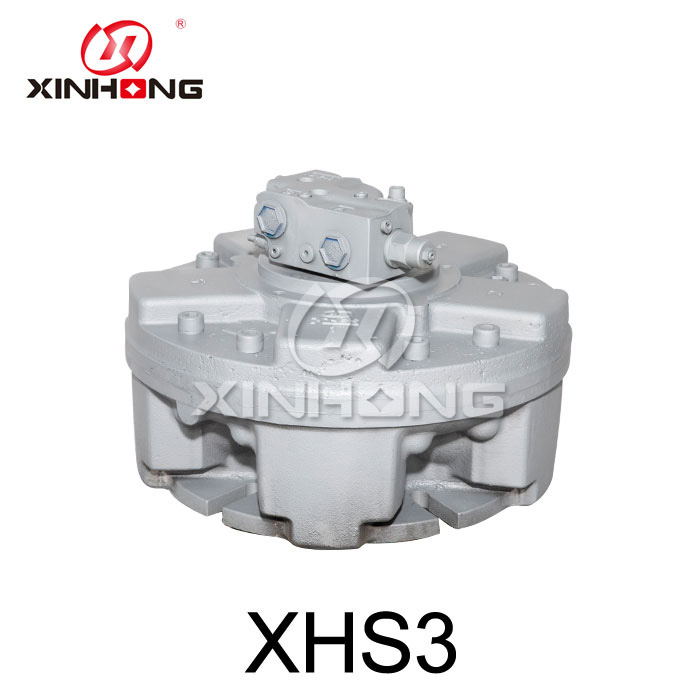

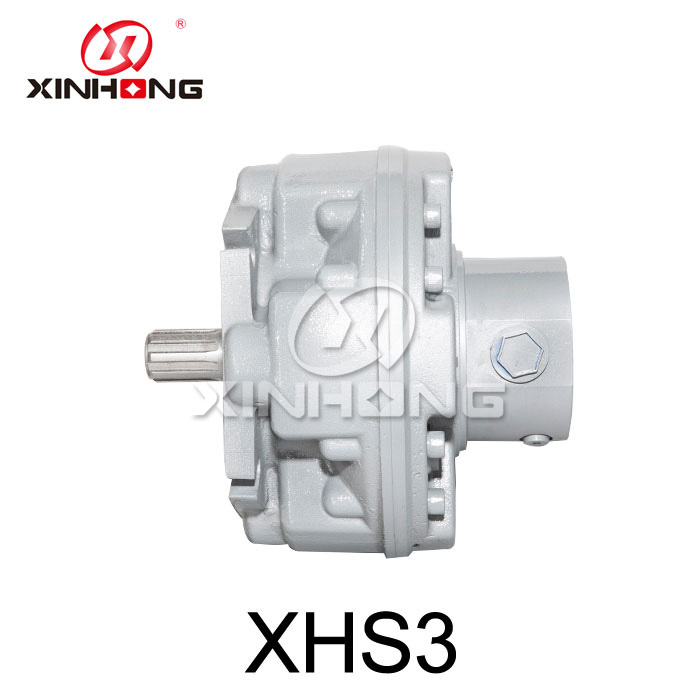

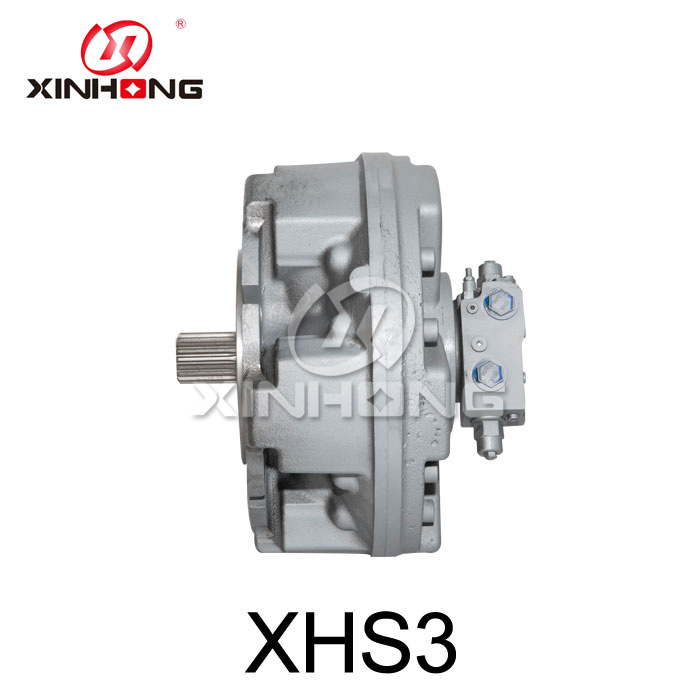

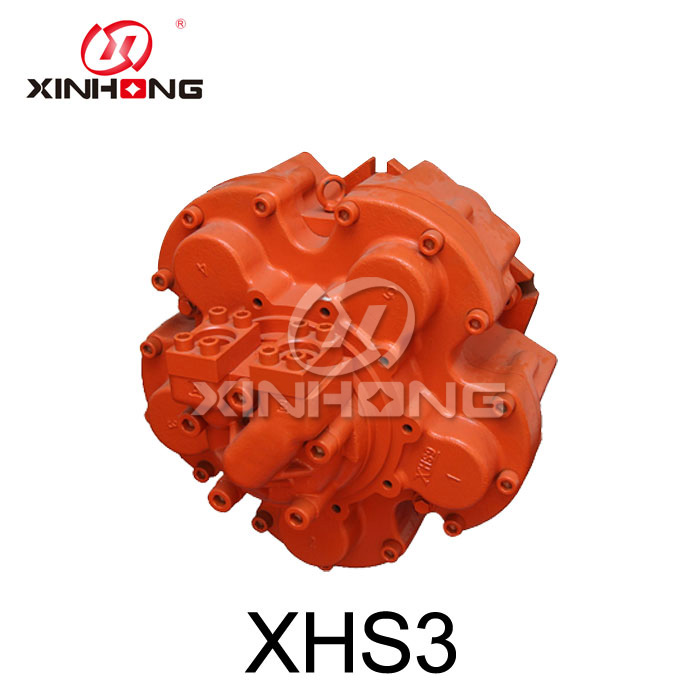

Model:XHS3

Send Inquiry

Product Description

1.Product Introduction of Radial Piston with Eccentric Shaft Motor

We have manufactured this Radial Piston with Eccentric Shaft Motor since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston with Eccentric Shaft Motor can transfer hydraulic energy to mechanical energy with high efficiency.We are convinced that with joint initiatives, the business enterprise between us will bring us mutual benefits. We can easily guarantee you merchandise good quality and aggressive price tag for One of Hottest for China Cycloid Hydraulic Motor with Low Speed and High Torque Rail Motor Is Used for Loaders and Forklifts, As we are moving ahead, we hold an eye on our ever-expanding products range and make improvement to our companies. One of Hottest for China Hydraulic Motor, Eaton Motor, Hard work to keep making progress, innovation in the industry, make every effort to first-class enterprise. We try our best to build the scientific management model, to learn abundant specialist knowledge, to develop advanced production equipment and production process , to create the first-call quality products, reasonable price , high quality of service , quick delivery , to offer you create new value .

Radial Piston with Eccentric Shaft Motor


2.Product Parameter (Specification) of Radial Piston with Eccentric Shaft Motor

XHS3

Unit

350

425

500

600

700

800

900

1000B

Displacement

ml/r

351

425

485

594

689

791

872

987

Specific torque

Nm/MPa

55.8

67.5

77.1

94.4

109

125

138

156

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

80

80

80

80

80

80

80

80

Torque rating

Nm

1245

1510

1720

2110

2475

2845

3130

3550

Peak torque

Nm

1480

1795

2050

2510

2950

3385

3730

4225

Speed rating

r/min

400

400

360

360

300

280

250

220

Cont. speed

r/min

500

500

450

450

380

350

350

280

Max. speed

r/min

650

600

550

500

450

450

380

330

Weight

kg

87

87

87

87

87

87

87

87


3.Product Feature And Application

This is a fixed displacement Radial Piston with Eccentric Shaft Motor. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Radial Piston with Eccentric Shaft Motor

This Radial Piston with Eccentric Shaft Motor is actuated by swing cylinder and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Radial Piston with Eccentric Shaft Motor

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification and test report.


6.Deliver,Shipping And Serving of Radial Piston with Eccentric Shaft Motor

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
