Radial Piston Motor with High Efficiency

We have developed and sold this Radial Piston Motor with High Efficiency to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We are expecting to become your long-term partner in China.We enjoy a reputation of quality, ethics and service.

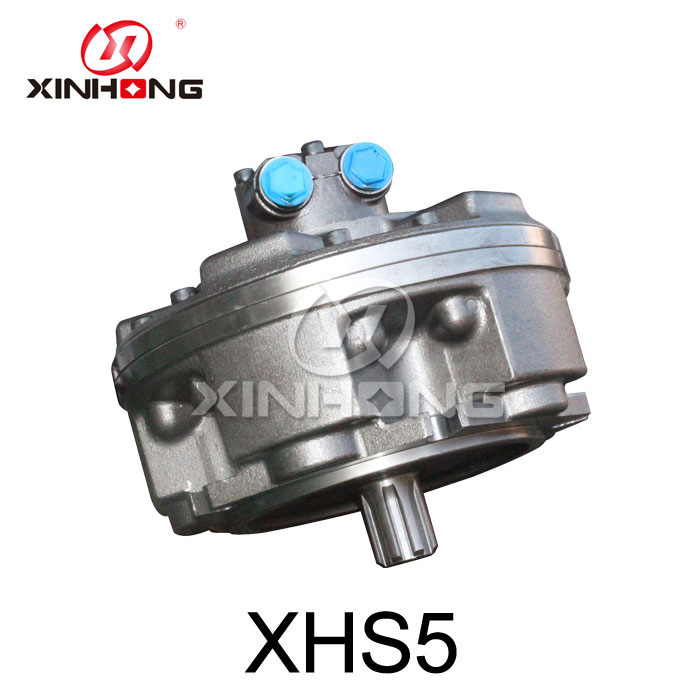

Model:XHS5

Send Inquiry

Product Description

1.Product Introduction of Radial Piston Motor with High Efficiency

We have manufactured this Radial Piston Motor with High Efficiency since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor with High Efficiency can transfer hydraulic energy to mechanical energy with high efficiency. Every request from customers is being replied within 24 hours.

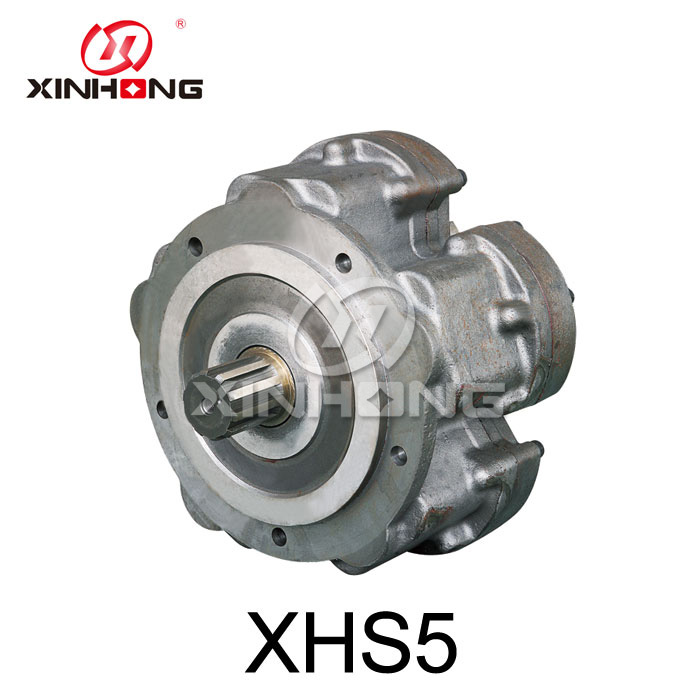

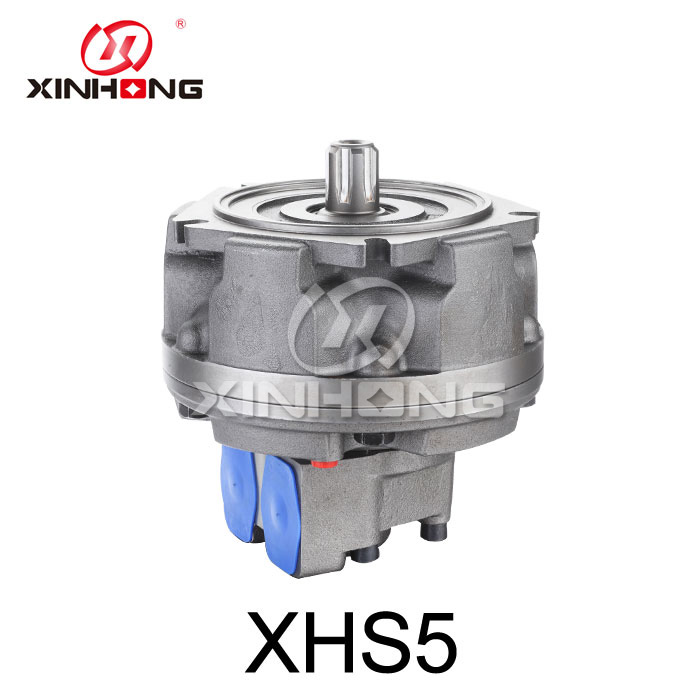

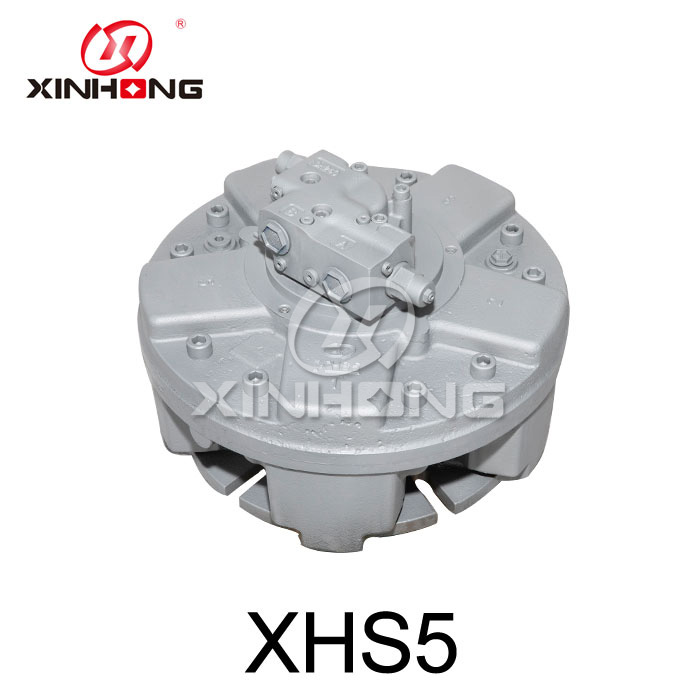

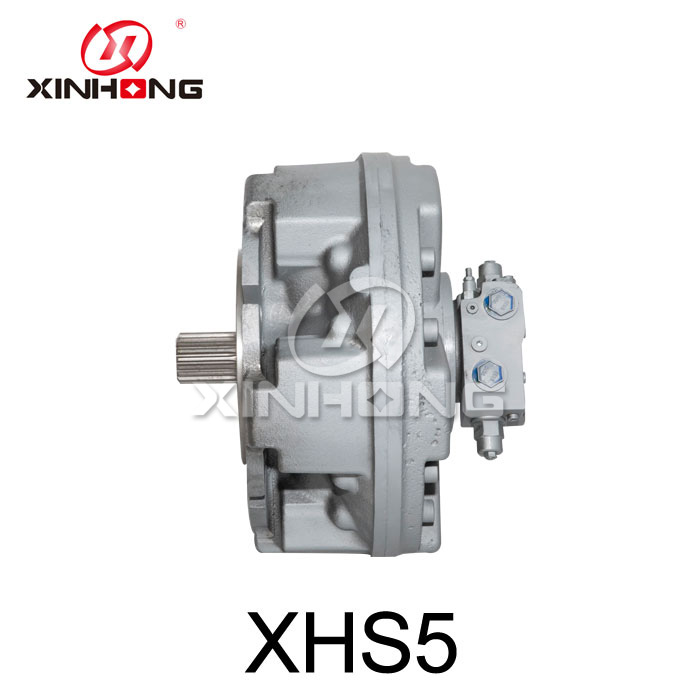

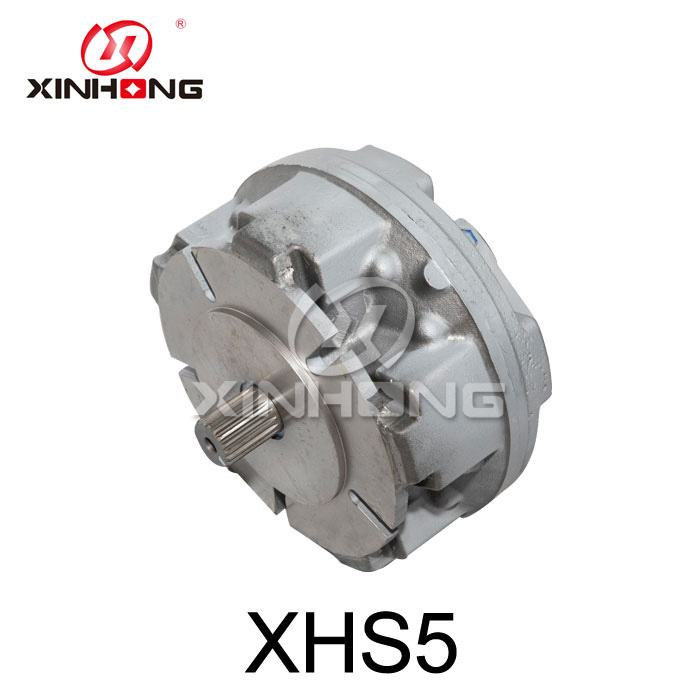

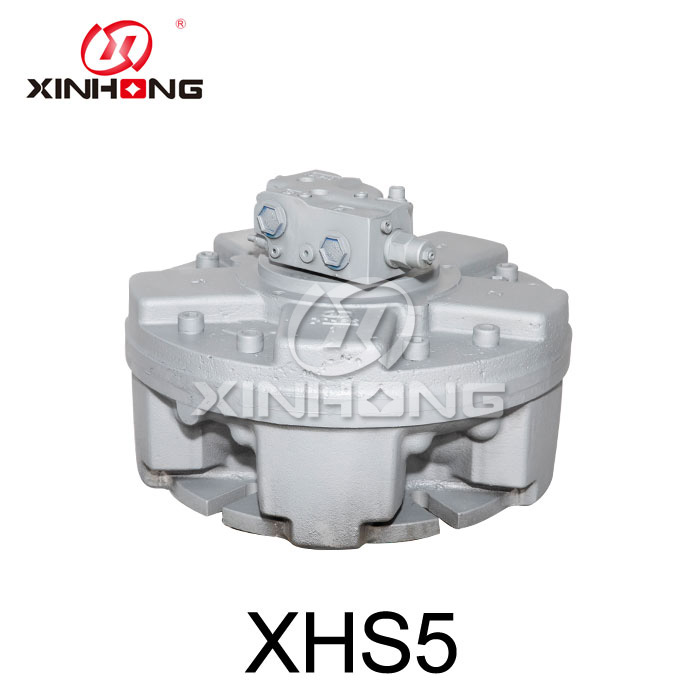

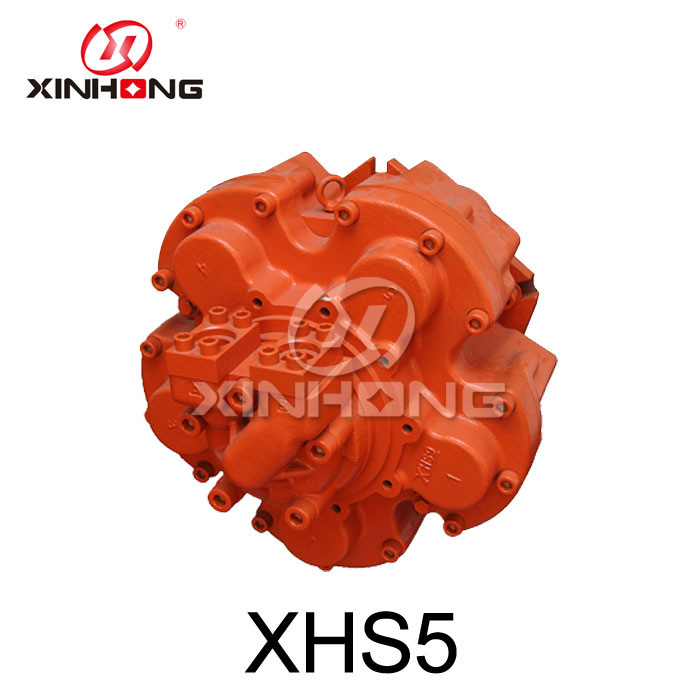

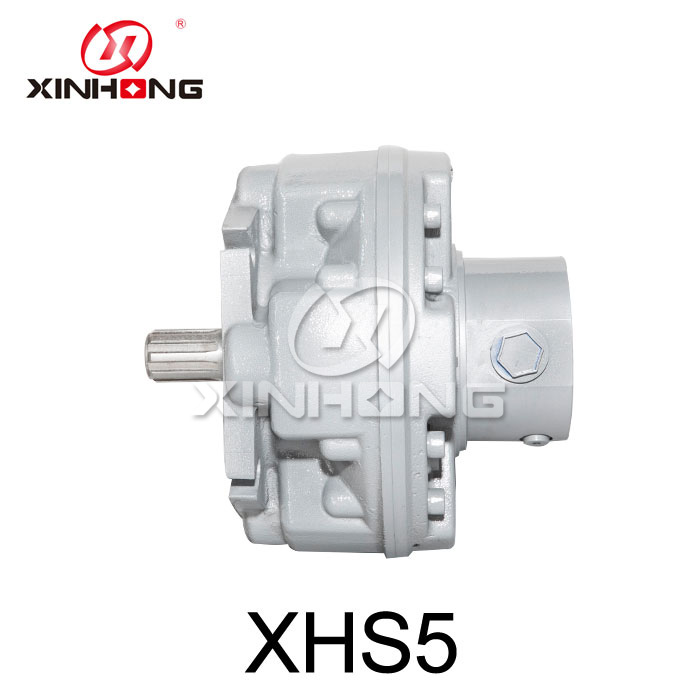

Radial Piston Motor with High Efficiency


2.Product Parameter (Specification) of Radial Piston Motor with High Efficiency

XHS5

Unit

800

1000

1200

1300

1450

1600

1800

2000

Displacement

ml/r

807

1038

1184

1339

1462

1634

1815

2006

Specific torque

Nm/MPa

128

165

188

212

232

259

288

318

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

120

120

120

120

120

120

120

120

Torque rating

Nm

2900

3730

4255

4815

5255

5875

6525

7215

Peak torque

Nm

3455

4440

5070

5730

6260

6995

7770

8590

Speed rating

r/min

290

240

230

210

190

170

150

140

Cont. speed

r/min

360

300

290

260

240

210

190

180

Max. speed

r/min

450

400

400

350

350

280

280

240

Weight

kg

175

175

175

175

175

175

175

175


3.Product Feature And Application

This is a fixed displacement Radial Piston Motor with High Efficiency. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Radial Piston Motor with High Efficiency

This Radial Piston Motor with High Efficiency is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Radial Piston Motor with High Efficiency

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Radial Piston Motor with High Efficiency

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
