We have developed and sold this High Start Torque Radial Piston Motor with Low Leakage to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We adhered to he principle of "quality is the life", to provide customers with the best quality, the most competitive prices, the first-class after-sales service.We are expecting to become your long-term partner in China.

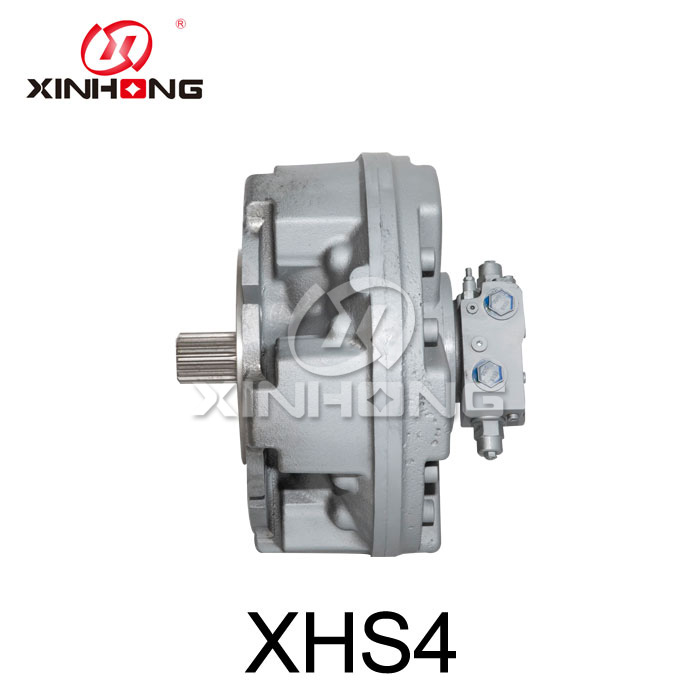

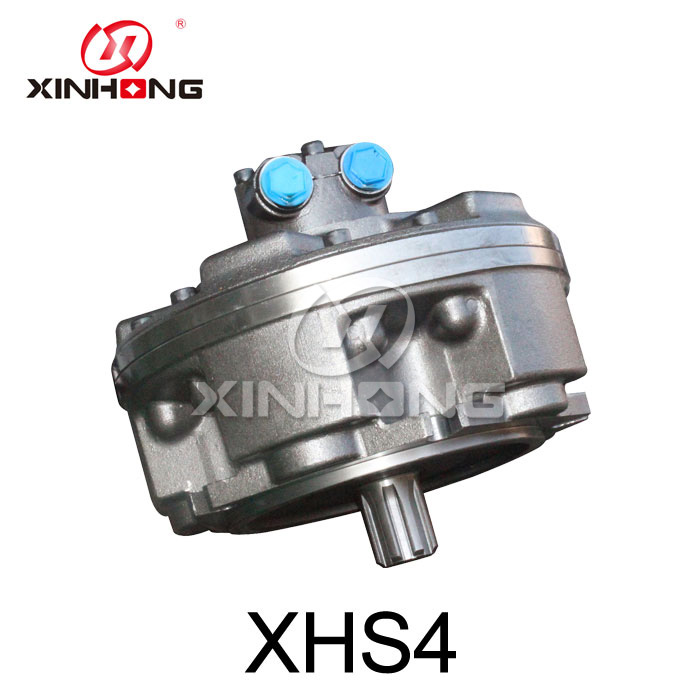

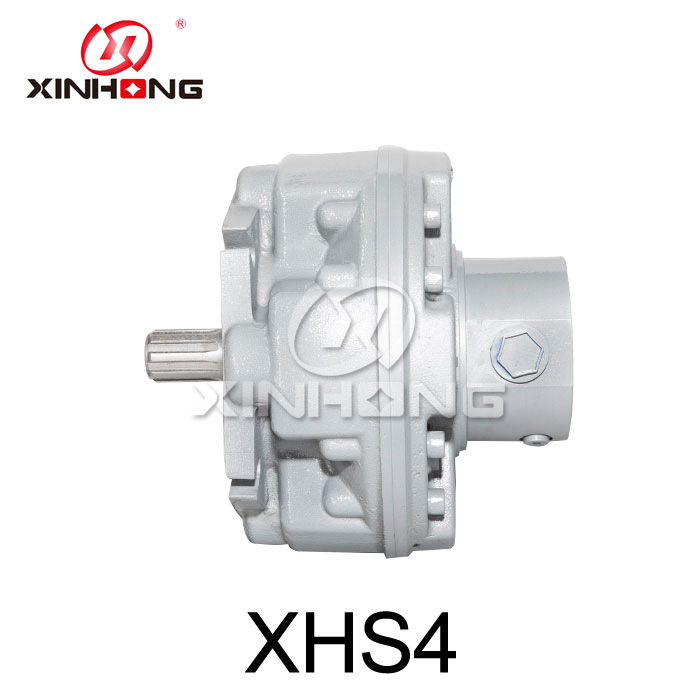

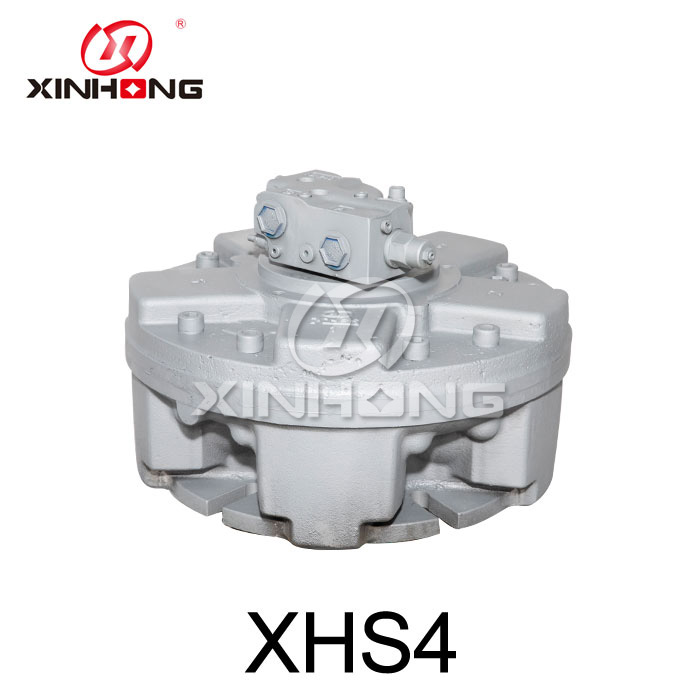

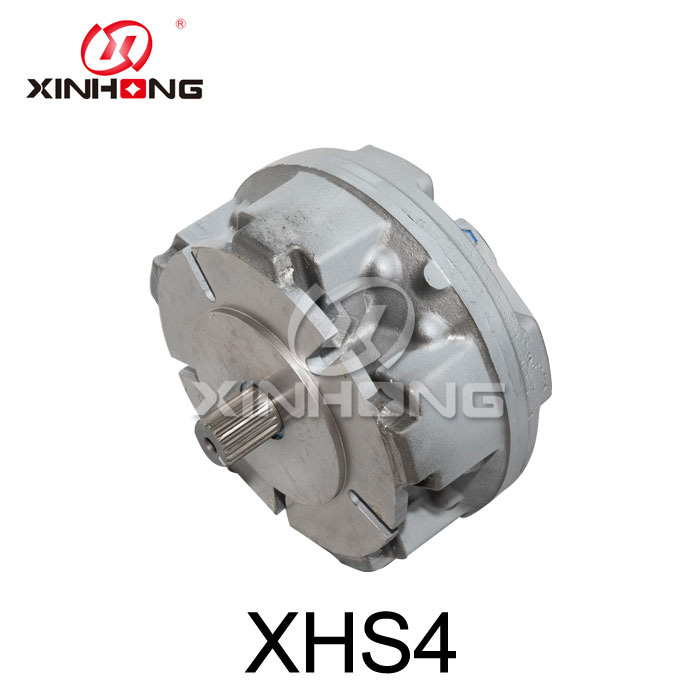

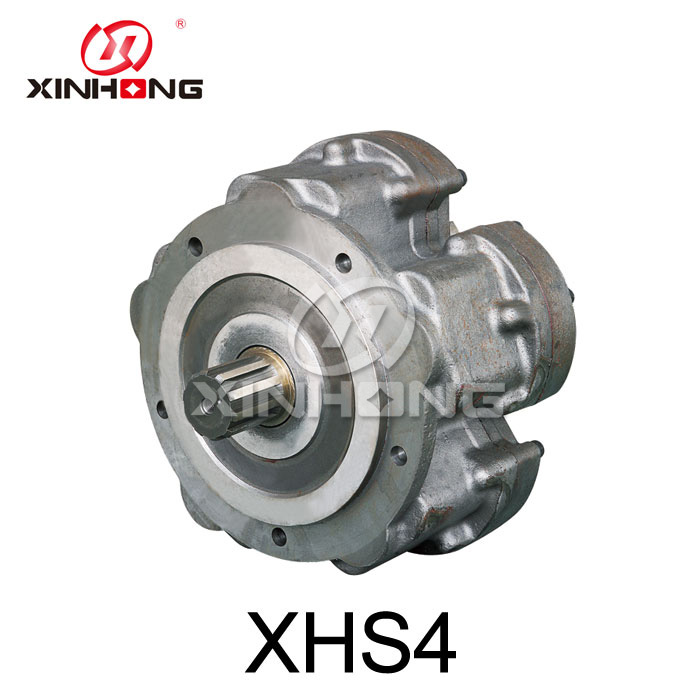

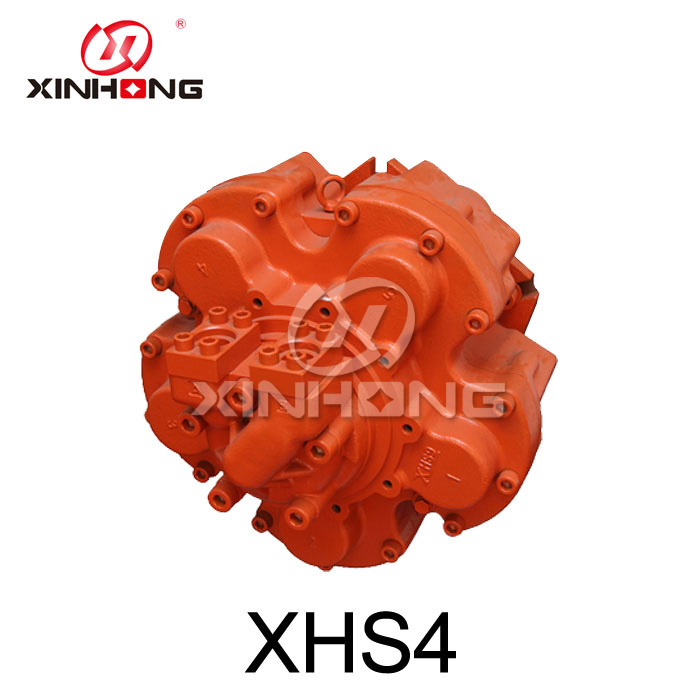

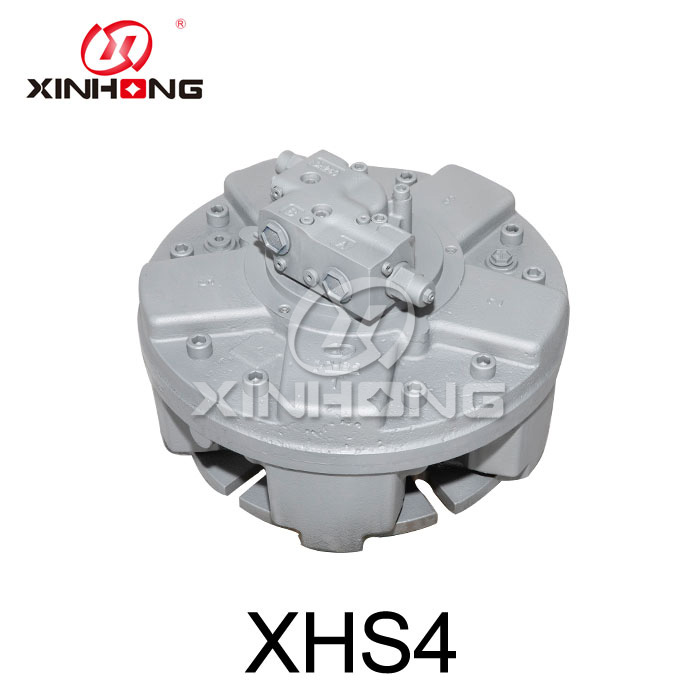

1.Product Introduction of High Start Torque Radial Piston Motor with Low Leakage
We have manufactured this High Start Torque Radial Piston Motor with Low Leakage since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This High Start Torque Radial Piston Motor with Low Leakage can transfer hydraulic energy to mechanical energy with high efficiency. Sincerely look forward to cooperating with you in the near future.High quality Very first,and Consumer Supreme is our guideline to offer the most beneficial service to our consumers.At present, we're attempting our greatest to be among the top exporters in our area to fulfill buyers far more need to have for High Quality China Price Orbital Hydraulic Drive Wheel Motor of Parker Eaton Oil Pump, We've been really aware of excellent, and have the certification.We are dedicated to provide you good quality items with affordable price. High Quality China Hydraulic, Hydraulic Motor, We have been looking forward to establishing a mutually beneficial relationship with you based on our high-quality solutions, reasonable prices and best service. We hope that our products will bring you a pleasant experience and carry a feeling of beauty.
2.Product Parameter (Specification) of High Start Torque Radial Piston Motor with Low Leakage
|
XHS4 |
Unit |
500 |
600 |
800 |
900 |
1000 |
1100 |
1250B |
1300B |
|
Displacement |
ml/r |
503 |
615 |
792 |
904 |
1022 |
1116 |
1247 |
1315 |
|
Specific torque |
Nm/MPa |
79.9 |
97.7 |
125 |
143 |
162 |
177 |
198 |
209 |
|
Pressure rating |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Peak pressure |
MPa |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
|
Peak power |
kW |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Torque rating |
Nm |
1785 |
2185 |
2845 |
3250 |
3675 |
4010 |
4485 |
4730 |
|
Peak torque |
Nm |
2125 |
2595 |
3390 |
3870 |
4375 |
4775 |
5335 |
5630 |
|
Speed rating |
r/min |
400 |
400 |
360 |
320 |
270 |
240 |
220 |
190 |
|
Cont. speed |
r/min |
500 |
500 |
450 |
400 |
340 |
300 |
280 |
240 |
|
Max. speed |
r/min |
550 |
500 |
500 |
420 |
380 |
380 |
380 |
330 |
|
Weight |
kg |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
3.Product Feature And Application
This is a fixed displacement High Start Torque Radial Piston Motor with Low Leakage. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.
4.Product Details of High Start Torque Radial Piston Motor with Low Leakage
This High Start Torque Radial Piston Motor with Low Leakage is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.
5.Product Qualification of High Start Torque Radial Piston Motor with Low Leakage
Our products are certificated by ISO, CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of High Start Torque Radial Piston Motor with Low Leakage
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
