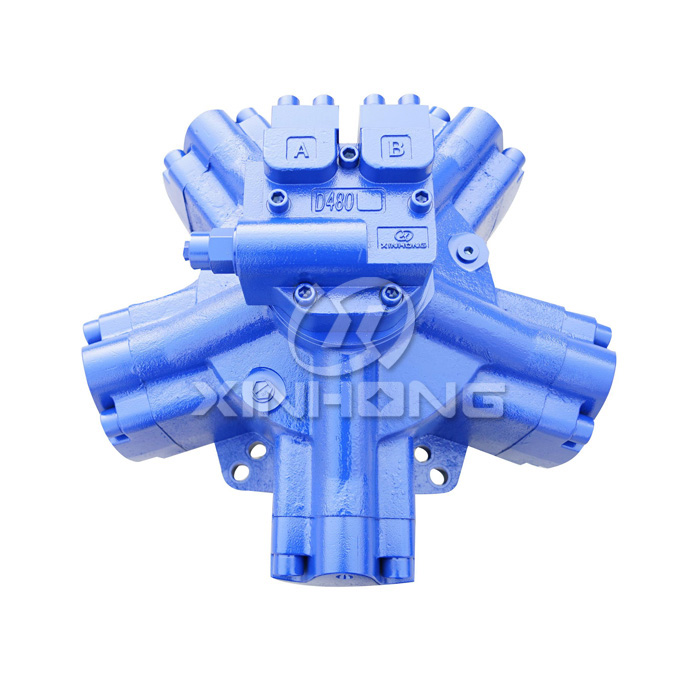

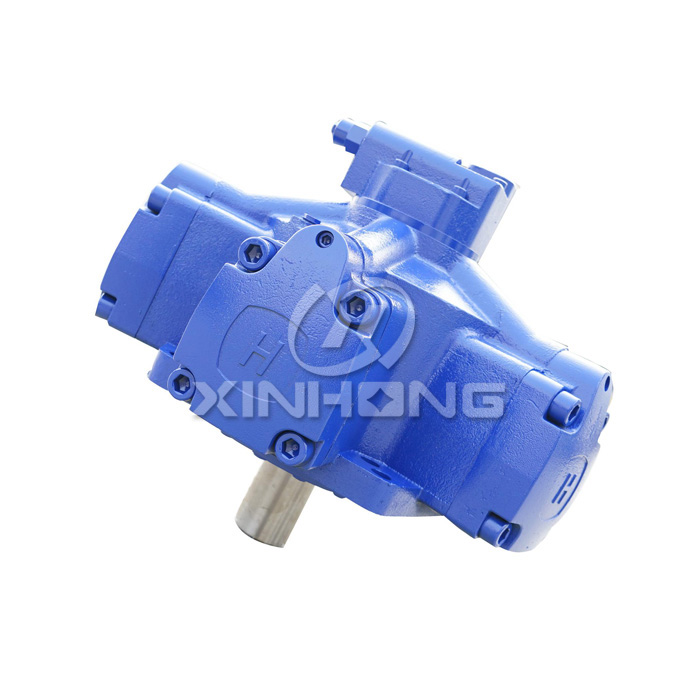

Radial Piston Motor for Rotary Device
  • Radial Piston Motor for Rotary DeviceRadial Piston Motor for Rotary Device
  • Radial Piston Motor for Rotary DeviceRadial Piston Motor for Rotary Device

Radial Piston Motor for Rotary Device

We have developed and sold this Radial Piston Motor for Rotary Device to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Radial Piston Motor for Rotary Device from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Radial Piston Motor for Rotary Device

We have manufactured this Radial Piston Motor for Rotary Device since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor for Rotary Device can transfer hydraulic energy to mechanical energy with high efficiency.

Radial Piston Motor for Rotary Device


2.Product Parameter (Specification) of Radial Piston Motor for Rotary Device

XHM31

Unit

31-2500

31-2800

31-3000

31-3150

31-3500

16-4000

31-4500

31-5000

Displacement

ml/r

2553

2683

3063

3218

3462

4155

4524

4828

Pressure rating

MPa

25

25

20

20

20

20

20

16

Peak pressure

MPa

32

32

25

25

25

25

25

20

Torque rating

Nm

9523

10559

9135

9392

10220

12481

13508

12387

Specific torque

Nm/MPa

405

443

485

500

544

665

720

825

Max Power

Kw

110

110

110

110

110

110

110

110

Max. speed

r/min

120

120

120

120

120

110

110

110

Weight

kg

298

298

298

298

298

298

298

298


3.Product Feature And Application

This is a fixed displacement and Radial Piston Motor for Rotary Device. This Radial Piston Motor for Rotary Device has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Radial Piston Motor for Rotary Device

This Radial Piston Motor for Rotary Device is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Radial Piston Motor for Rotary Device

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Radial Piston Motor for Rotary Device

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
