Low Speed High Torque Piston Motor

We have developed and sold this Low Speed High Torque Piston Motor to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. As the professional manufacture, we would like to provide you Low Speed High Torque Piston Motor. And we will offer you the best after-sale service and timely delivery.

Model:XHM3

Send Inquiry

Product Description

1.Product Introduction of Low Speed High Torque Piston Motor

We have manufactured this Low Speed High Torque Piston Motor since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Low Speed High Torque Piston Motor can transfer hydraulic energy to mechanical energy with high efficiency.Dependable high-quality and fantastic credit standing are our principles, which will help us at a top-ranking position. Adhering to your tenet of "quality very first, client supreme" for Cheapest Price China Radial Piston Motor Low Speed High Torque Motor High Pressure, We sincerely welcome overseas customers to consult for the long-term cooperation and the mutual development. Cheapest Price China Motor, Hydraulic Motor, We have now more than 100 works in the plant, and we also have a 15 guys work team to service our customers for before and after sales. Good quality is the key factor for the company to stand out from other competitors. Seeing is Believing, want more information? Just trial on its goods.

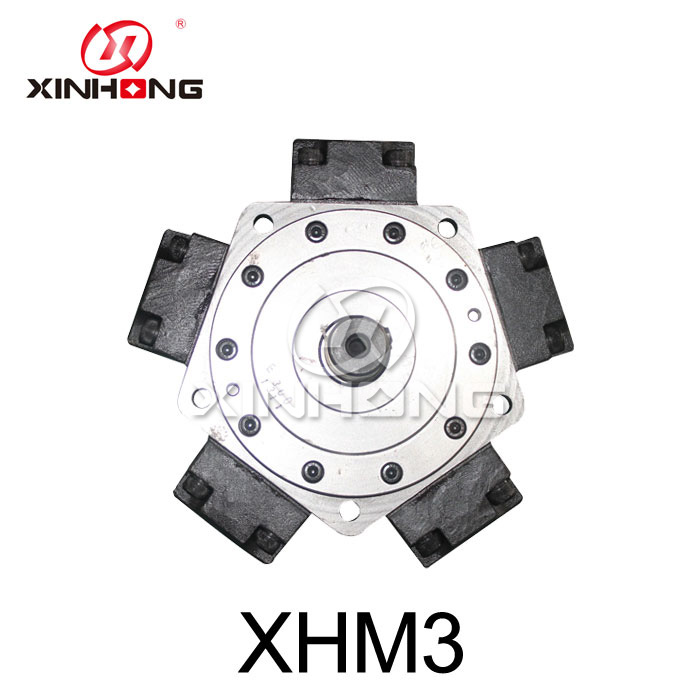

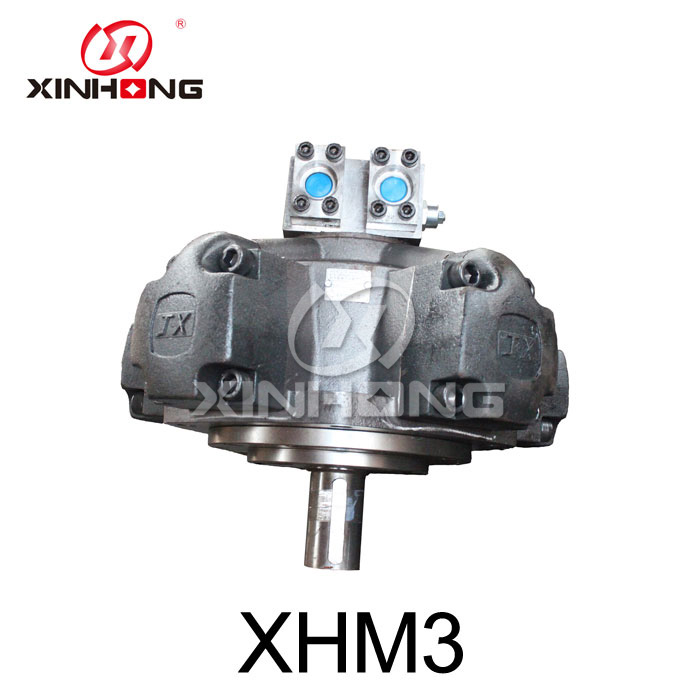

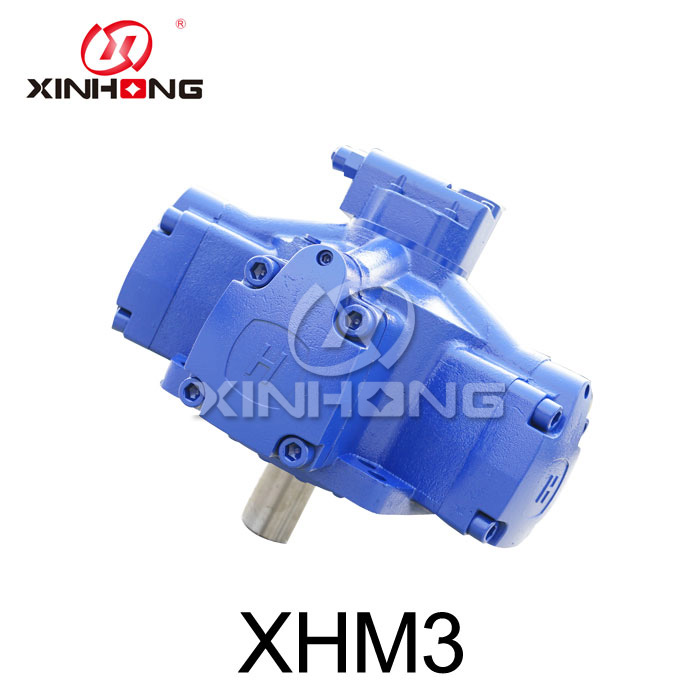

Low Speed High Torque Piston Motor


2.Product Parameter (Specification) of Low Speed High Torque Piston Motor

XHM3

Unit

3-175

3-200

3-250

3-300

3-350

3-400

Displacement

ml/r

181

201

250

289

339

403

Pressure rating

MPa

20

20

20

20

16

16

Peak pressure

MPa

30

30

30

30

25

25

Torque rating

Nm

578

640

810

920

864

1027

Specific torque

Nm/MPa

29

32

40

46

54

64

Max Power

Kw

36

36

36

36

36

36

Max. speed

r/min

800

700

600

500

420

350

Weight

kg

35

35

35

35

35

35


3.Product Feature And Application

This is a fixed displacement and Low Speed High Torque Piston Motor. This Low Speed High Torque Piston Motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Low Speed High Torque Piston Motor

This Low Speed High Torque Piston Motor is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Low Speed High Torque Piston Motor

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Low Speed High Torque Piston Motor

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
