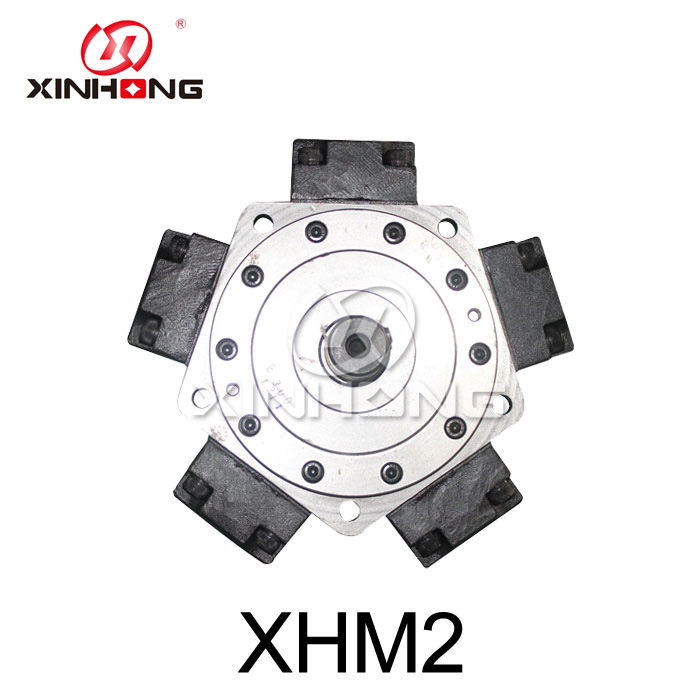

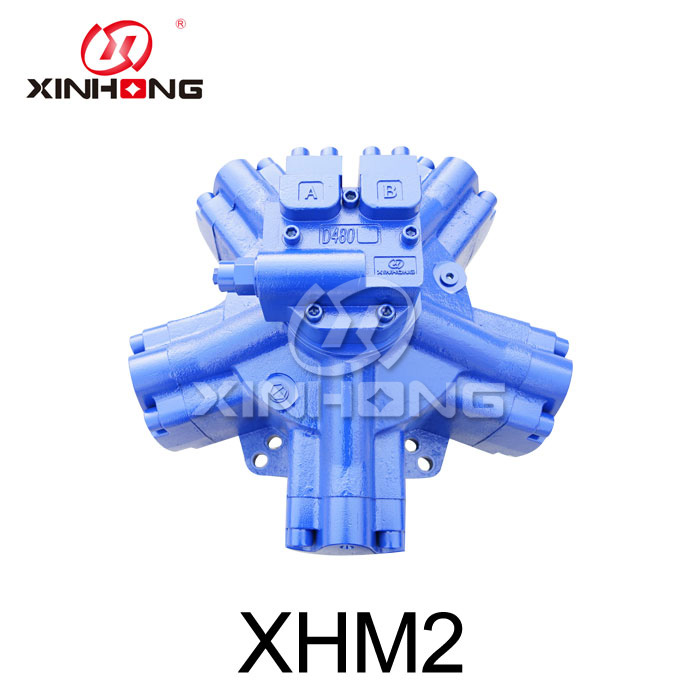

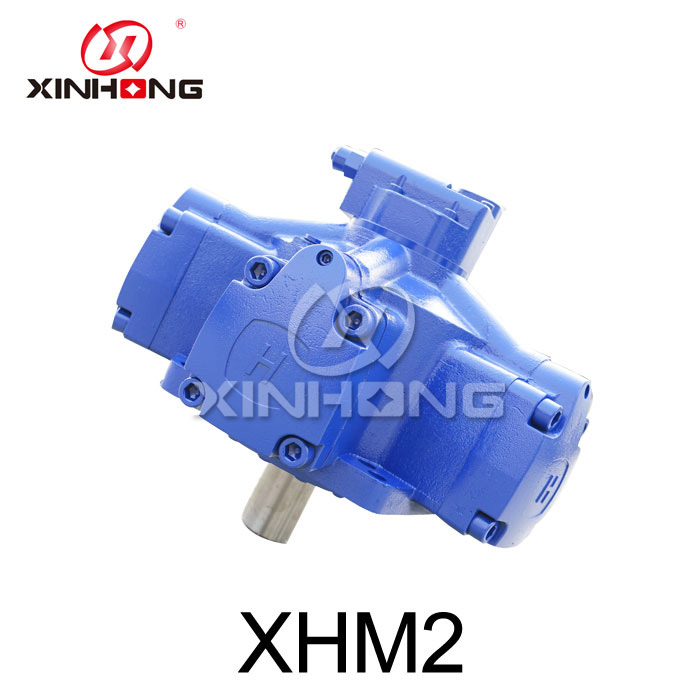

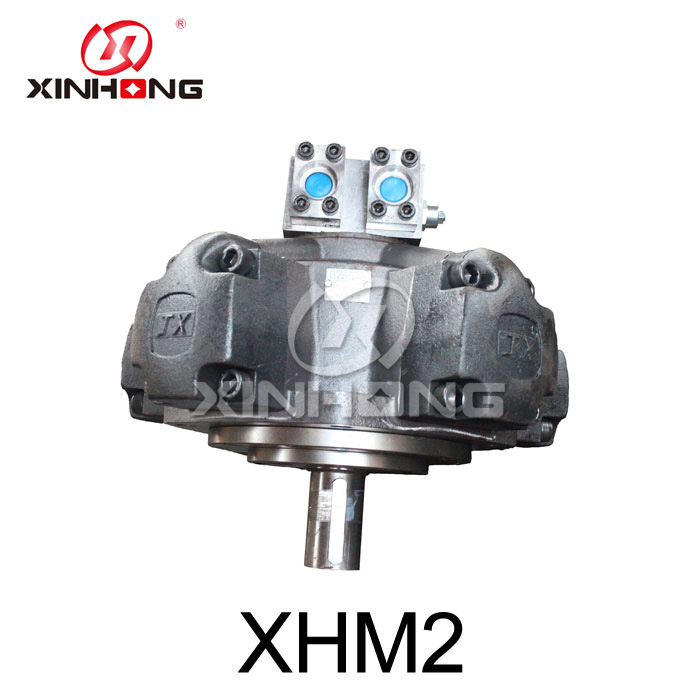

Radial Piston Motor with High Mechanical Efficiency

We have developed and sold this Radial Piston Motor with High Mechanical Efficiency to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Sincerely look forward to cooperating with you in the near future.

Model:XHM2

Send Inquiry

Product Description

1.Product Introduction of Radial Piston Motor with High Mechanical Efficiency

We have manufactured this Radial Piston Motor with High Mechanical Efficiency since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor with High Mechanical Efficiency can transfer hydraulic energy to mechanical energy with high efficiency.Assume full accountability to meet all requires of our purchasers; realize continual advancements by selling the advancement of our customers; grow to be the final permanent cooperative partner of consumers and maximize the interests of clientele for China wholesale China Orbit Hydraulic Motor Bmsy for Road Industrial Mechanical Street Sweepers, We've been usually looking ahead to forming profitable company interactions with new clientele within the earth. China wholesale China Hydraulic Pump, Hydraulic Motor, We always hold on the company's principle "honest, experienced, effective and innovation", and missions of: let all drivers enjoy their driving at night, let our employees can realize their value of life, and to be stronger and service more people. We're determined to become the integrator of our product market and one-stop service provider of our product market.

Radial Piston Motor with High Mechanical Efficiency


2.Product Parameter (Specification) of Radial Piston Motor with High Mechanical Efficiency

XHM2

Unit

2-125

2-150

2-175

2-200

2-250

2-280

2-300

Displacement

ml/r

124

151

180

206

276

276

318

Pressure rating

MPa

20

20

20

20

20

20

20

Peak pressure

MPa

28

28

25

25

25

24

24

Torque rating

Nm

394

480

457

523

608

702

809

Specific torque

Nm/MPa

20

24

29

33

38

44

51

Max Power

Kw

22

22

22

22

22

22

22

Max. speed

r/min

700

600

600

550

500

450

400

Weight

kg

27

27

27

27

27

27

27


3.Product Feature And Application

This is a fixed displacement and Radial Piston Motor with High Mechanical Efficiency. This Radial Piston Motor with High Mechanical Efficiency has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Radial Piston Motor with High Mechanical Efficiency

This Radial Piston Motor with High Mechanical Efficiency is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Radial Piston Motor with High Mechanical Efficiency

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Radial Piston Motor with High Mechanical Efficiency

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
