Hydraulic Planetary Gearbox

We have developed and sold this Hydraulic Planetary Gearbox to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hydraulic Planetary Gearbox from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Hydraulic Planetary Gearbox

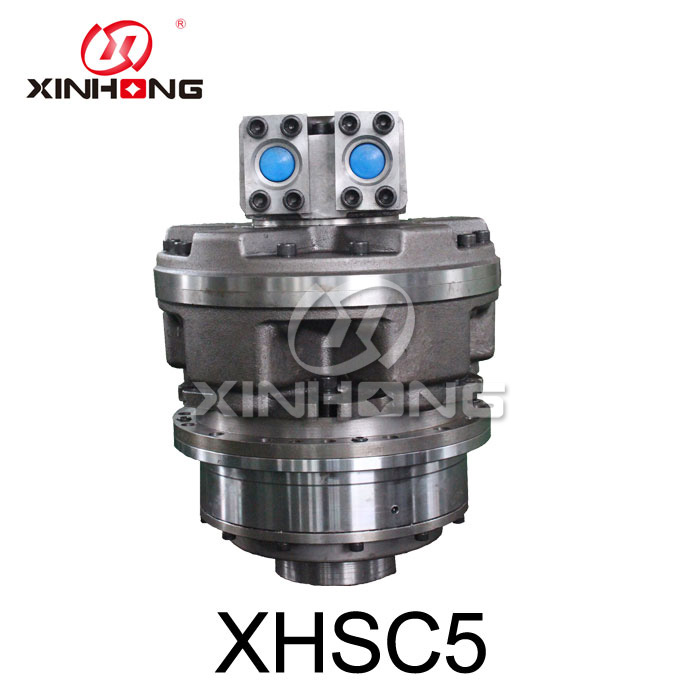

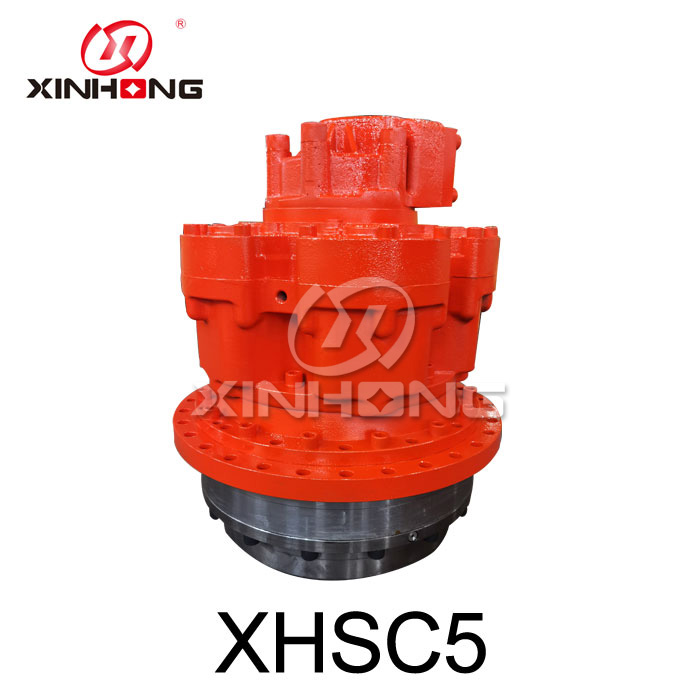

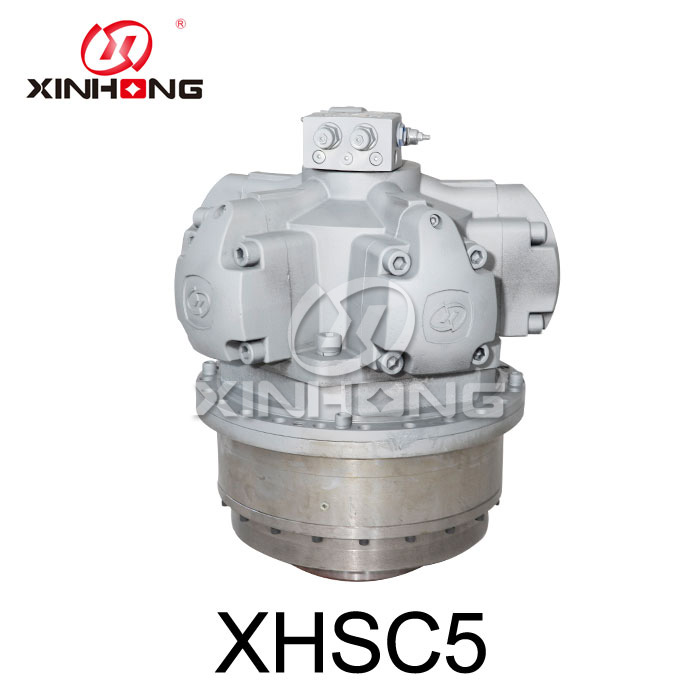

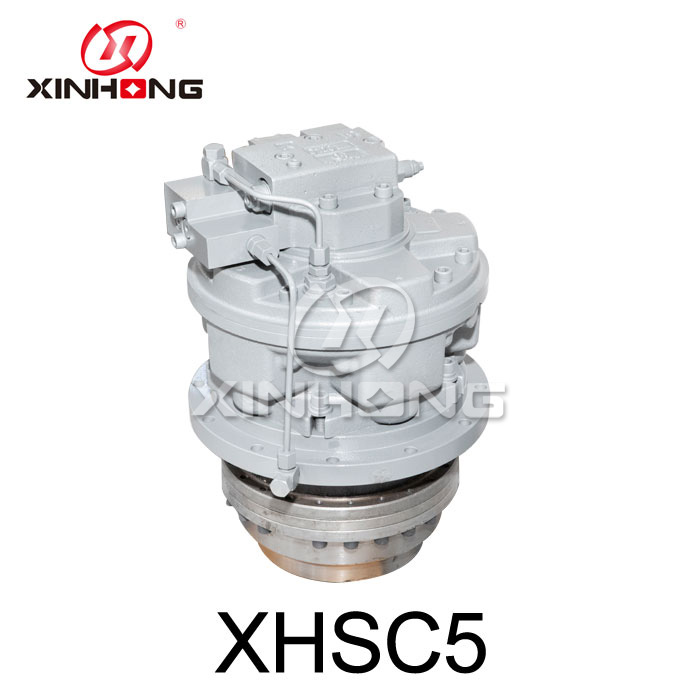

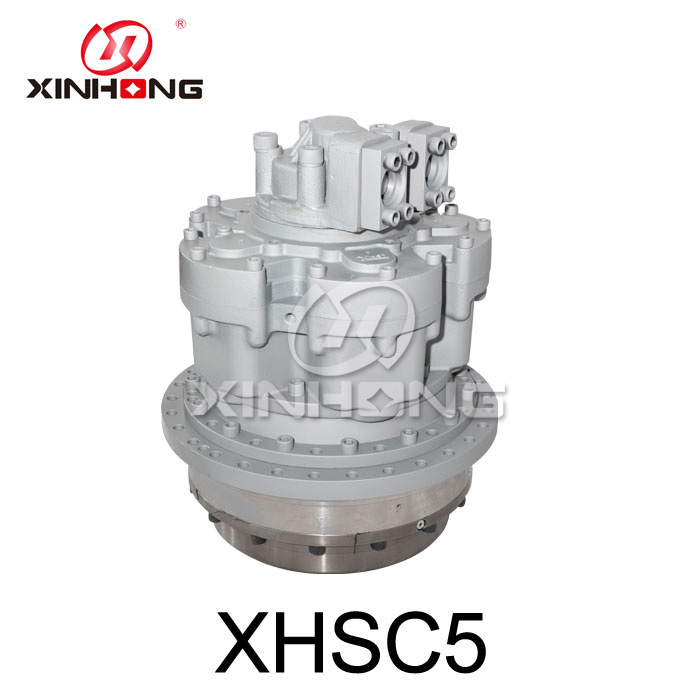

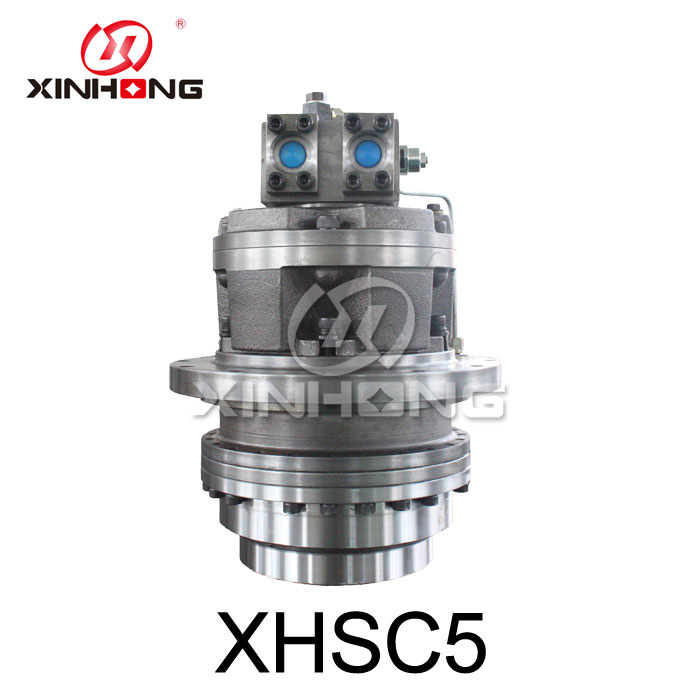

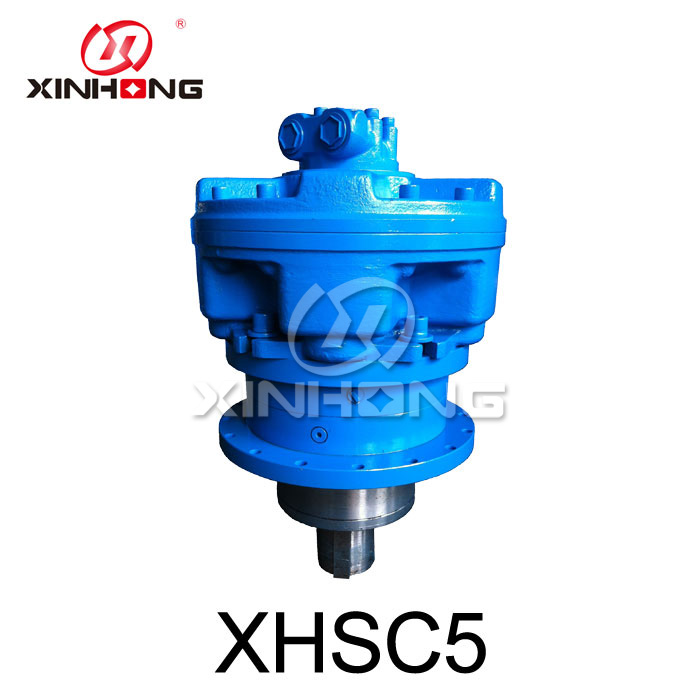

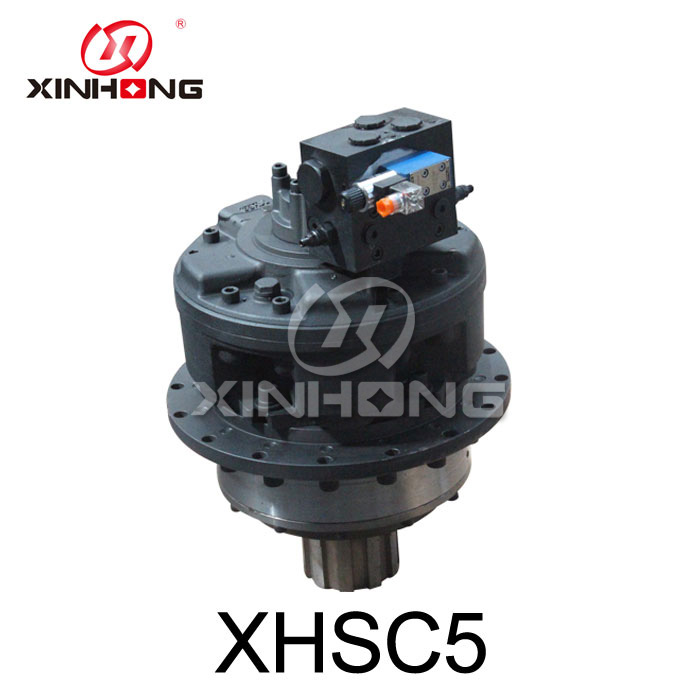

We have manufactured this Hydraulic Planetary Gearbox since 2006. We have a plenty of experience and advanced equipment in manufacturing Hydraulic Planetary Gearbox with the precisely helical teeth and balanced sun-gear shaft. This Hydraulic Planetary Gearbox can transfer power from hydraulic motor to winch or rotatory machine.


2.Product Parameter (Specification) of Hydraulic Planetary Gearbox

Model

Total Displacement(ml/r)

Rated torque(N.M)

Speed

(r/min)

Total

(efficency)

Hydraulic motor model

Planetary reducer model

Brake model

20Mpa

XHSC5-5200

5159

14596

0-70

0.9-0.91

XHS5-1000

C5-5

XHZ5

XHSC5-5700

5714

16056

0-65

0.9-0.91

XHS5-1000

C5-5.5

XHZ5

XHSC5-6000

5925

16742

0-70

0.9-0.91

XHS5-1200

C5-5

XHZ5

XHSC5-6700

6700

18915

0-70

0.9-0.91

XHS5-1300

C5-5

XHZ5

XHSC5-7300

7310

20634

0-70

0.9-0.91

XHS5-1450

C5-5

XHZ5

XHSC5-8150

8170

22987

0-70

0.9-0.91

XHS5-1600

C5-5

XHZ5

XHSC5-9000

9080

25612

0-70

0.9-0.91

XHS5-1800

C5-5

XHZ5

XHSC5-10000

9988

28173

0-60

0.9-0.91

XHS5-1800

C5-5.5

XHZ5

XHSC5-11000

11039

31159

0-50

0.9-0.91

XHS5-2000

C5-5.5

XHZ5


3.Product Feature And Application

This Hydraulic Planetary Gearbox includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Hydraulic Planetary Gearbox can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Hydraulic Planetary Gearbox is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.


4.Product Details of Hydraulic Planetary Gearbox

Our Hydraulic Planetary Gearbox has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Hydraulic Planetary Gearbox boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.


5.Product Qualification of Hydraulic Planetary Gearbox

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Hydraulic Planetary Gearbox

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
