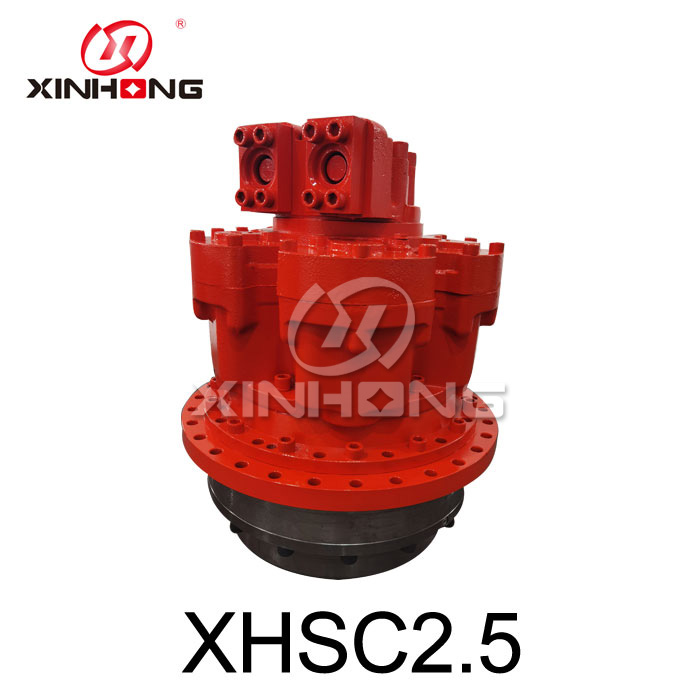

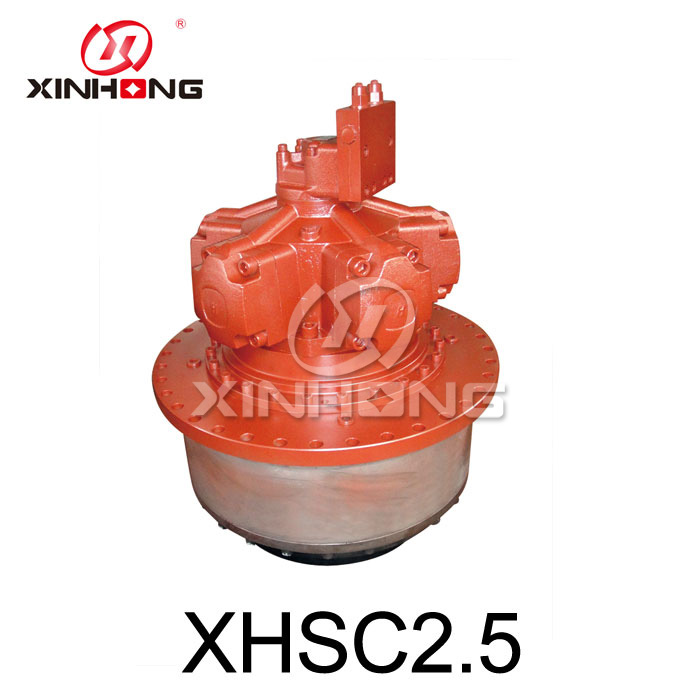

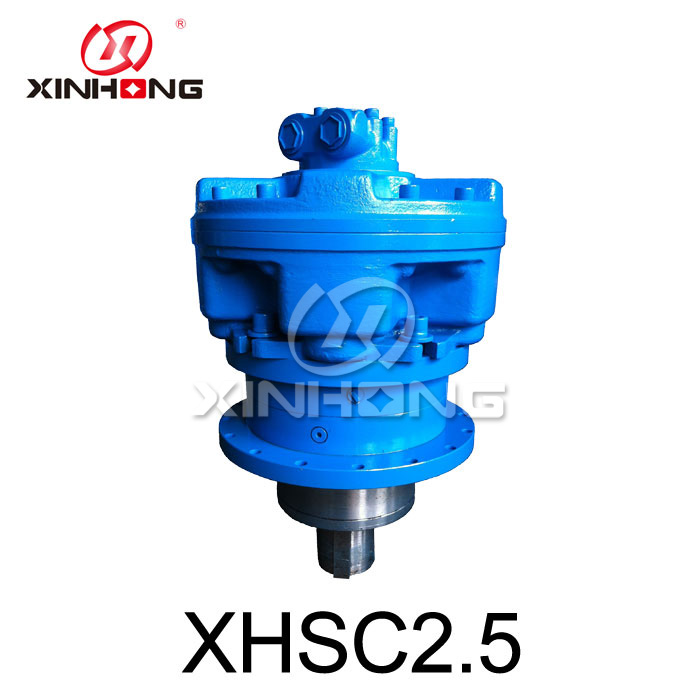

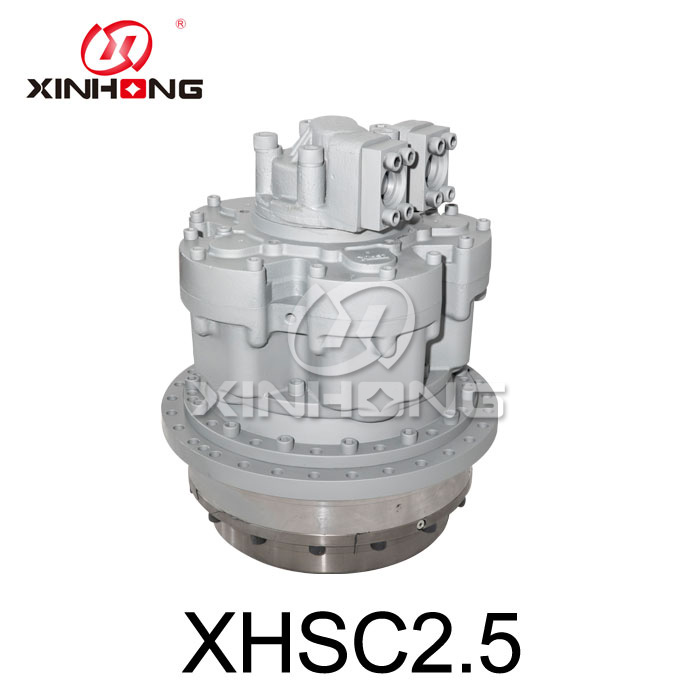

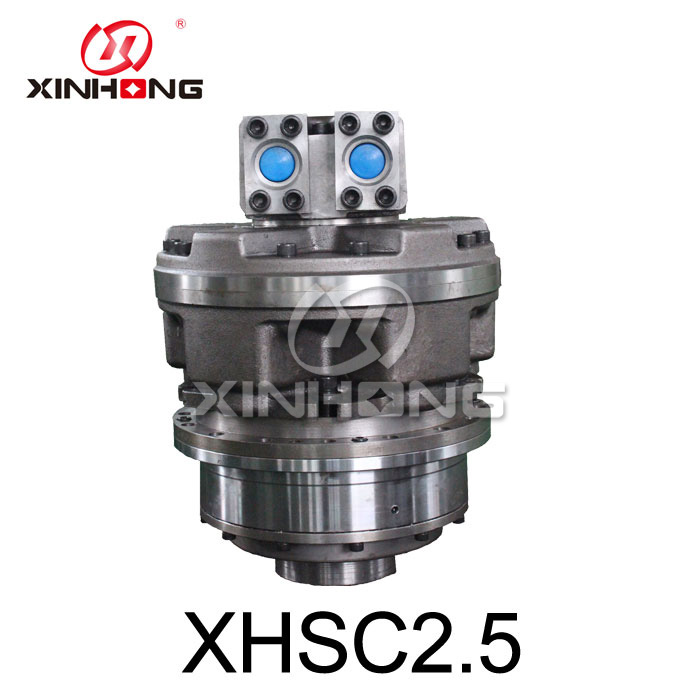

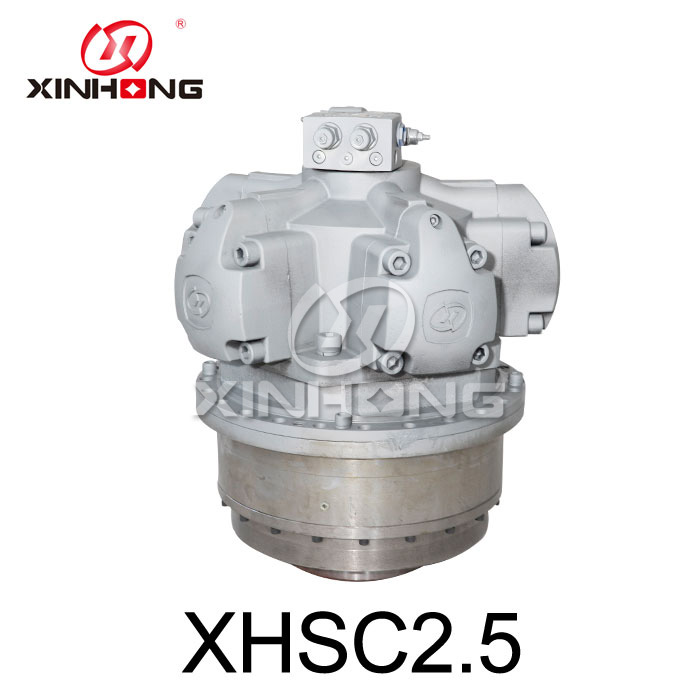

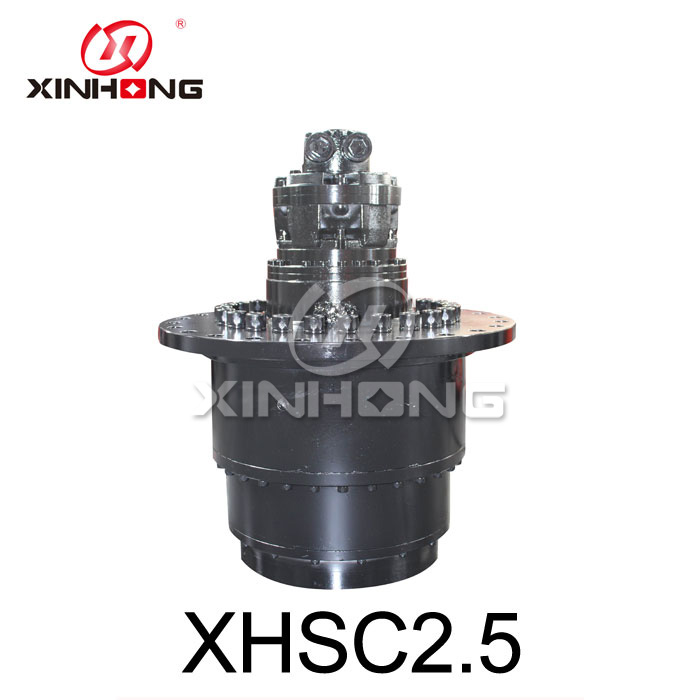

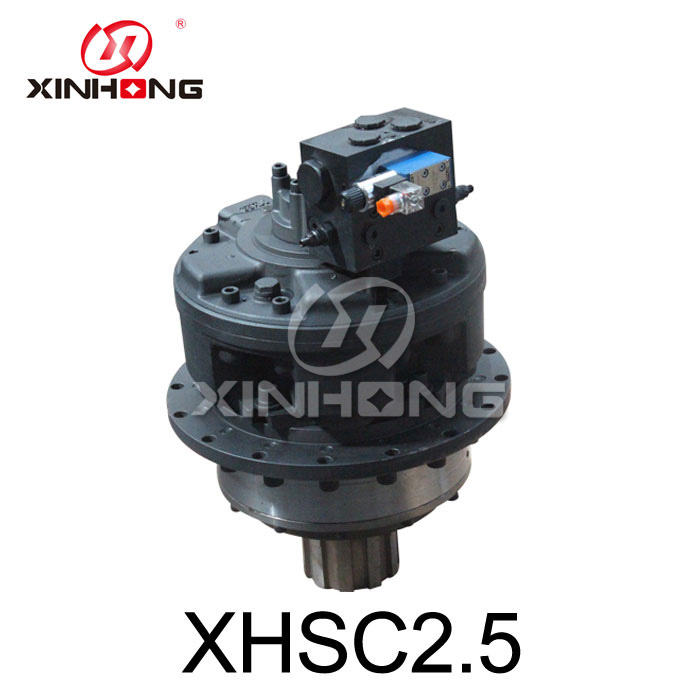

Hydraulic Gearbox

We have developed and sold this Hydraulic Gearbox to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hydraulic Gearbox from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Hydraulic Gearbox

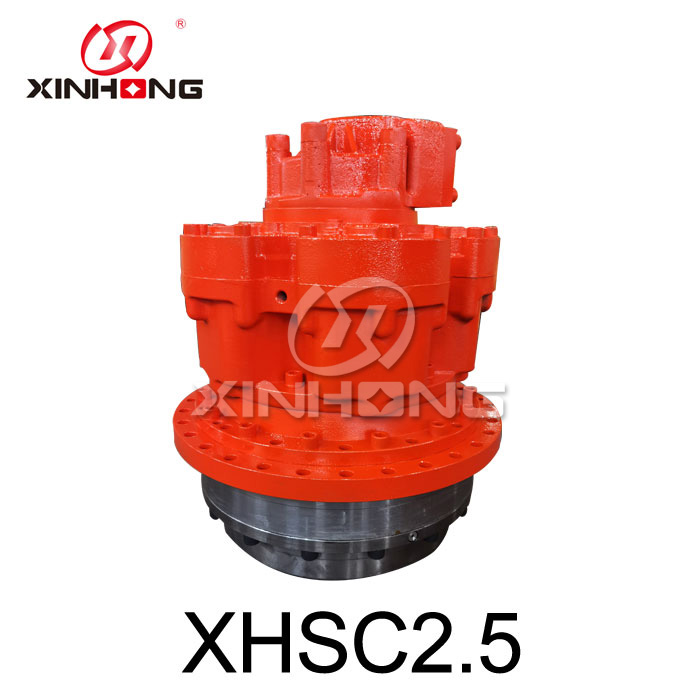

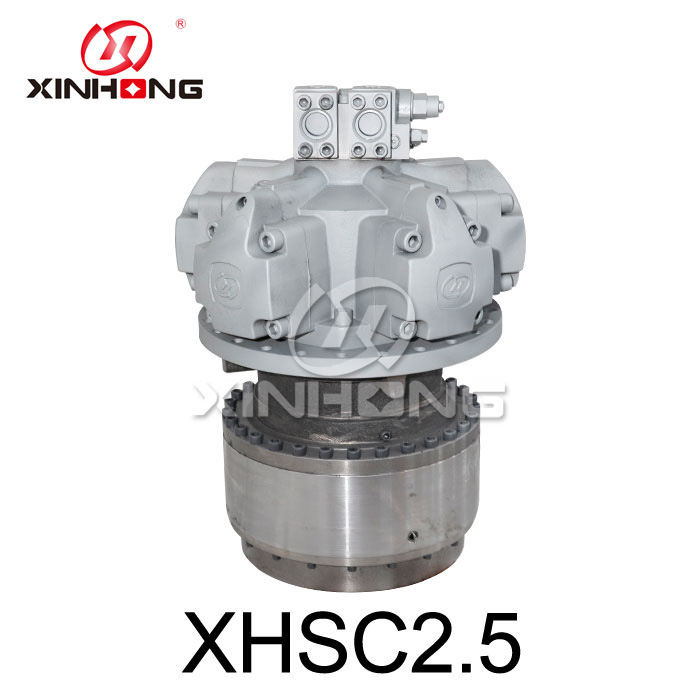

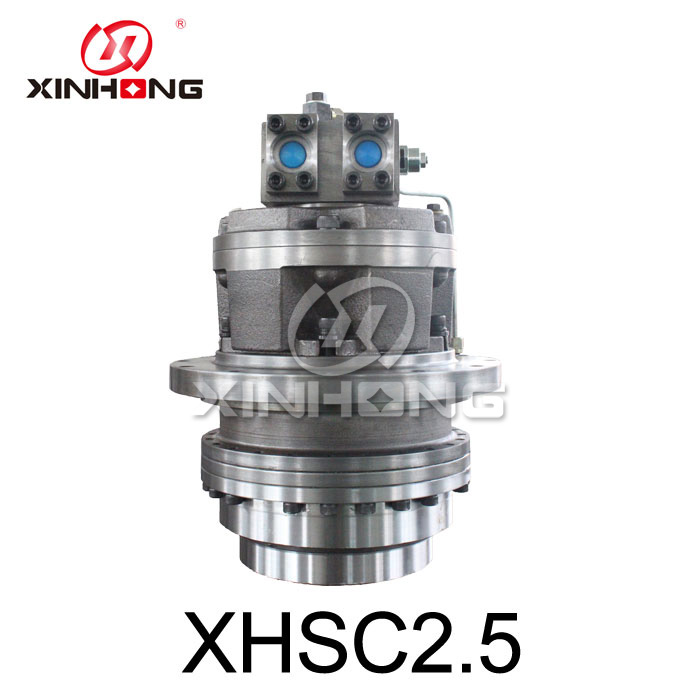

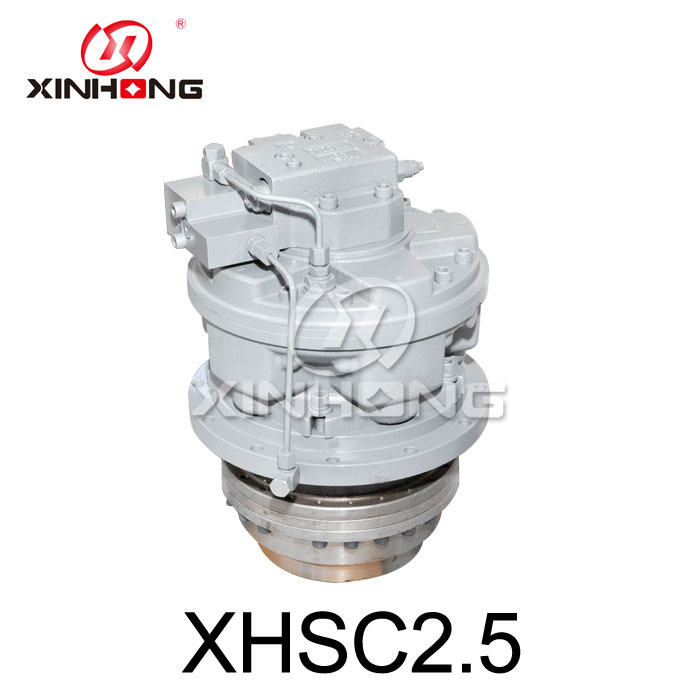

We have manufactured this Hydraulic Gearbox since 2006. We have a plenty of experience and advanced equipment in manufacturing Hydraulic Gearbox with the precisely helical teeth and balanced sun-gear shaft. This Hydraulic Gearbox can transfer power from hydraulic motor to winch or rotatory machine.


2.Product Parameter (Specification) of Hydraulic Gearbox

Model

Total Displacement(ml/r)

Rated torque(N.M)

Speed

(r/min)

Total

(efficency)

Hydraulic motor model

Planetary reducer model

Brake model

20Mpa

XHSC2.5-550

575

1630

0-100

0.88-0.9

XHS05-110

C2.5-5

XHZ2.5

XHSC2.5-650

645

1826

0-100

0.88-0.9

XHS05-130

C2.5-5

XHZ2.5

XHSC2.5-750

755

2136

0-100

0.88-0.9

XHS05-150

C2.5-5

XHZ2.5

XHSC2.5-850

830

2350

0-100

0.88-0.9

XHS05-170

C2.5-5

XHZ2.5

XHSC2.5-950

955

2706

0-100

0.88-0.9

XHS05-200

C2.5-5

XHZ2.5

XHSC2.5-1050

1050.5

2976

0-100

0.88-0.9

XHS05-200

C2.5-5.5

XHZ2.5


3.Product Feature And Application

This Hydraulic Gearbox includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Hydraulic Gearbox can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Hydraulic Gearbox is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.


4.Product Details of Hydraulic Gearbox

Our Hydraulic Gearbox has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Hydraulic Gearbox boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.


5.Product Qualification of Hydraulic Gearbox

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Hydraulic Gearbox

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
