Hydraulic Transmission Drive System

We have developed and sold this Hydraulic Transmission Drive System to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hydraulic Transmission Drive System from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Hydraulic Transmission Drive System

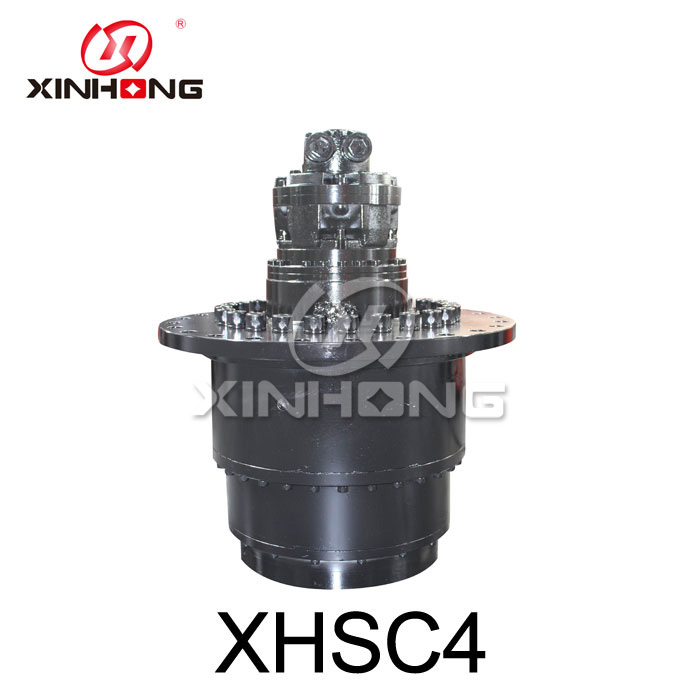

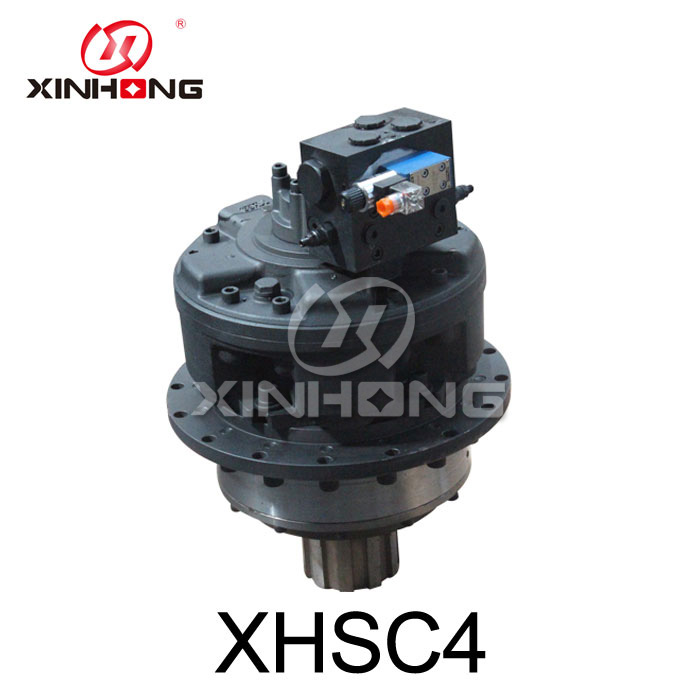

We have manufactured this Hydraulic Transmission Drive System since 2006. We have a plenty of experience and advanced equipment in manufacturing Hydraulic Transmission Drive System with the precisely helical teeth and balanced sun-gear shaft. This Hydraulic Transmission Drive System can transfer power from hydraulic motor to winch or rotatory machine.


2.Product Parameter (Specification) of Hydraulic Transmission Drive System

Model

Total Displacement(ml/r)

Rated torque(N.M)

Speed

(r/min)

Total

(efficency)

Hydraulic motor model

Planetary reducer model

Brake model

20Mpa

XHSC4-2450

2430

6860

0-80

0.9-0.91

XHS3-500

C4-5

XHZ4

XHSC4-3000

2975

8398

0-80

0.9-0.91

XHS3-600

C4-5

XHZ4

XHSC4-3500

3450

9774

0-80

0.9-0.91

XHS3-700

C4-5

XHZ4

XHSC4-4000

3960

11222

0-80

0.9-0.91

XHS3-800

C4-5

XHZ4

XHSC4-4400

4356

12344

0-70

0.9-0.91

XHS3-800

C4-5.5

XHZ4

XHSC4-4800

4801

13538

0-70

0.9-0.91

XHS3-900

C4-5.5

XHZ4


3.Product Feature And Application

This Hydraulic Transmission Drive System includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Hydraulic Transmission Drive System can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Hydraulic Transmission Drive System is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.


4.Product Details of Hydraulic Transmission Drive System

Our Hydraulic Transmission Drive System has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Hydraulic Transmission Drive System boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.


5.Product Qualification of Hydraulic Transmission Drive System

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Hydraulic Transmission Drive System

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
