We have developed and sold this Hydraulic Anchor Capstan to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hydraulic Anchor Capstan from us. Every request from customers is being replied within 24 hours.
1.Product Introduction of Hydraulic Anchor Capstan

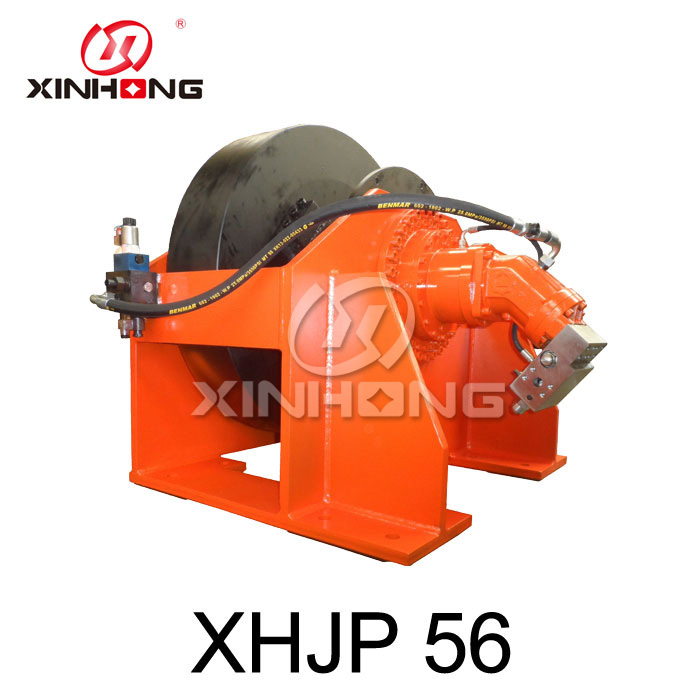

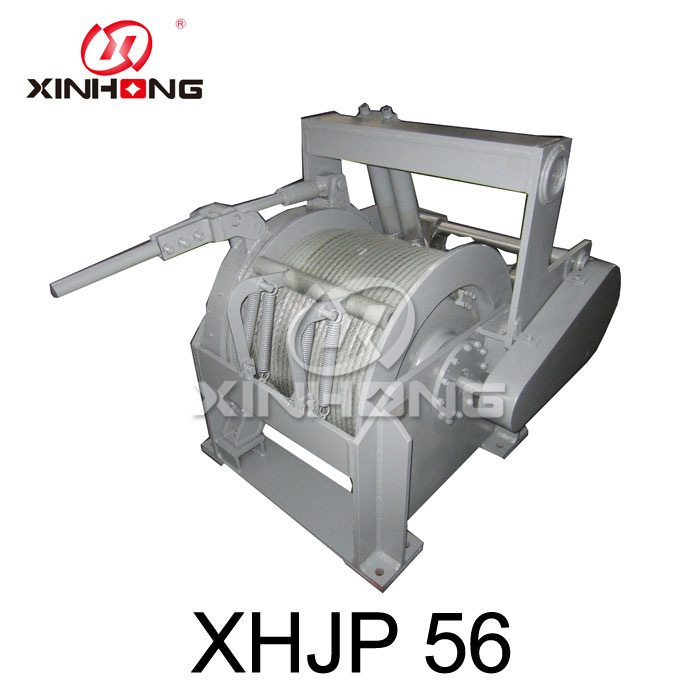

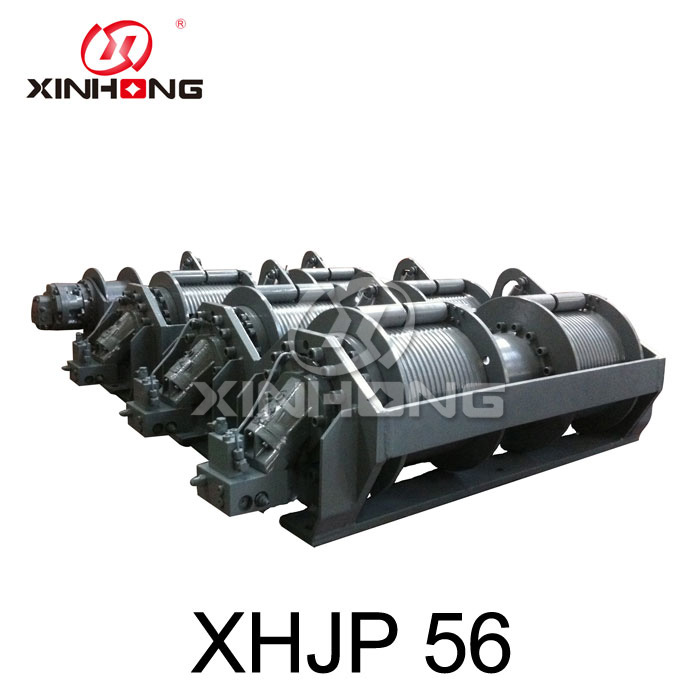

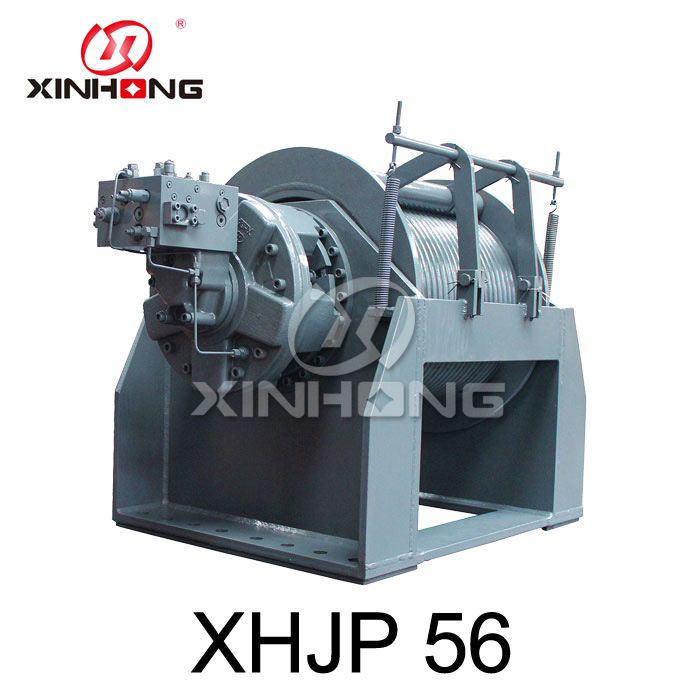

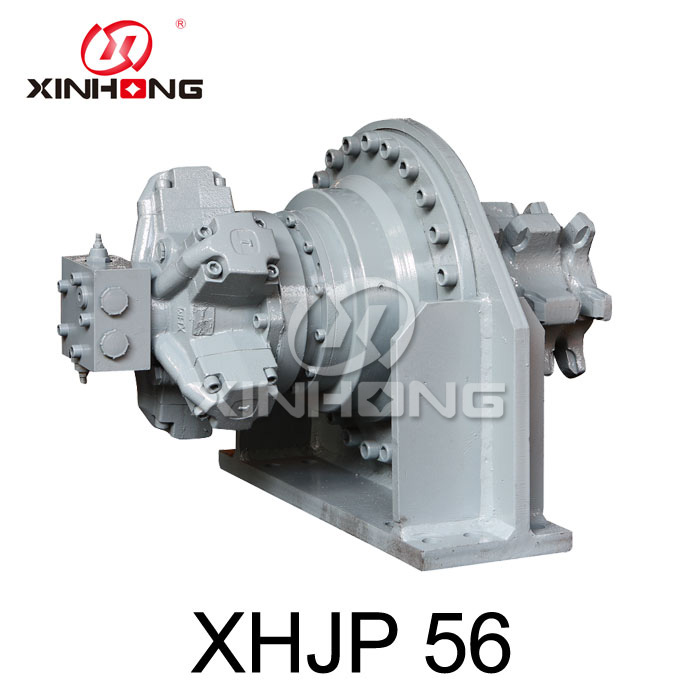

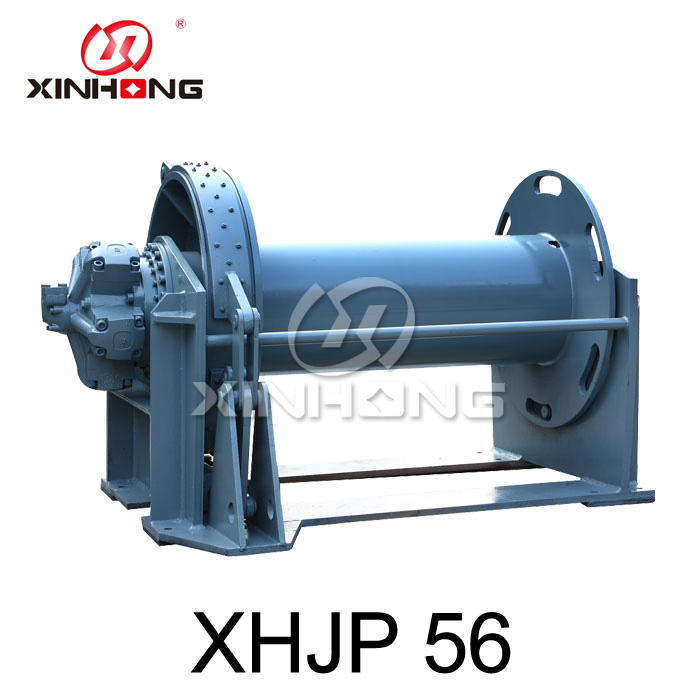

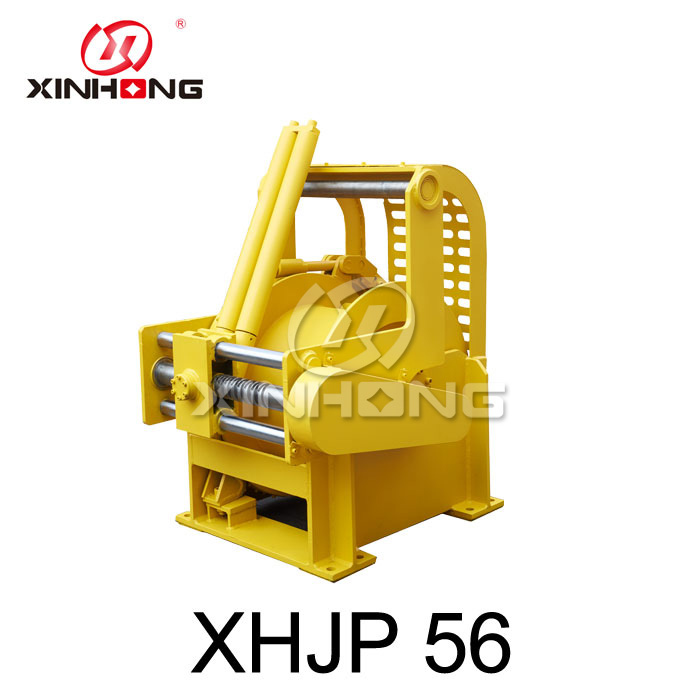

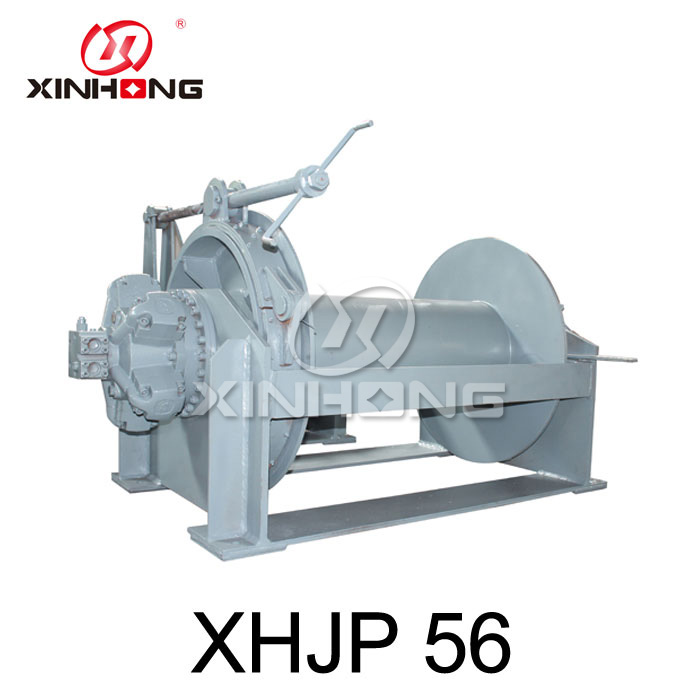

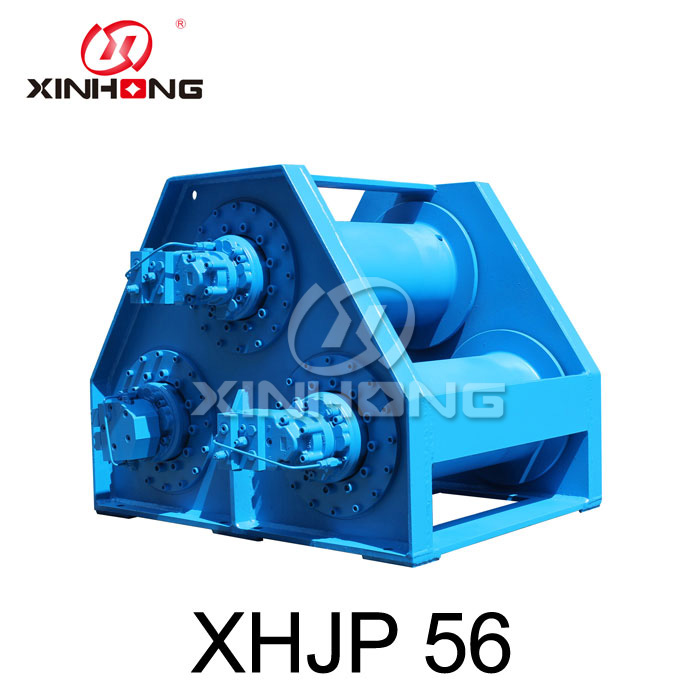

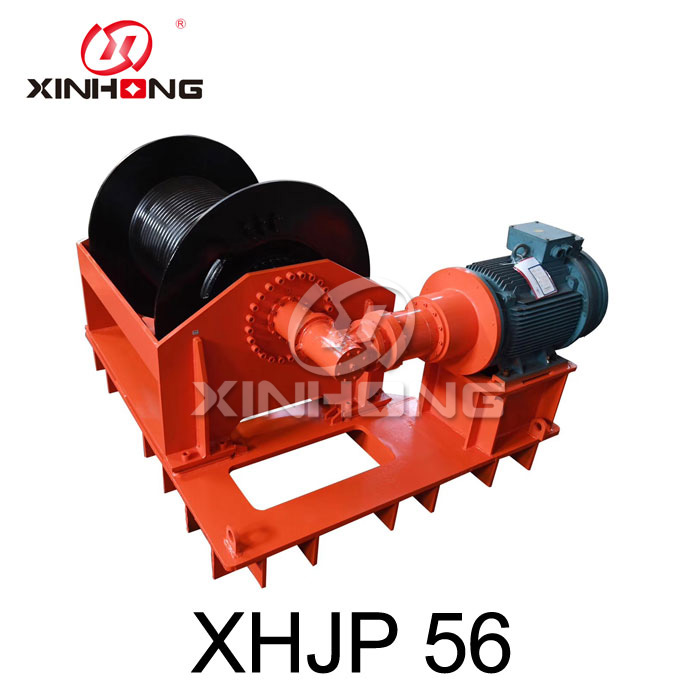

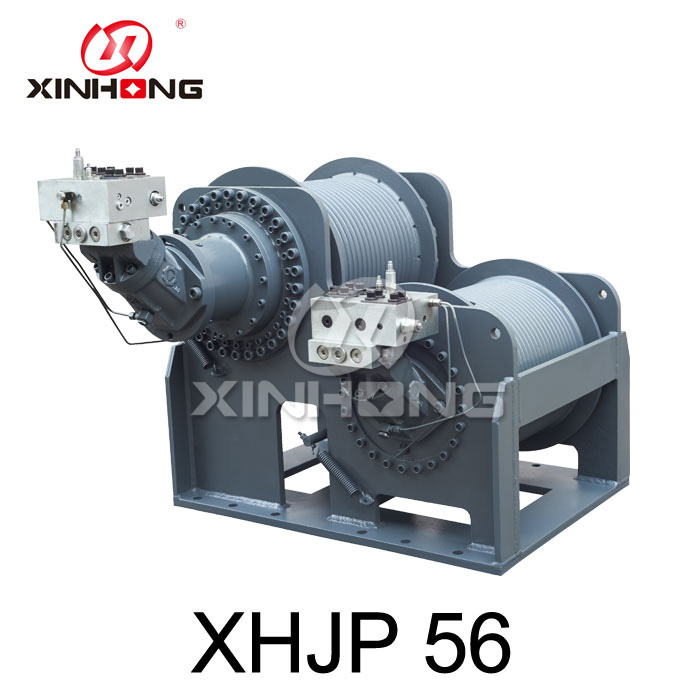

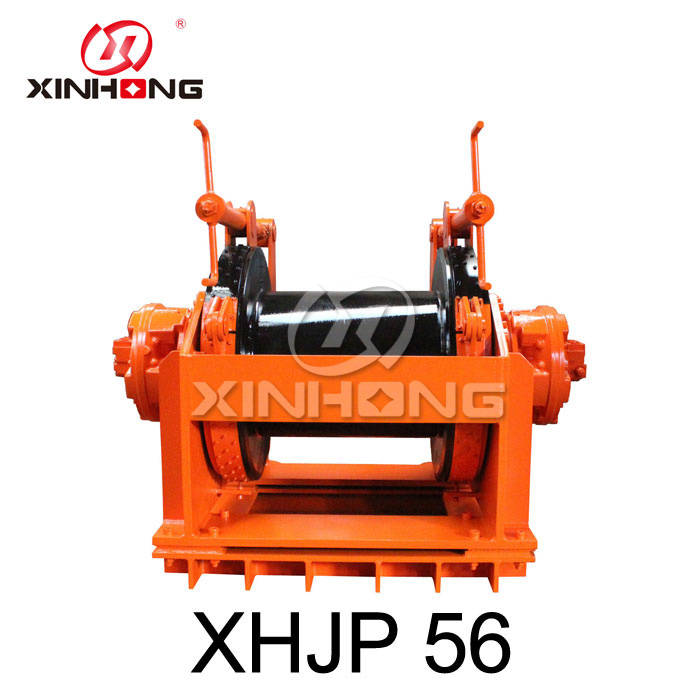

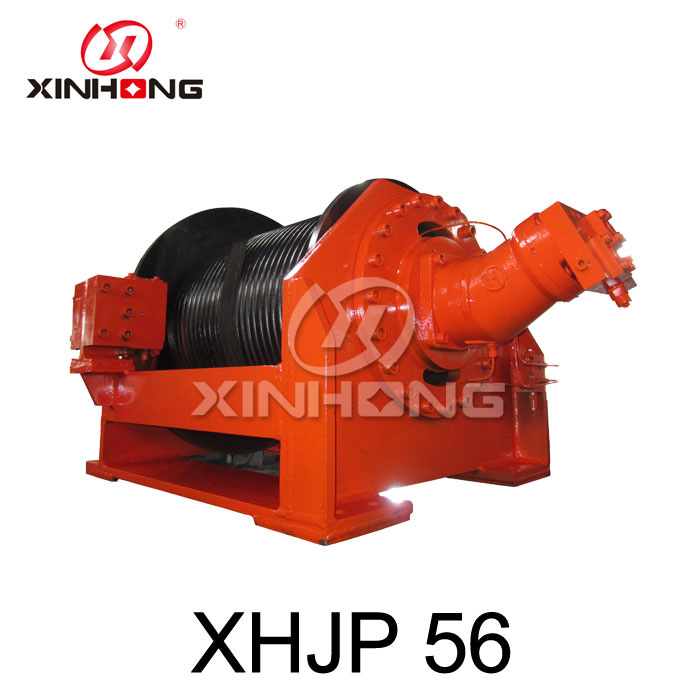

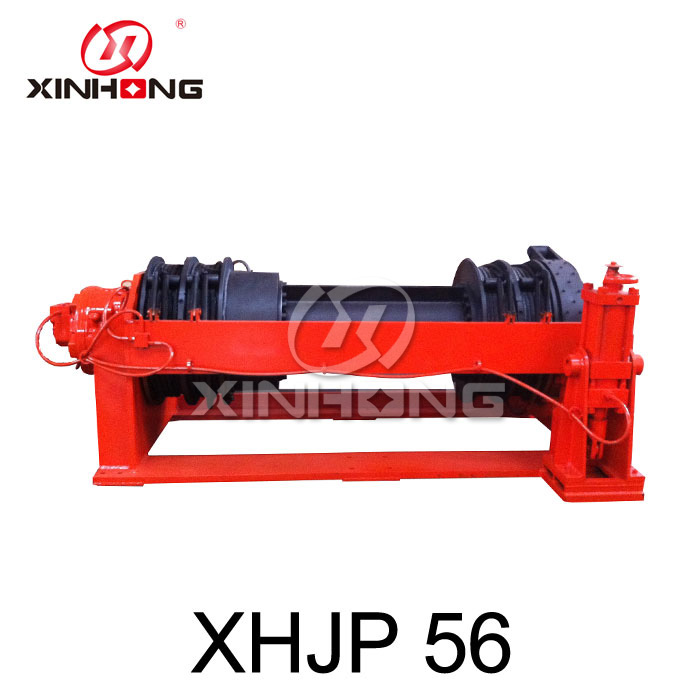

We have manufactured this Hydraulic Anchor Capstan since 2006. Hydraulic Anchor Capstan consists of hydraulic motor, planetary reducer, disc brake, oil distributor and steel structure. Our Hydraulic Anchor Capstan has its own valve group which makes hydraulic system more simple and increases stability of the transmission device.
2.Product Parameter (Specification) of Hydraulic Anchor Capstan
|
Model |
System load(KN) |
Theoretical winch speed(m/min) |
Diameter of steel cable(mm) |
Difference of working pressure(ml/rev) |
Total displacement(ml/rev) |
Transmission ratio |
Model of hydraulic motor |
|
XHJP56-120 |
120 |
22 |
28 |
13.5 |
22608 |
16 |
XHM16-1400D47F2402 |
|
XHJP56-130 |
130 |
19 |
28 |
14.6 |
22608 |
16 |
XHM16-1400D47F2402 |
|
XHJP56-140 |
140 |
16 |
28 |
12.5 |
26368 |
16 |
XHM16-1600D47F2402 |
|
XHJP56-150 |
150 |
15 |
30 |
13.4 |
26368 |
16 |
XHM16-1600D47F2402 |
|
XHJP56-160 |
160 |
15 |
30 |
14.3 |
26368 |
16 |
XHM16-1600D47F2402 |
3.Product Feature And Application
This Hydraulic Anchor Capstan can lift and put down stably without empty hook vibrating and twice falling during hoisting. Our Hydraulic Anchor Capstan has advantages in high efficiency, low energy consumption, low noise and compact structure due to our accurate design proposal. This Hydraulic Anchor Capstan is widely applied in railway and automobile crane, ship, oil field, coal mine, port and other lifting equipment. Our design group can customize Hydraulic Anchor Capstan according to actual working condition.
4.Product Details of Hydraulic Anchor Capstan

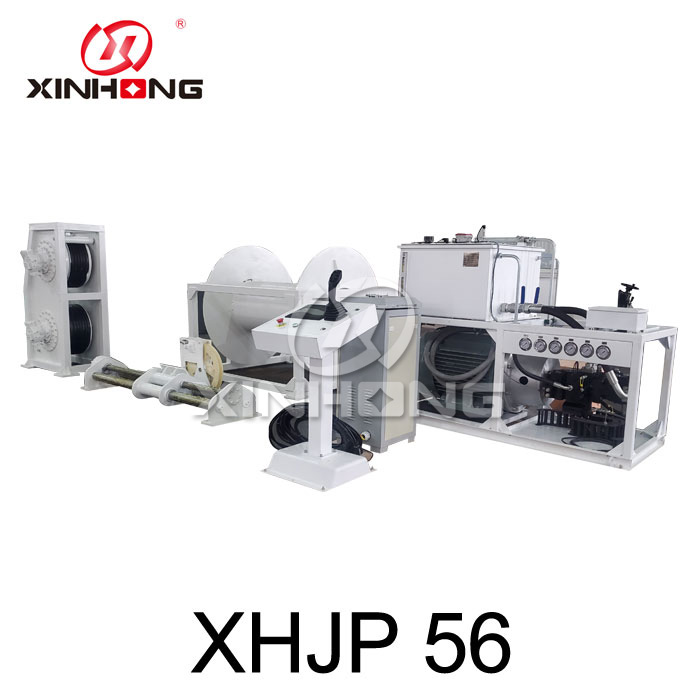

Our company not only provides Hydraulic Anchor Capstan, but also provides whole hydraulic system and power source. The hydraulic motor, planetary gearbox and system of Hydraulic Anchor Capstan are designed and manufactured by our own factory. So the quality and delivery time can be controlled and guaranteed. We can also supply timely after-sale service and technique support.
5.Product Qualification of Hydraulic Anchor Capstan
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Hydraulic Anchor Capstan
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
