Hydraulic Mooring Capstan

We have developed and sold this Hydraulic Mooring Capstan to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hydraulic Mooring Capstan from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Hydraulic Mooring Capstan

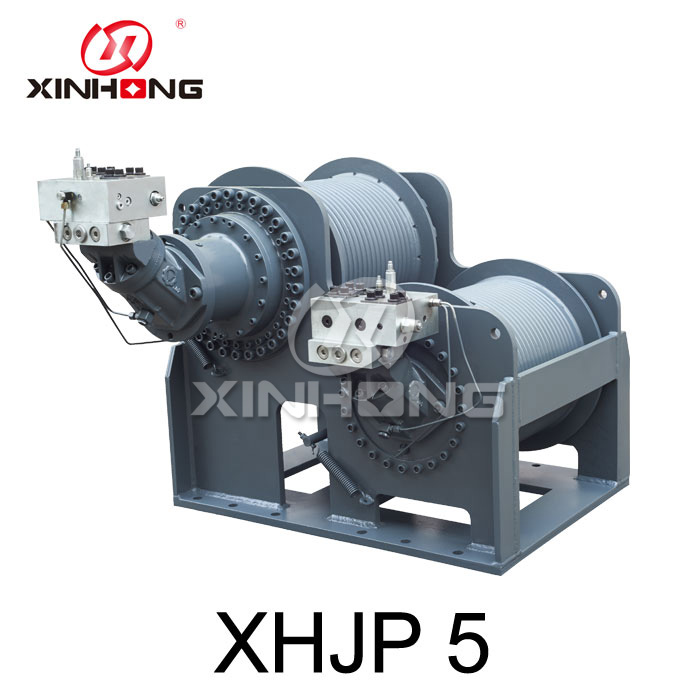

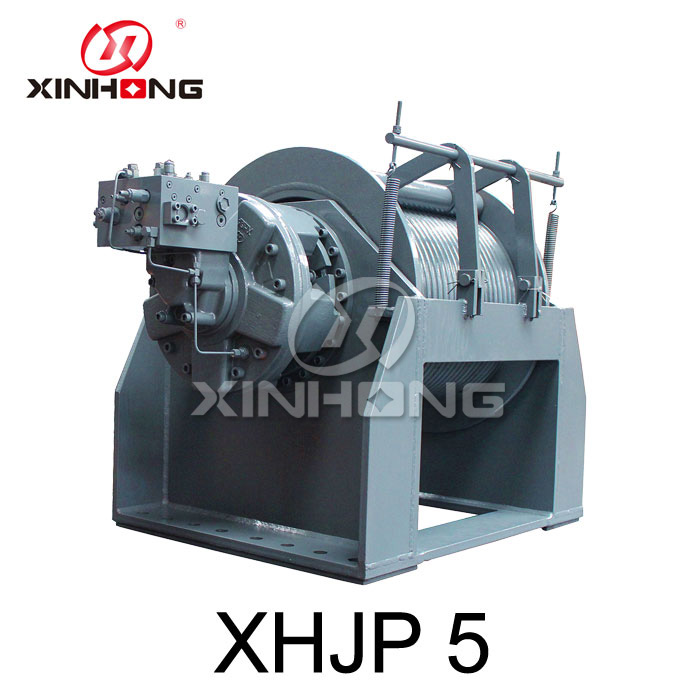

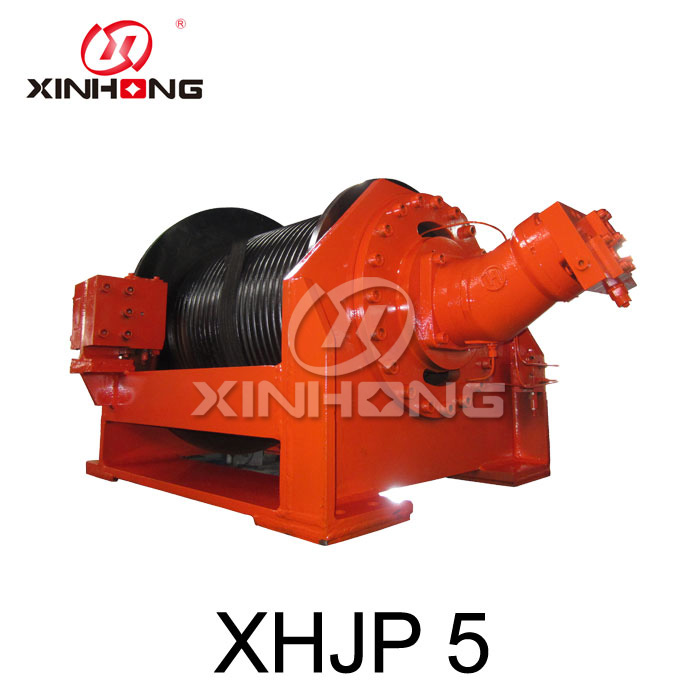

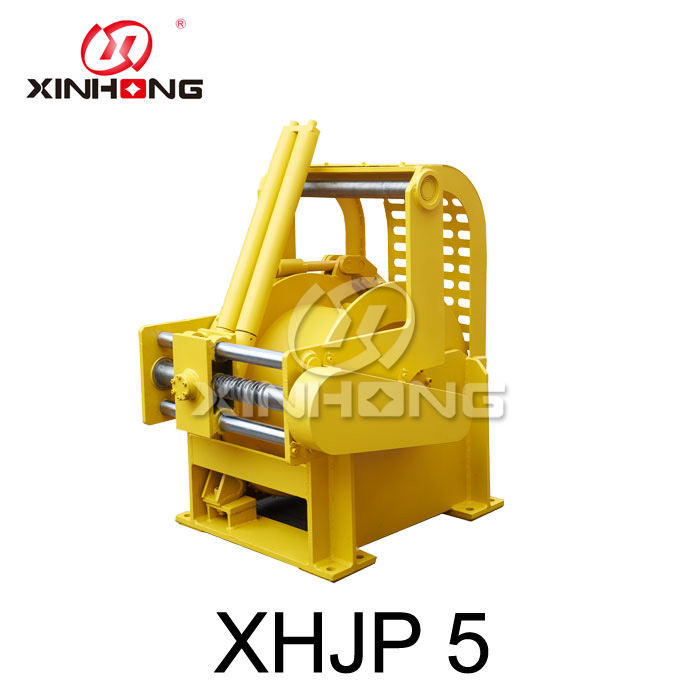

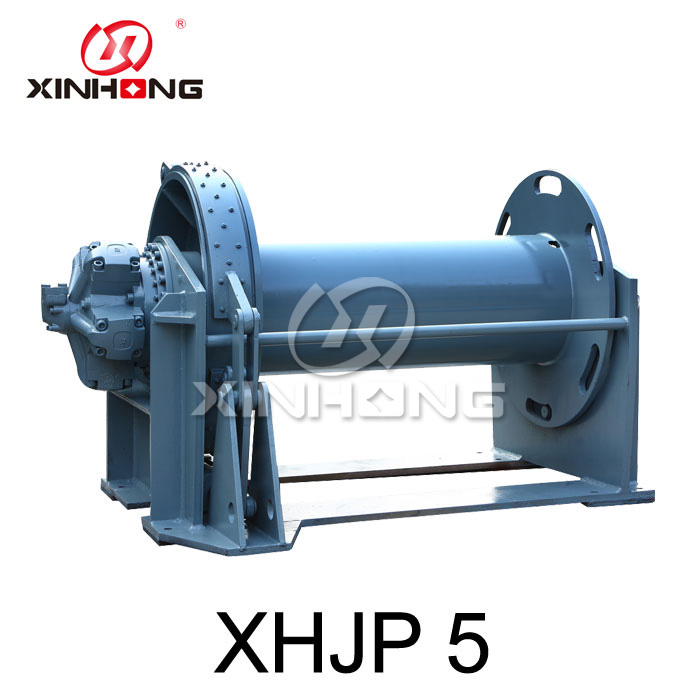

We have manufactured this Hydraulic Mooring Capstan since 2006. Hydraulic Mooring Capstan consists of hydraulic motor, planetary reducer, disc brake, oil distributor and steel structure. Our Hydraulic Mooring Capstan has its own valve group which makes hydraulic system more simple and increases stability of the transmission device.


2.Product Parameter (Specification) of Hydraulic Mooring Capstan

Model

System load(KN)

Theoretical winch speed(m/min)

Diameter of steel cable(mm)

Difference of working pressure(ml/rev)

Total displacement(ml/rev)

Transmission ratio

Model of hydraulic motor

XHJP5-65

65

48

26

14.8

8240

5

XHM16-1600D47F2402

XHJP5-70

70

37

26

15

9070

5

XHM16-1800D47F2402

XHJP5-75

75

34

26

14.6

9977

5.5

XHM16-1800D47F2402

XHJP5-80

80

31

26

15.5

9977

5.5

XHM16-1800D47F2402

XHJP5-85

85

25

26

14.5

11187

5.5

XHM16-2000D47F2402

XHJP5-90

90

25

28

15.3

11187

5.5

XHM16-2000D47F2402

XHJP5-95

95

28

28

14.8

12164

4

XHM16-3000D47F2402

XHJP5-100

100

28

28

15.5

12164

4

XHM16-3000D47F2402


3.Product Feature And Application

This Hydraulic Mooring Capstan can lift and put down stably without empty hook vibrating and twice falling during hoisting. Our Hydraulic Mooring Capstan has advantages in high efficiency, low energy consumption, low noise and compact structure due to our accurate design proposal. This Hydraulic Mooring Capstan is widely applied in railway and automobile crane, ship, oil field, coal mine, port and other lifting equipment. Our design group can customize Hydraulic Mooring Capstan according to actual working condition.


4.Product Details of Hydraulic Mooring Capstan

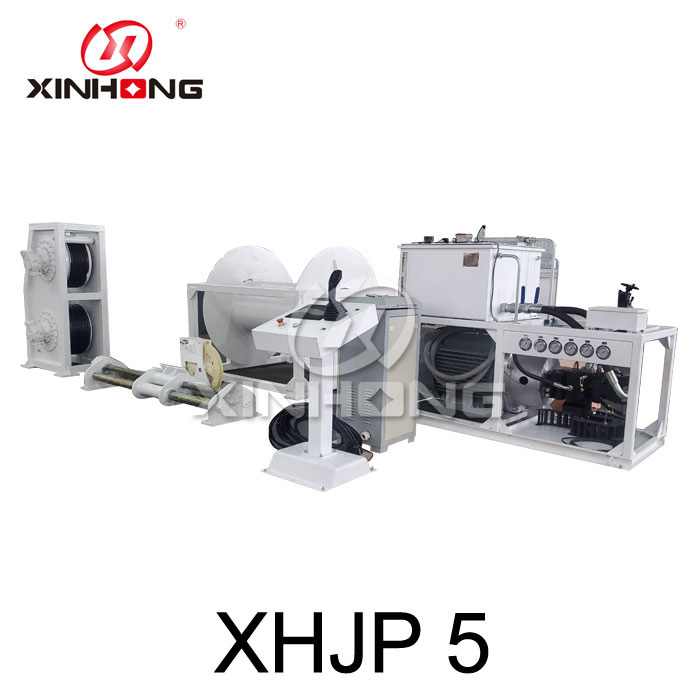

Our company not only provides Hydraulic Mooring Capstan, but also provides whole hydraulic system and power source. The hydraulic motor, planetary gearbox and system of Hydraulic Mooring Capstan are designed and manufactured by our own factory. So the quality and delivery time can be controlled and guaranteed. We can also supply timely after-sale service and technique support.


5.Product Qualification of Hydraulic Mooring Capstan

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Hydraulic Mooring Capstan

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
