Winch Transmission Drive System

We have developed and sold this Winch Transmission Drive System to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Winch Transmission Drive System from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

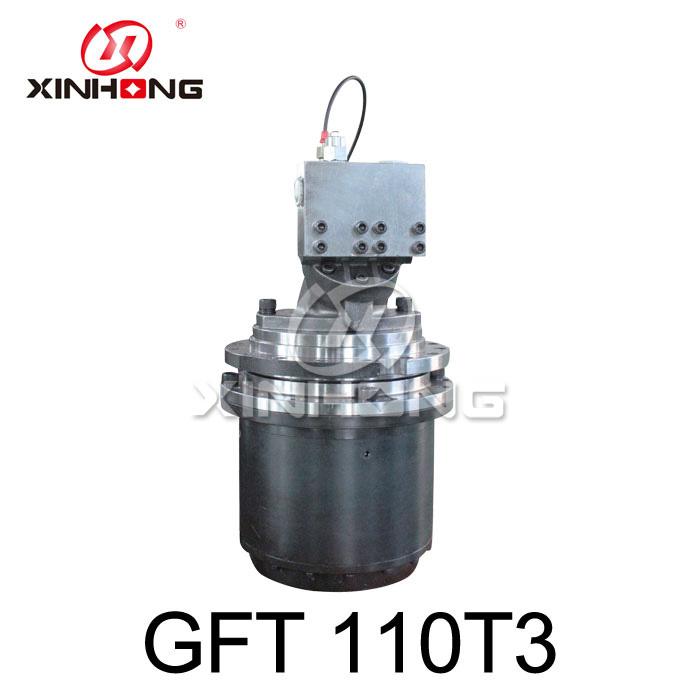

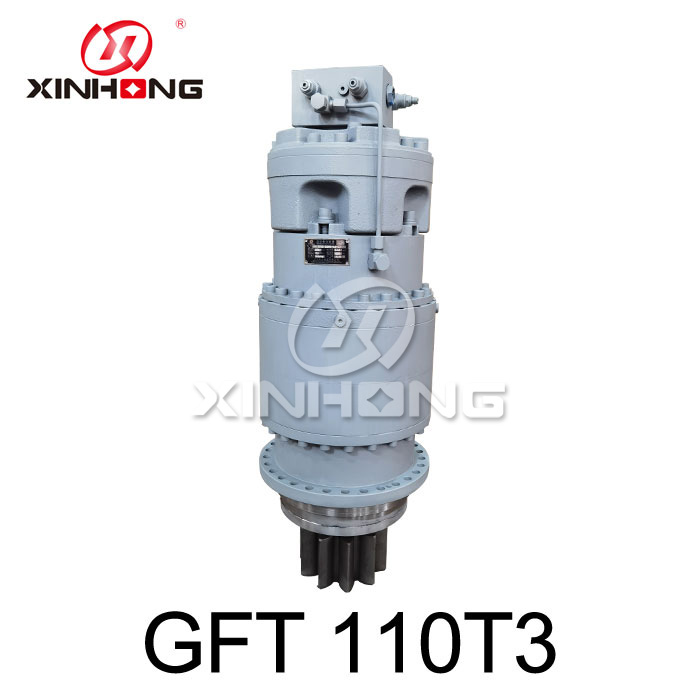

1.Product Introduction of Winch Transmission Drive System

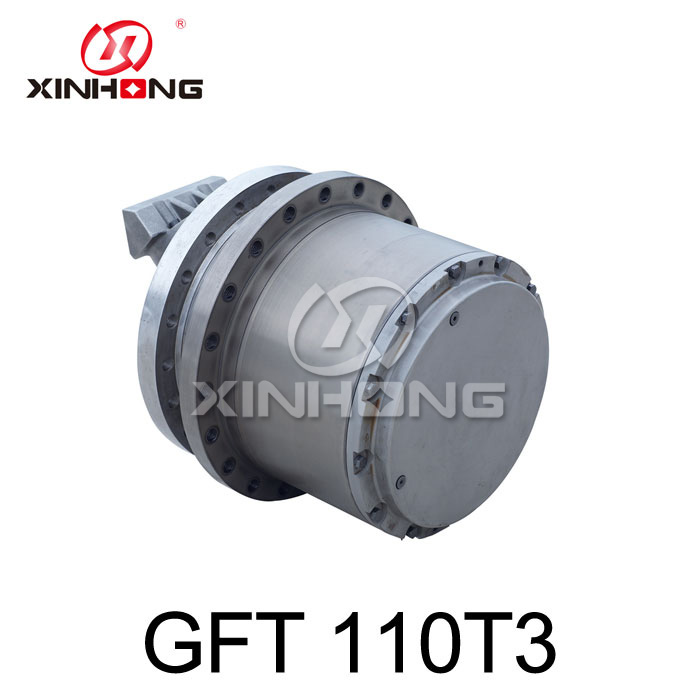

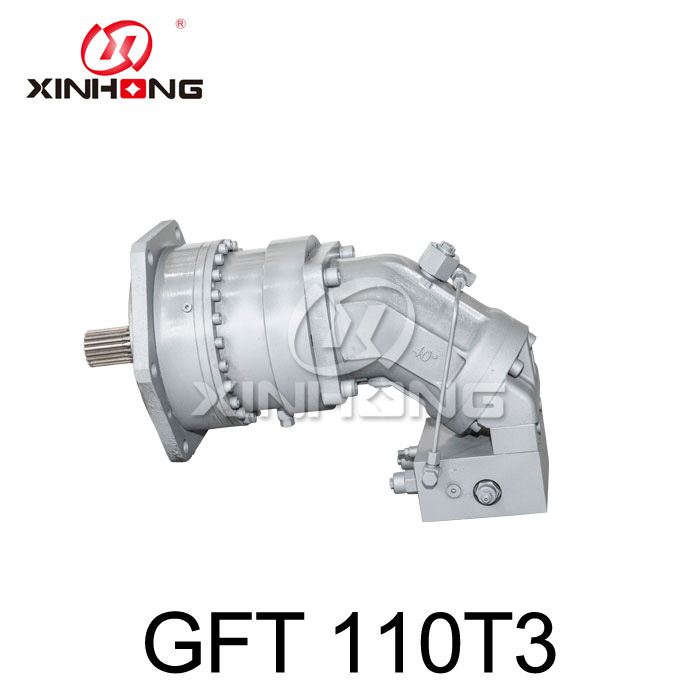

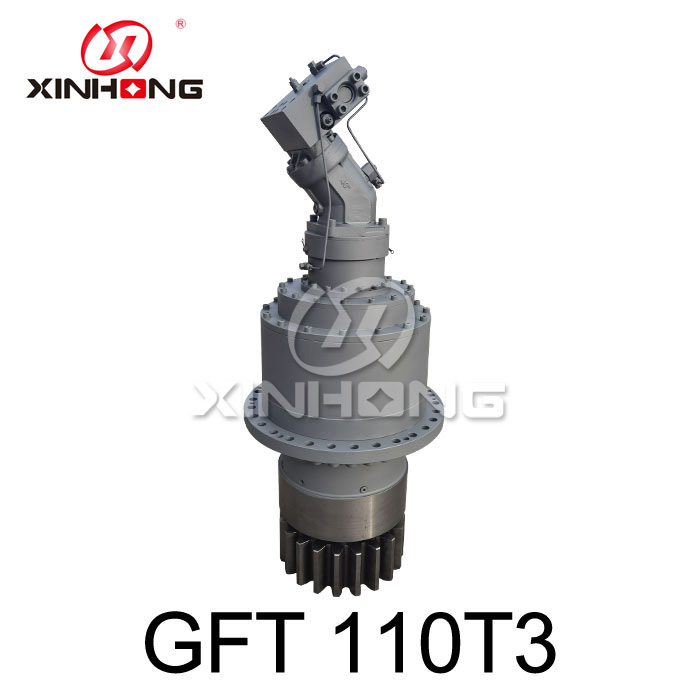

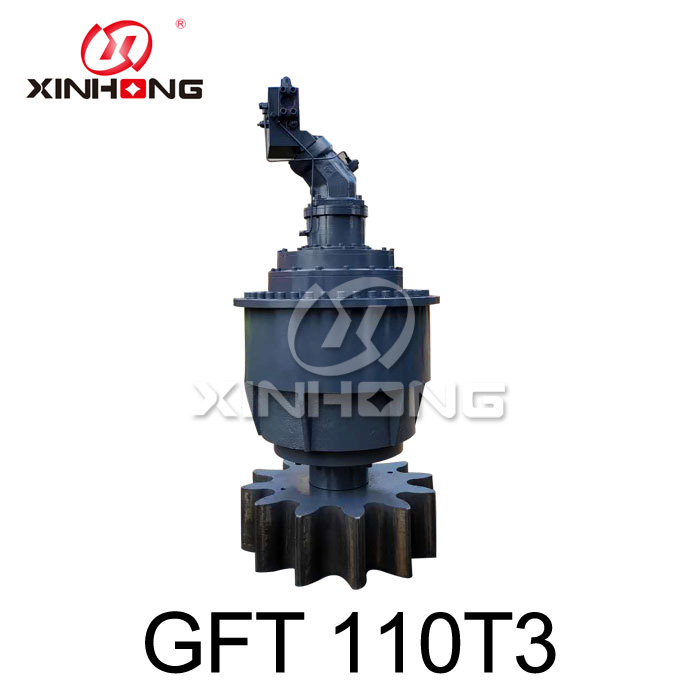

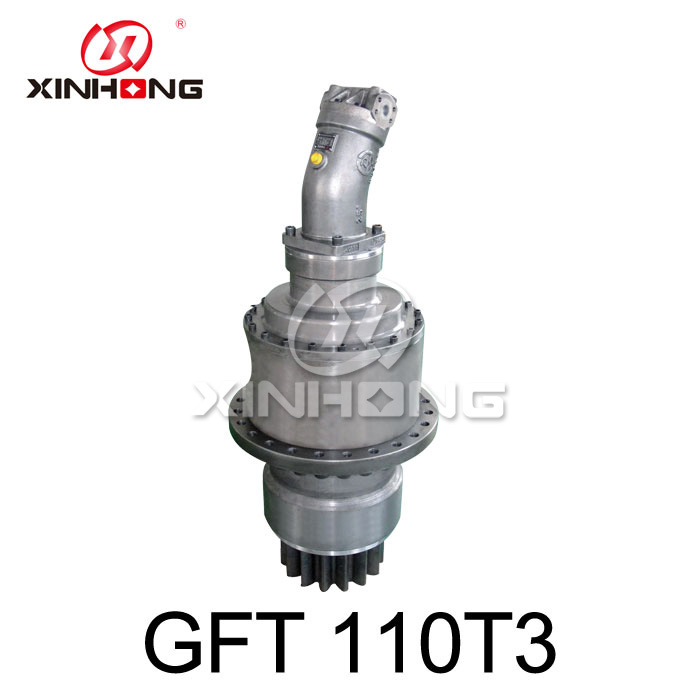

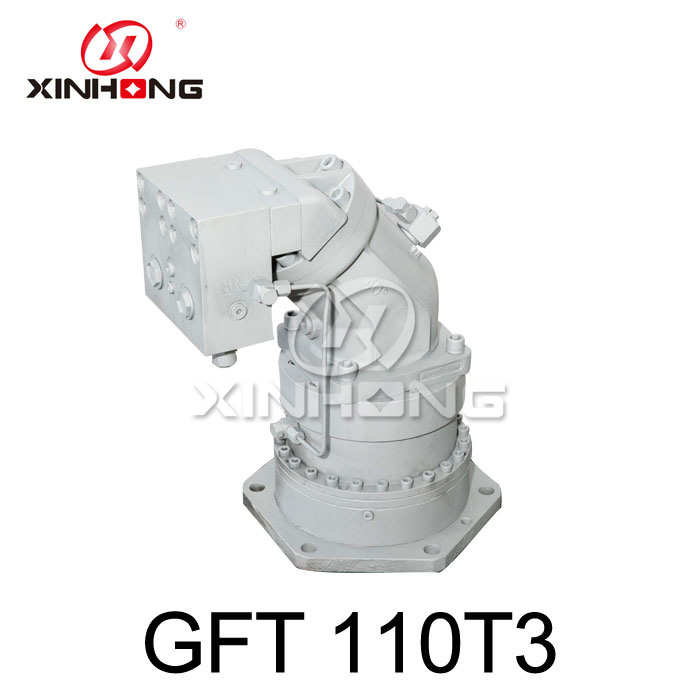

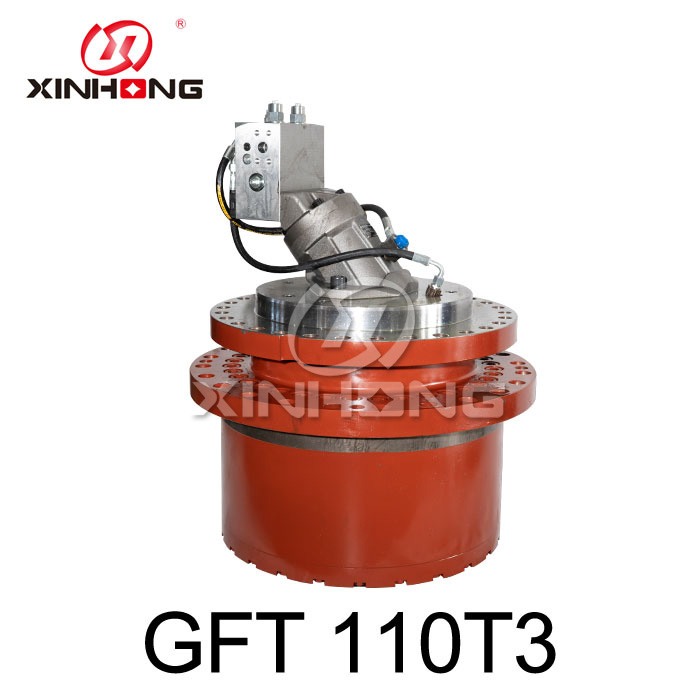

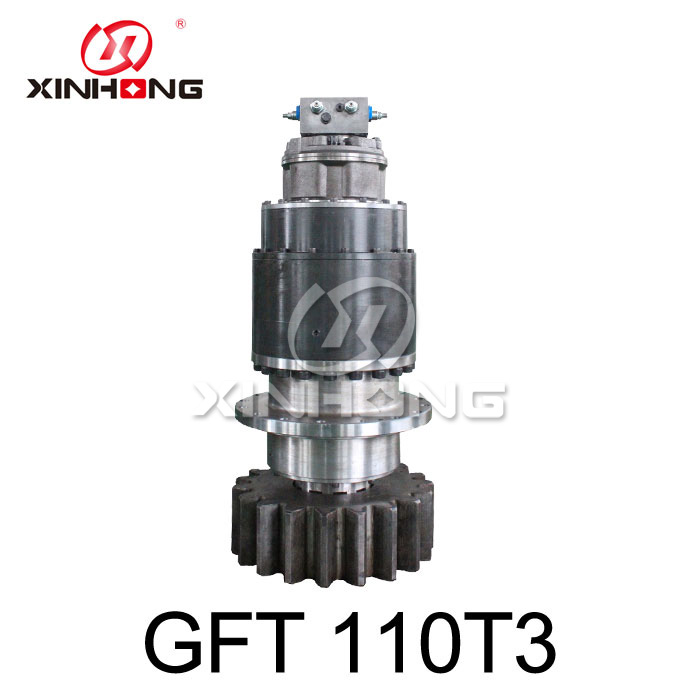

We have manufactured this Winch Transmission Drive System since 2006. We have a plenty of experience and advanced equipment in manufacturing Winch Transmission Drive System with the precisely helical teeth and balanced sun-gear shaft. This Winch Transmission Drive System can transfer power from hydraulic motor to winch or rotatory machine.


2.Product Parameter (Specification) of Winch Transmission Drive System

Max Output torque(TmaxN.m)

Transmission ratio

Model of hydraulic motor

Max.input rotating ratio(r/min)

Static brake torque(TBRmax.N.m)

Brake working pressure Mpa

110000

95.8

114.8

128.6

147.2

173.9

215

A2FE107

A2FE125

A2FE160

A2FE180

A6VE107

A6VE160

2000

900-2000

1.8-5


3.Product Feature And Application

This Winch Transmission Drive System includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Winch Transmission Drive System can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Winch Transmission Drive System is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.


4.Product Details of Winch Transmission Drive System

Our Winch Transmission Drive System has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Winch Transmission Drive System boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.


5.Product Qualification of Winch Transmission Drive System

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Winch Transmission Drive System

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
