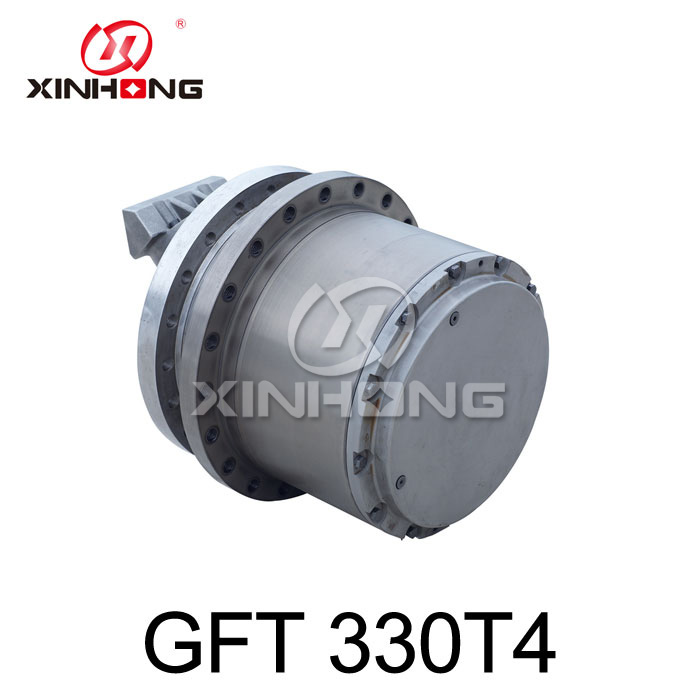

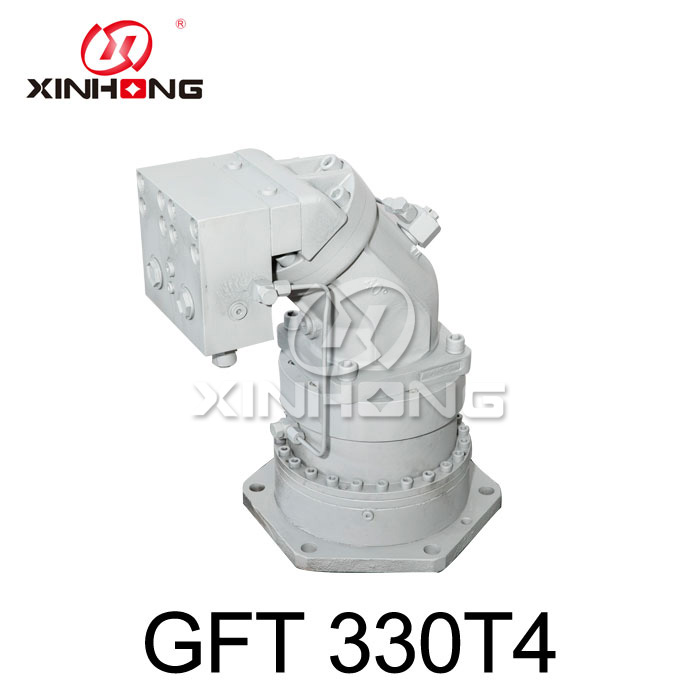

Three-staged Planetary Reducer

We have developed and sold this Three-staged Planetary Reducer to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Three-staged Planetary Reducer from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Three-staged Planetary Reducer

We have manufactured this Three-staged Planetary Reducer since 2006. We have a plenty of experience and advanced equipment in manufacturing Three-staged Planetary Reducer with the precisely helical teeth and balanced sun-gear shaft. This Three-staged Planetary Reducer can transfer power from hydraulic motor to winch or rotatory machine.


2.Product Parameter (Specification) of Three-staged Planetary Reducer

Max Output torque(TmaxN.m)

Transmission ratio

Model of hydraulic motor

Max.input rotating ratio(r/min)

Static brake torque(TBRmax.N.m)

Brake working pressure Mpa

330000

451.7

839.4

1008

A2FE107

A2FE125

A2FE160

A2FE180

A6VE107

A6VE160

2000

1200-2400

1.8-5


3.Product Feature And Application

This Three-staged Planetary Reducer includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Three-staged Planetary Reducer can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Three-staged Planetary Reducer is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.


4.Product Details of Three-staged Planetary Reducer

Our Three-staged Planetary Reducer has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Three-staged Planetary Reducer boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.


5.Product Qualification of Three-staged Planetary Reducer

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Three-staged Planetary Reducer

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
