Radial Piston Motor with Low Leakage

We have developed and sold this Radial Piston Motor with Low Leakage to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. With many European and American, Asian and domestic customers, we have established long-term good relationship with common progress. Sincerely expect to join hands with you to create the future.

Model:XHS4

Send Inquiry

Product Description

1.Product Introduction of Radial Piston Motor with Low Leakage

We have manufactured this Radial Piston Motor with Low Leakage since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor with Low Leakage can transfer hydraulic energy to mechanical energy with high efficiency. Sincerely expect to join hands with you to create the future.

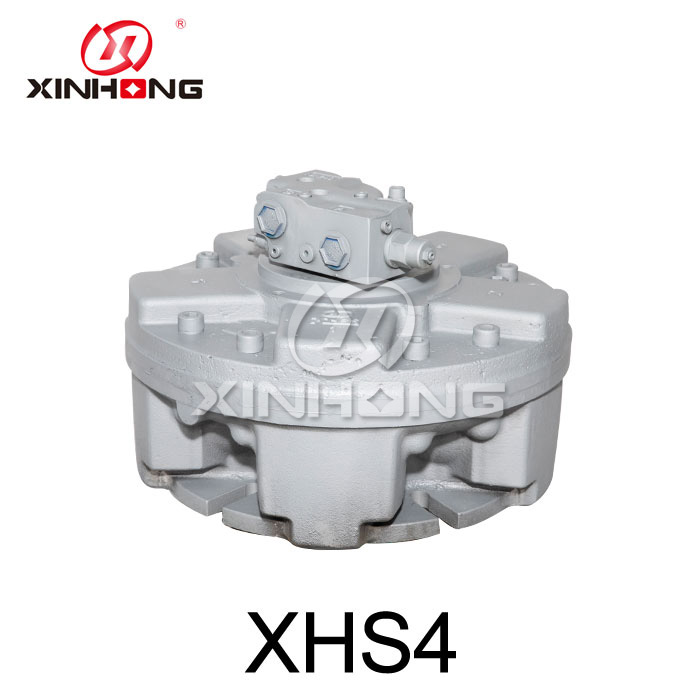

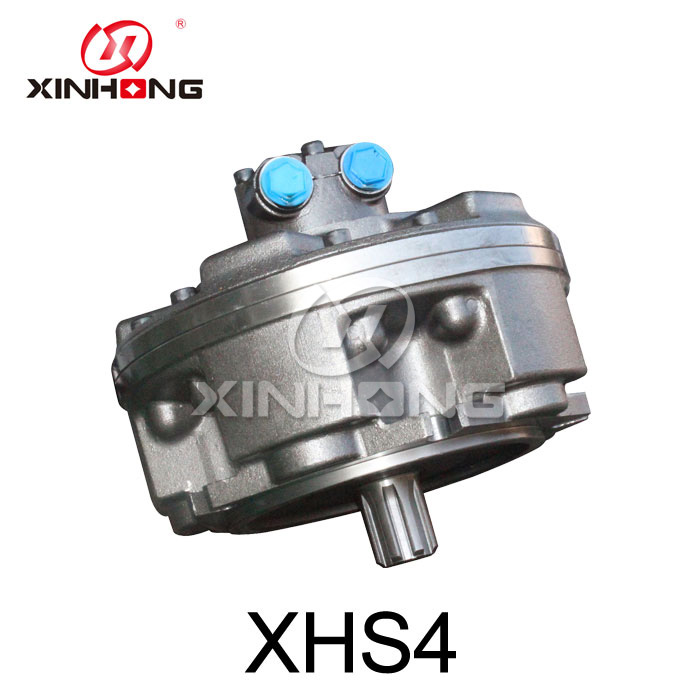

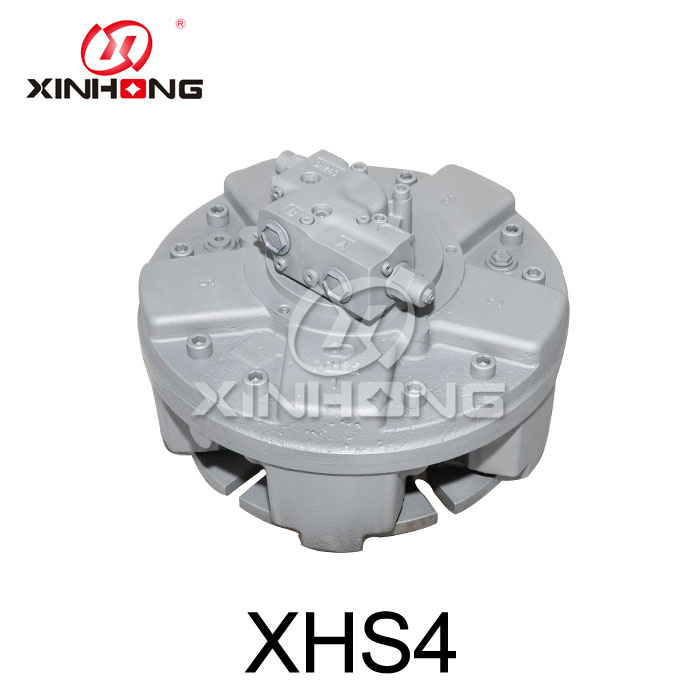

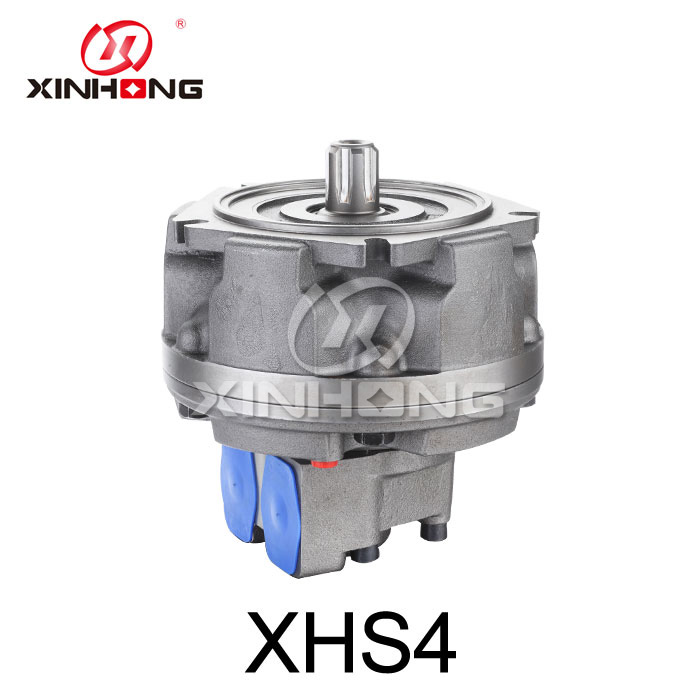

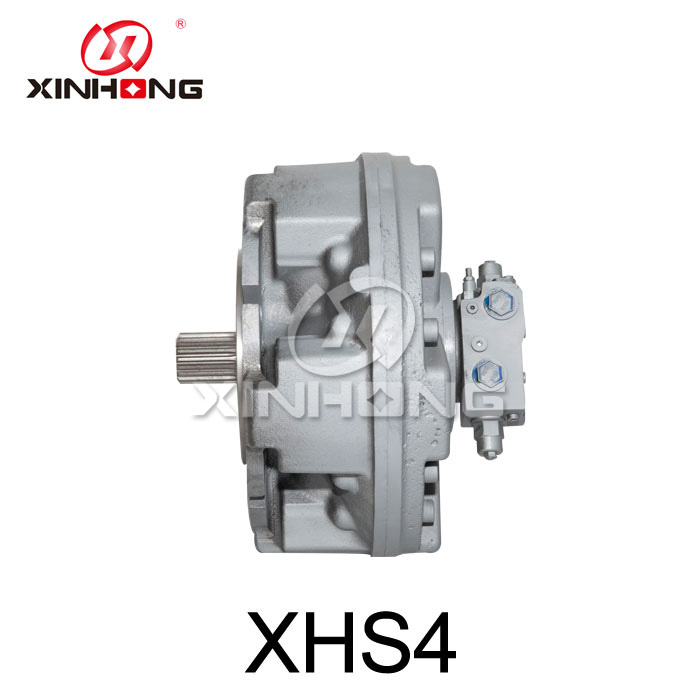

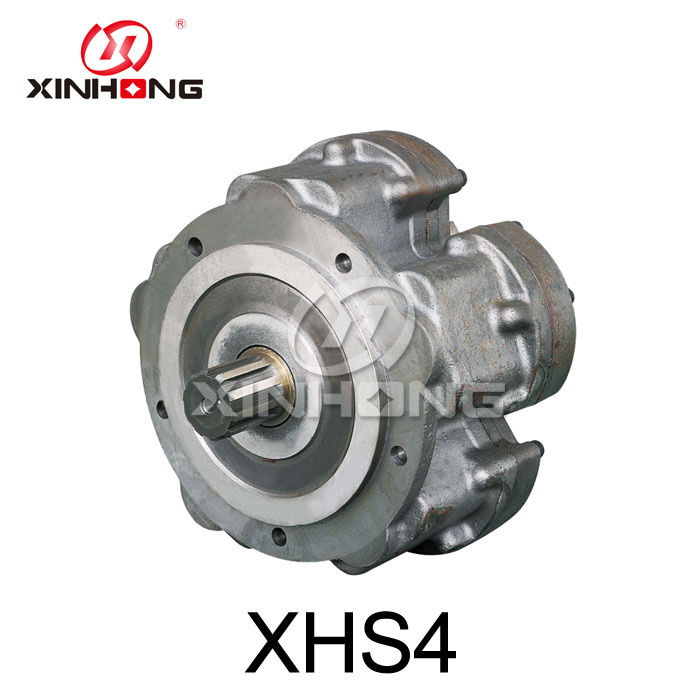

Radial Piston Motor with Low Leakage


2.Product Parameter (Specification) of Radial Piston Motor with Low Leakage

XHS4

Unit

500

600

800

900

1000

1100

1250B

1300B

Displacement

ml/r

503

615

792

904

1022

1116

1247

1315

Specific torque

Nm/MPa

79.9

97.7

125

143

162

177

198

209

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

100

100

100

100

100

100

100

100

Torque rating

Nm

1785

2185

2845

3250

3675

4010

4485

4730

Peak torque

Nm

2125

2595

3390

3870

4375

4775

5335

5630

Speed rating

r/min

400

400

360

320

270

240

220

190

Cont. speed

r/min

500

500

450

400

340

300

280

240

Max. speed

r/min

550

500

500

420

380

380

380

330

Weight

kg

120

120

120

120

120

120

120

120


3.Product Feature And Application

This is a fixed displacement Radial Piston Motor with Low Leakage. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and injection molding machine. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Radial Piston Motor with Low Leakage

This Radial Piston Motor with Low Leakage is actuated by five pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Radial Piston Motor with Low Leakage

Our products are certificated by ISO, CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Radial Piston Motor with Low Leakage

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
