Industrial Variable Displacement Radial Piston Motor with High Power

We have developed and sold this Industrial Variable Displacement Radial Piston Motor with High Power to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Industrial Variable Displacement Radial Piston Motor with High Power from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Industrial Variable Displacement Radial Piston Motor with High Power

We have manufactured this Industrial Variable Displacement Radial Piston Motor with High Power since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Industrial Variable Displacement Radial Piston Motor with High Power can transfer hydraulic energy to mechanical energy with high efficiency.

Industrial Variable Displacement Radial Piston Motor with High Power


2.Product Parameter (Specification) of Industrial Variable Displacement Radial Piston Motor with High Power

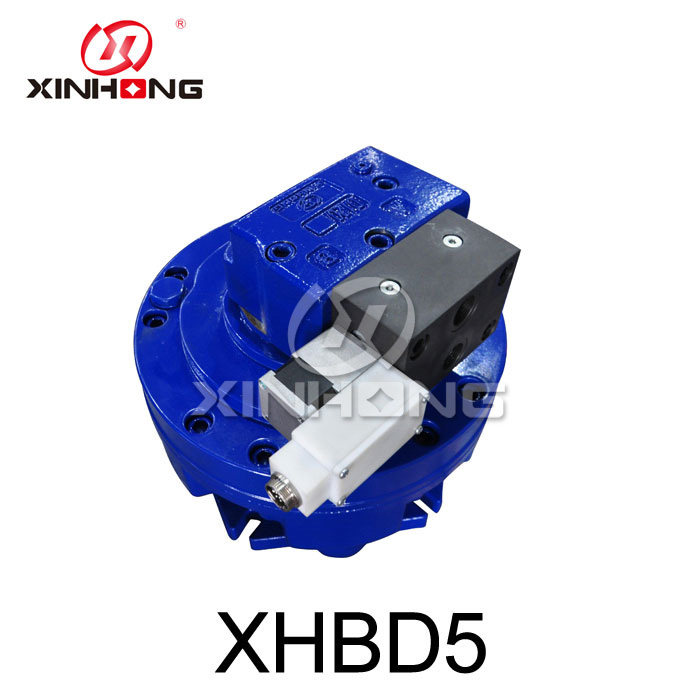

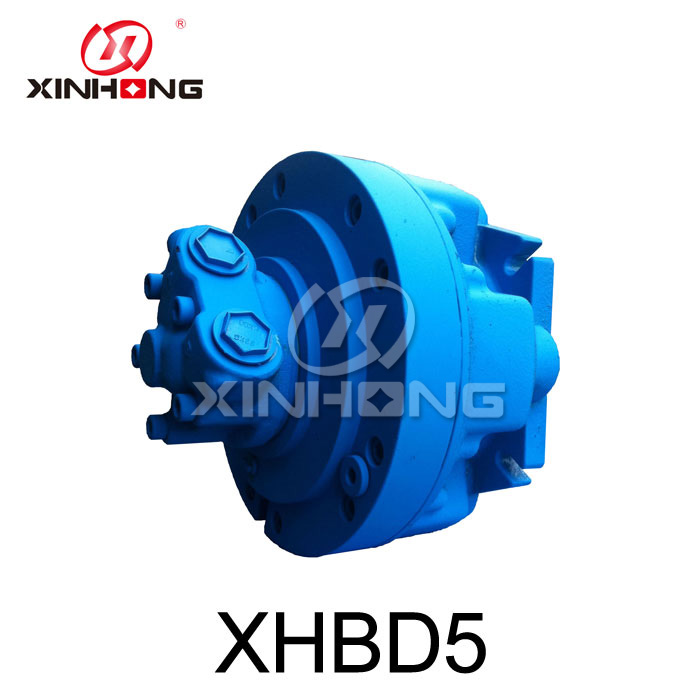

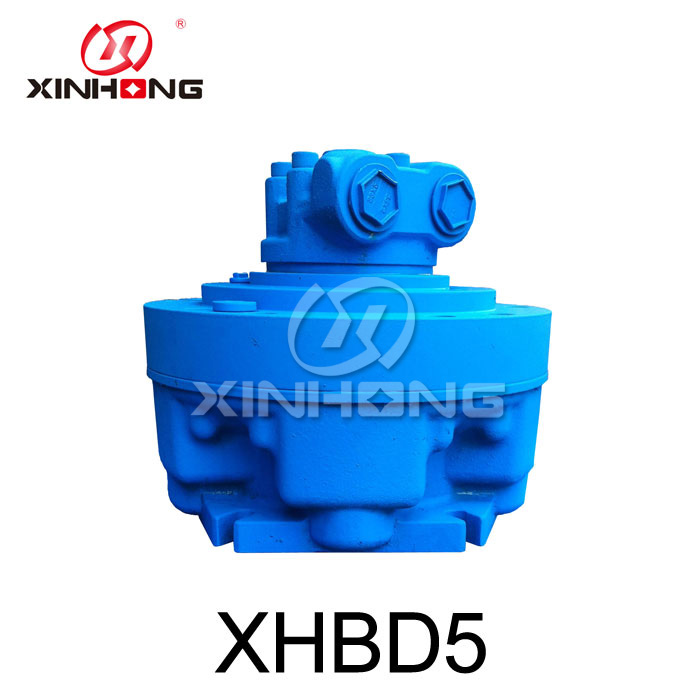

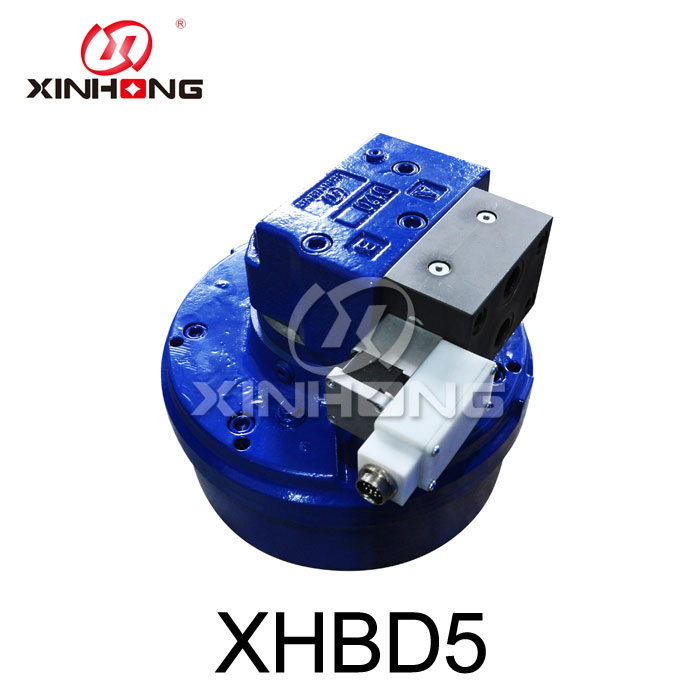

XHBD5

Unit

1000

1500

1800

Displacement

ml/r

957

246

1505

387

1848

475

Unit torque

Nm/MPa

149

38

235

60

288

74

Rated pressure

MPa

25

25

25

Max pressure

Mpa

42.5

37.5

35

Max.Rotation Rate

RPM

700

1400

600

1200

500

1000

Max Power

kw

170

150

170

150

170

150


3.Product Feature And Application

This is a Industrial Variable Displacement Radial Piston Motor with High Power. These motors can handle power supplied in torque or power supplied in speed depending on the working conditions. This Industrial Variable Displacement Radial Piston Motor with High Power can change speed smoothly under high pressure working condition. In some application cases, the user can rise heavy cargo in large displacement with high torque and descend it in small displacement with high speed. Compare with fixed displacement motor, they can make work flexible and save more energy for customer. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Industrial Variable Displacement Radial Piston Motor with High Power

This Industrial Variable Displacement Radial Piston Motor with High Power change the displacement by changing the eccentricity of crankshaft. The user can switch the eccentricity of crankshaft by a external control valve like solenoid valve. A low voltage control signal can be dynamically or statically make displacement change from high to low.


5.Product Qualification of Industrial Variable Displacement Radial Piston Motor with High Power

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Industrial Variable Displacement Radial Piston Motor with High Power

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
