We have developed and sold this Hydraulic Heavy-duty Crane Winch to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hydraulic Heavy-duty Crane Winch from us. Every request from customers is being replied within 24 hours.
1.Product Introduction of Hydraulic Heavy-duty Crane Winch

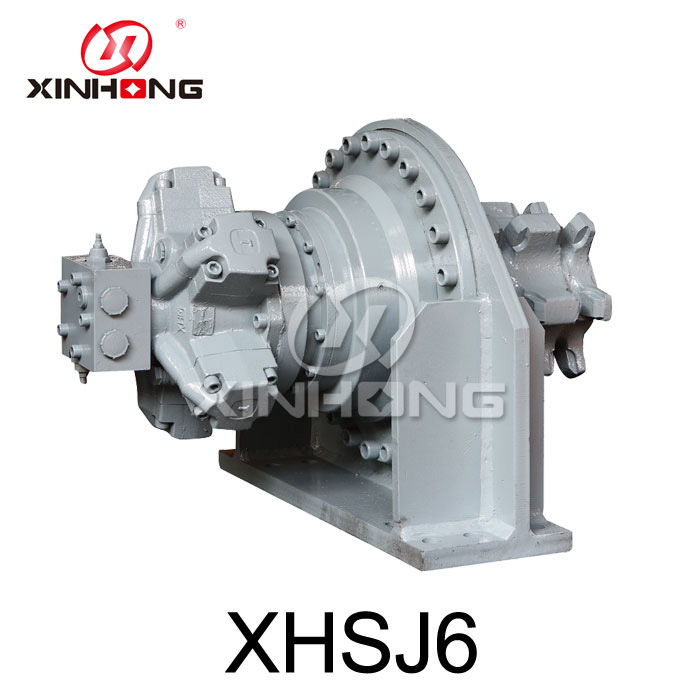

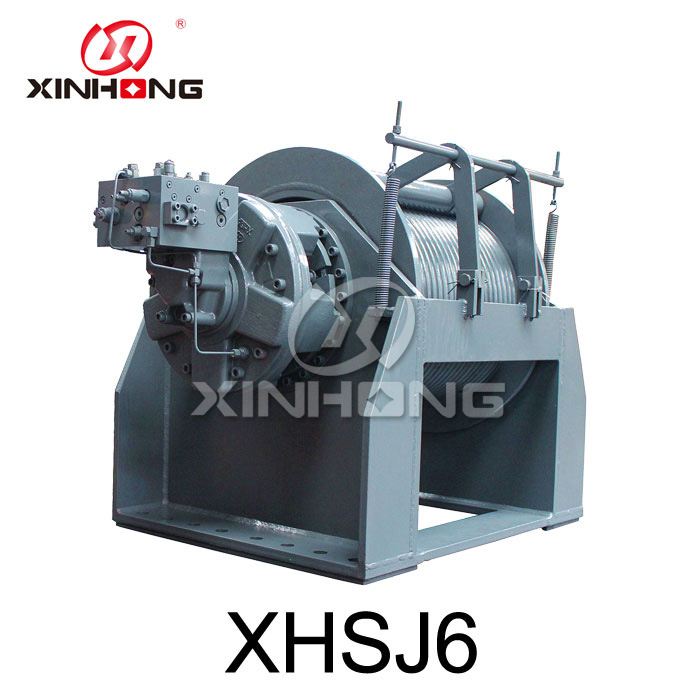

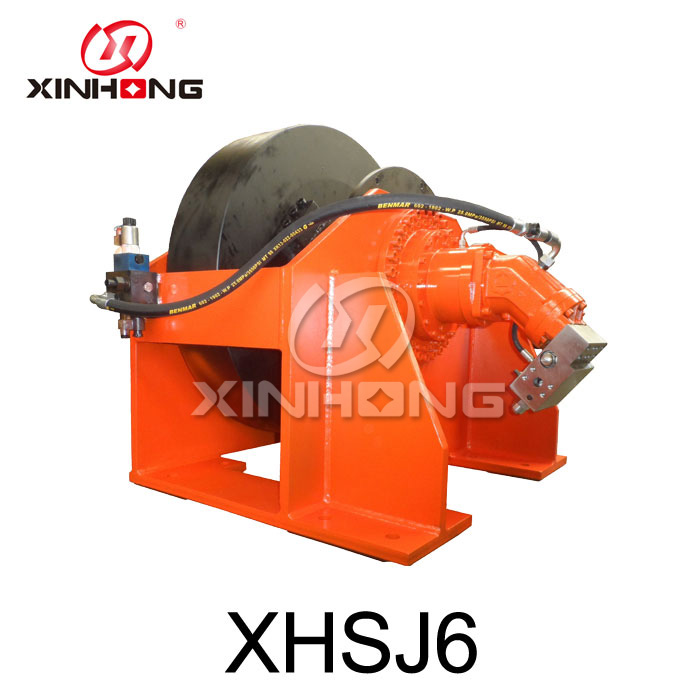

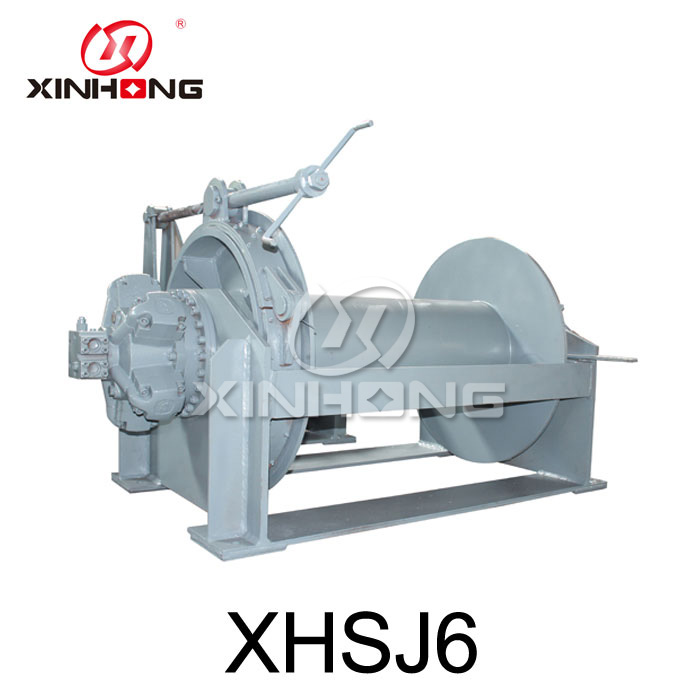

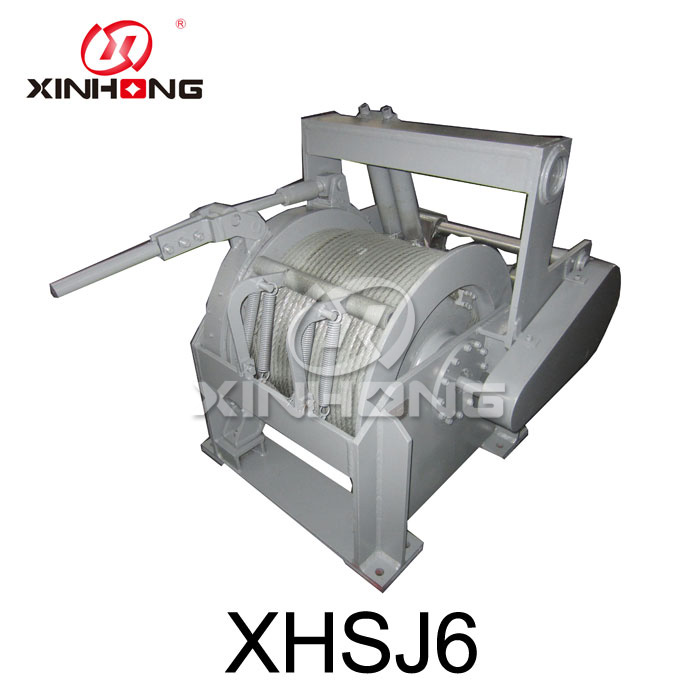

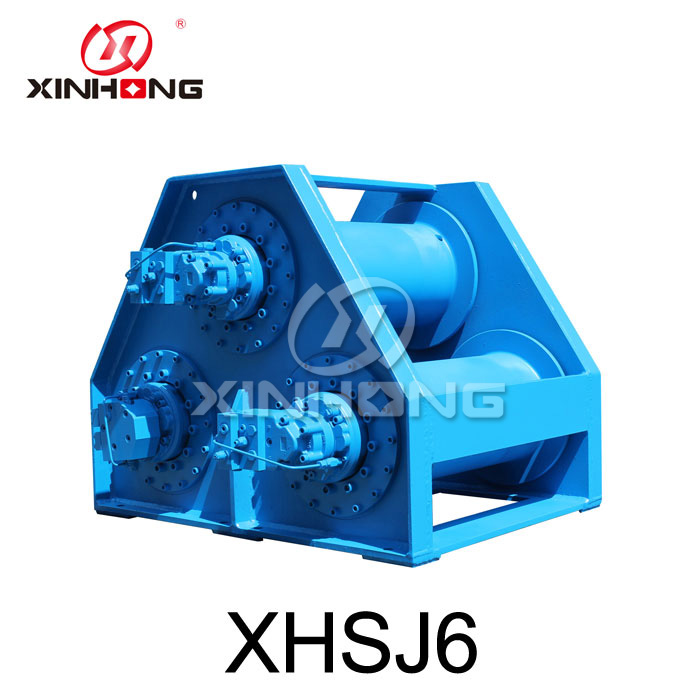

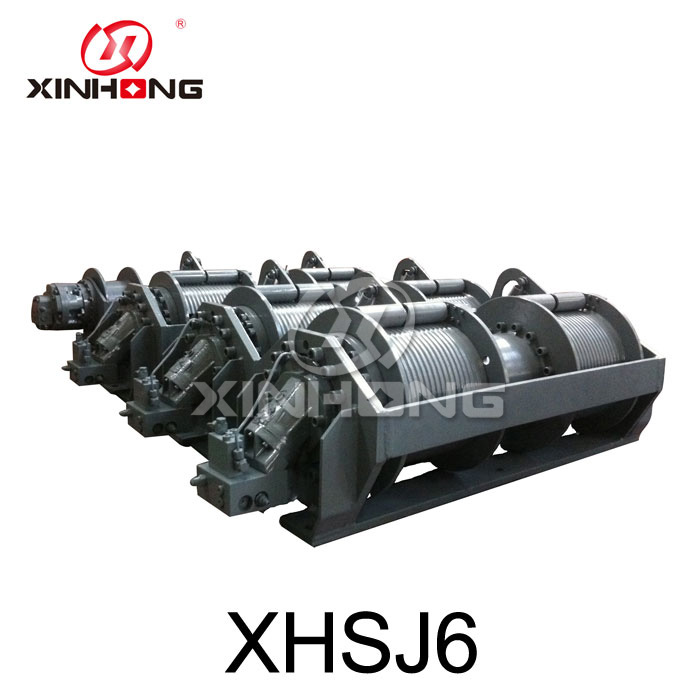

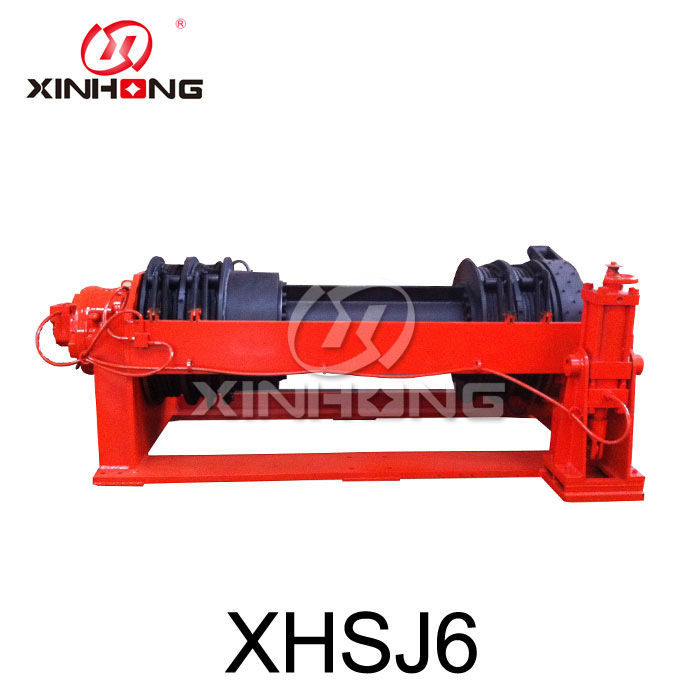

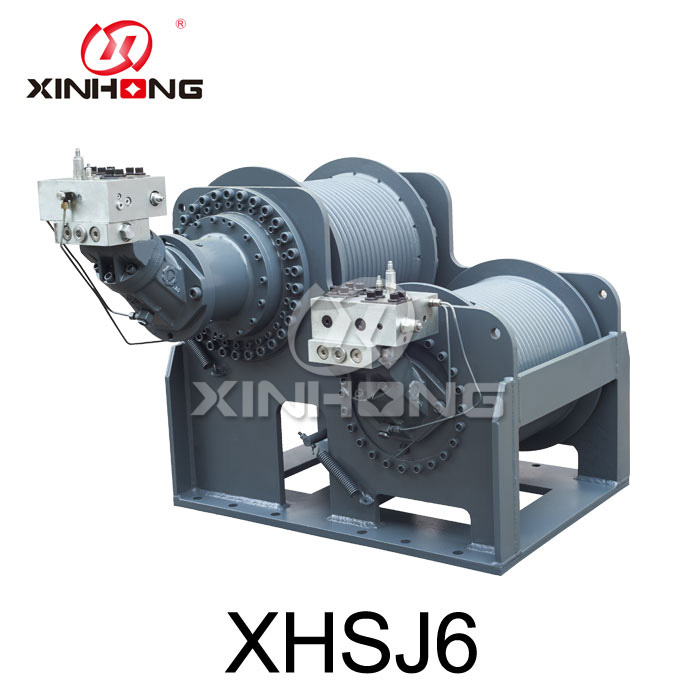

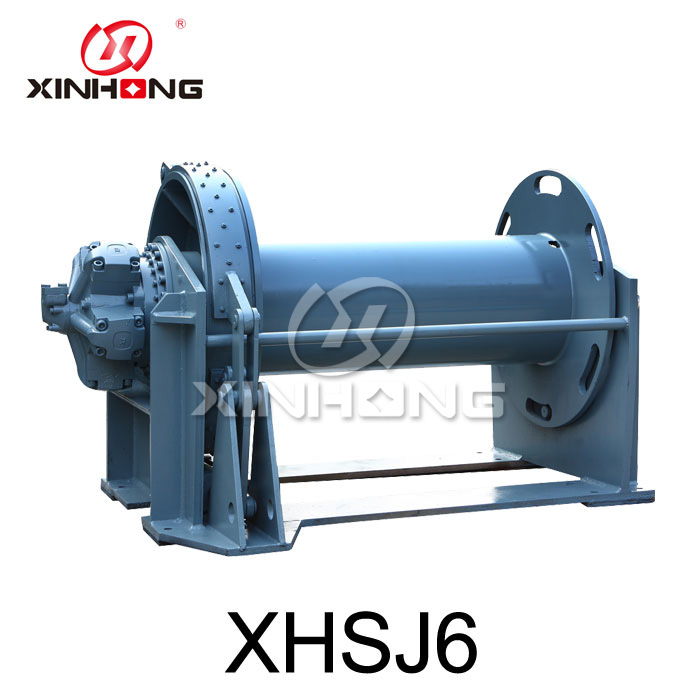

We have manufactured this Hydraulic Heavy-duty Crane Winch since 2006. Hydraulic Heavy-duty Crane Winch consists of hydraulic motor, planetary reducer, disc brake, oil distributor and steel structure. Our Hydraulic Heavy-duty Crane Winch has its own valve group which makes hydraulic system more simple and increases stability of the transmission device.
2.Product Parameter (Specification) of Hydraulic Heavy-duty Crane Winch
|
Model |
First layer |
Reel bottom diamete(mm) |
Total displacement(ml/r) |
Difference of working pressures |
Diameter of steel cable(mm) |
Steel cable capacity(m) |
Model of hydraulic motor |
Model of planetary reducer |
|
|
Pull force(KN) |
Rope speed(m/min) |
||||||||
|
XHSJ6-120-176-30-ZP |
120 |
0-30 |
600 |
16725 |
17 |
30 |
175 |
XHS6-3000D480101 |
C6-5.5 |
|
XHSJ6-150-150-34-ZP |
150 |
0-25 |
600 |
16725 |
19.8 |
34 |
150 |
XHS6-3000D480101 |
C6-5.5 |
3.Product Feature And Application
This Hydraulic Heavy-duty Crane Winch can lift and put down stably without empty hook vibrating and twice falling during hoisting. Our Hydraulic Heavy-duty Crane Winch has advantages in high efficiency, low energy consumption, low noise and compact structure due to our accurate design proposal. This Hydraulic Heavy-duty Crane Winch is widely applied in railway and automobile crane, ship, oil field, coal mine, port and other lifting equipment. Our design group can customize Hydraulic Heavy-duty Crane Winch according to actual working condition.
4.Product Details of Hydraulic Heavy-duty Crane Winch

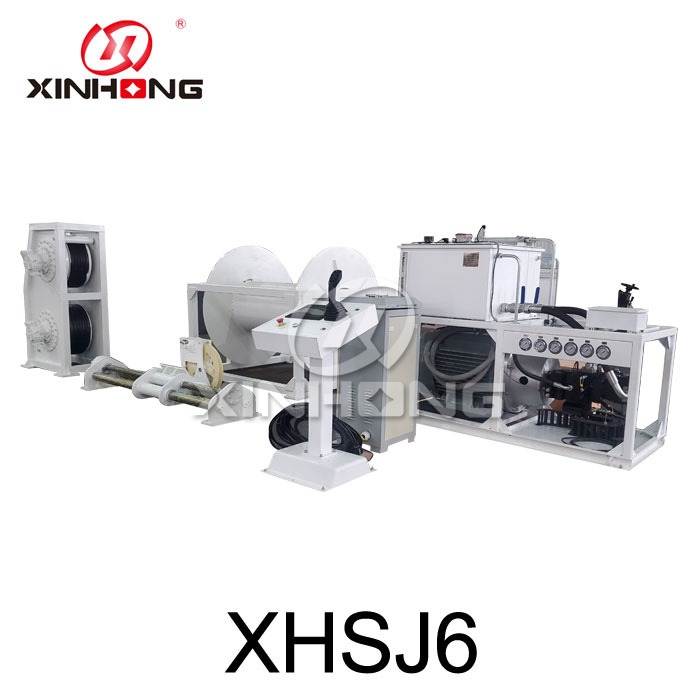

Our company not only provides Hydraulic Heavy-duty Crane Winch, but also provides whole hydraulic system and power source. The hydraulic motor, planetary gearbox and system of Hydraulic Heavy-duty Crane Winch are designed and manufactured by our own factory. So the quality and delivery time can be controlled and guaranteed. We can also supply timely after-sale service and technique support.
5.Product Qualification of Hydraulic Heavy-duty Crane Winch
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Hydraulic Heavy-duty Crane Winch
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
