We have developed and sold this Hoisting Crane Winch with Winch Brake to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Hoisting Crane Winch with Brake from us. Every request from customers is being replied within 24 hours.
1.Product Introduction of Hoisting Crane Winch with Brake

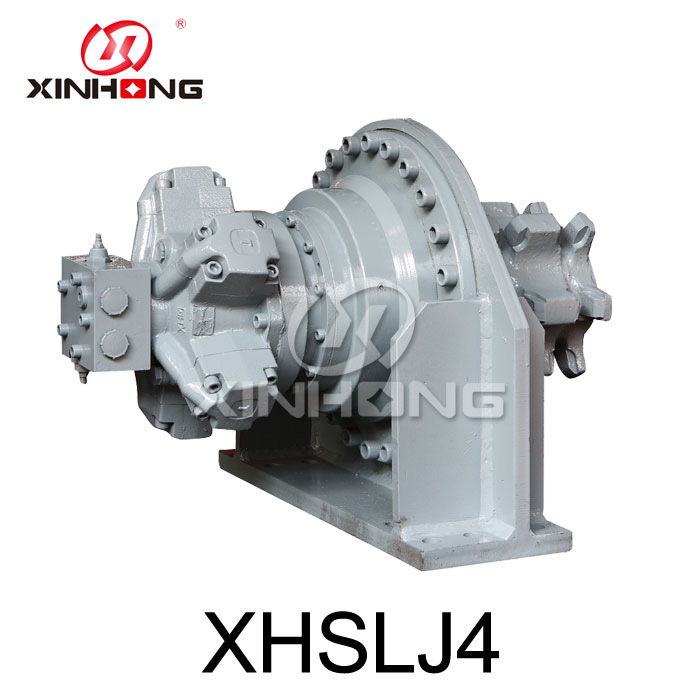

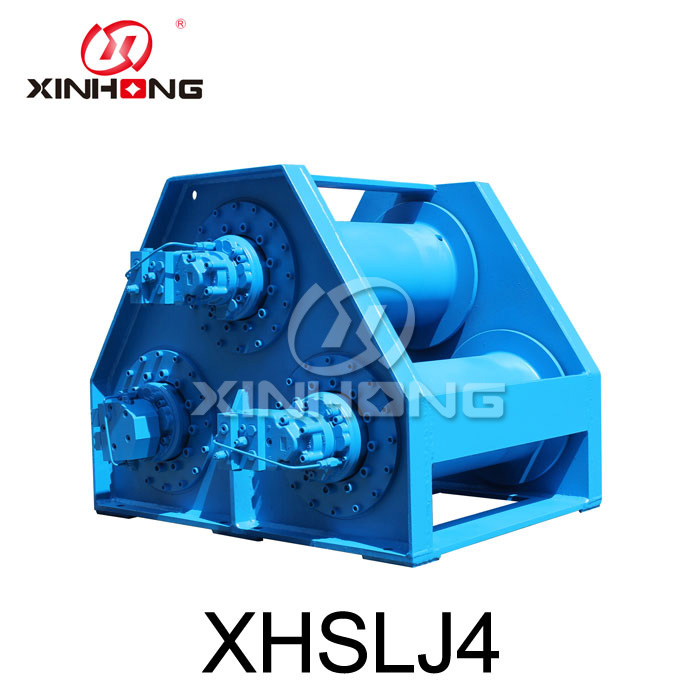

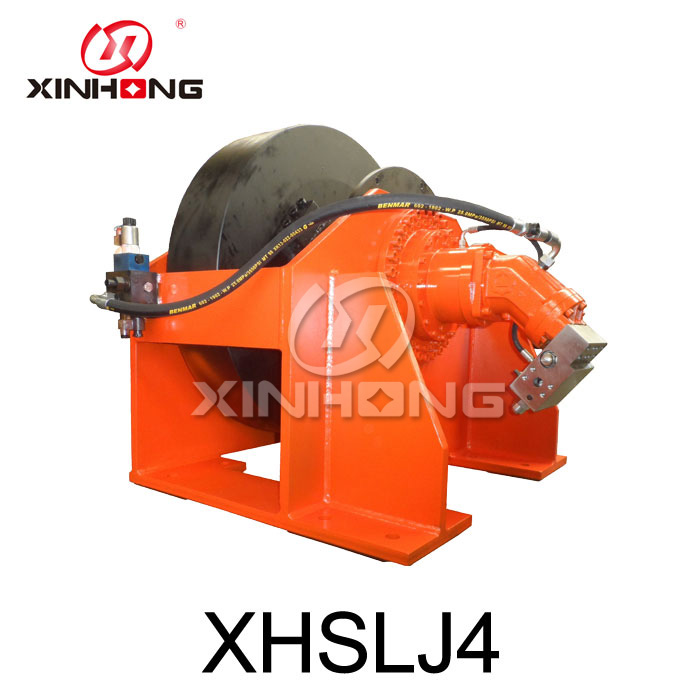

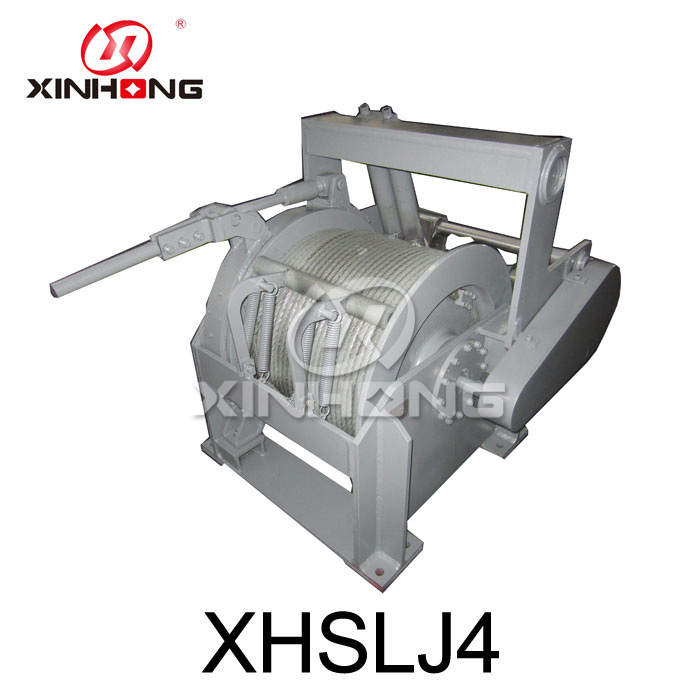

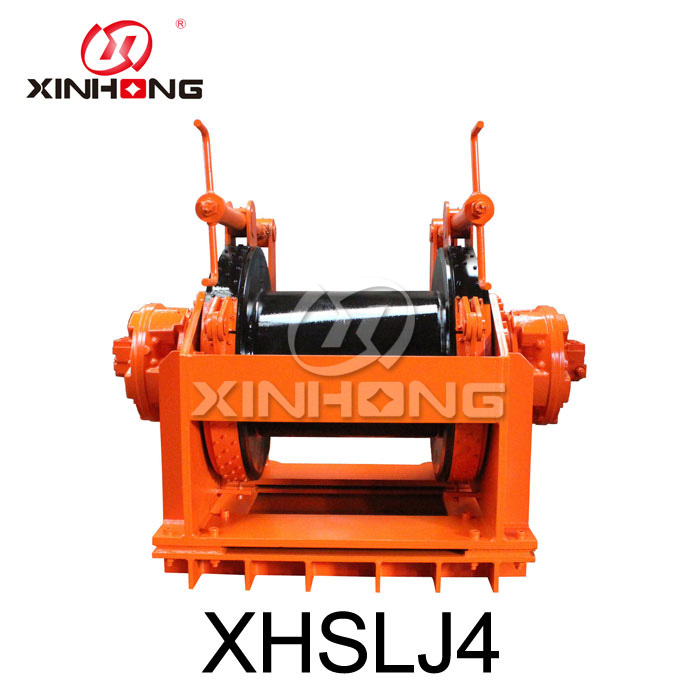

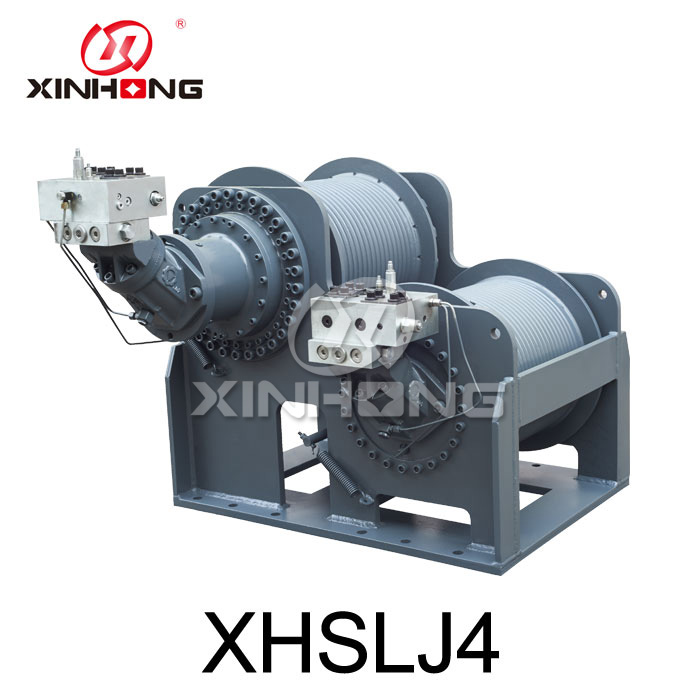

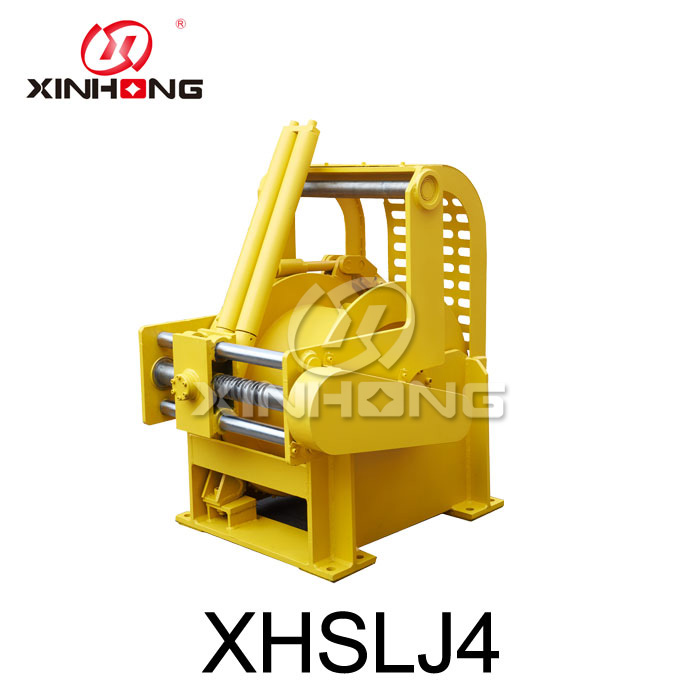

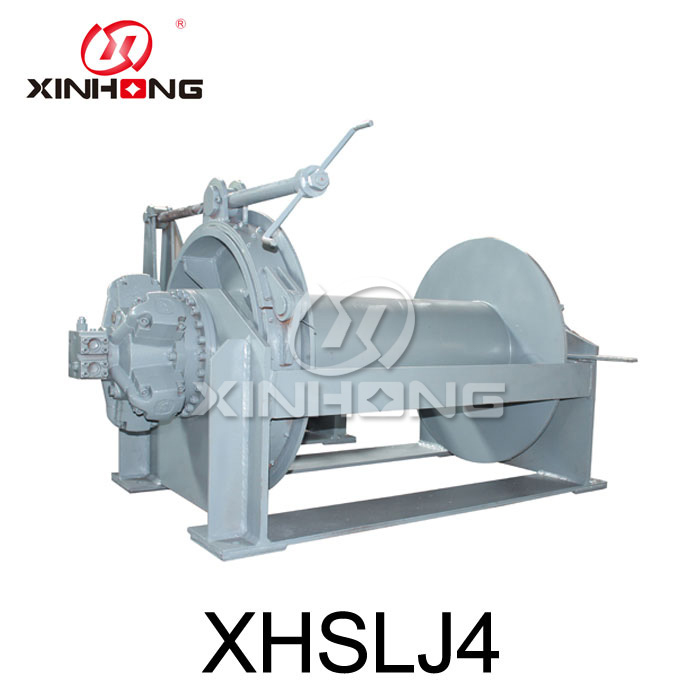

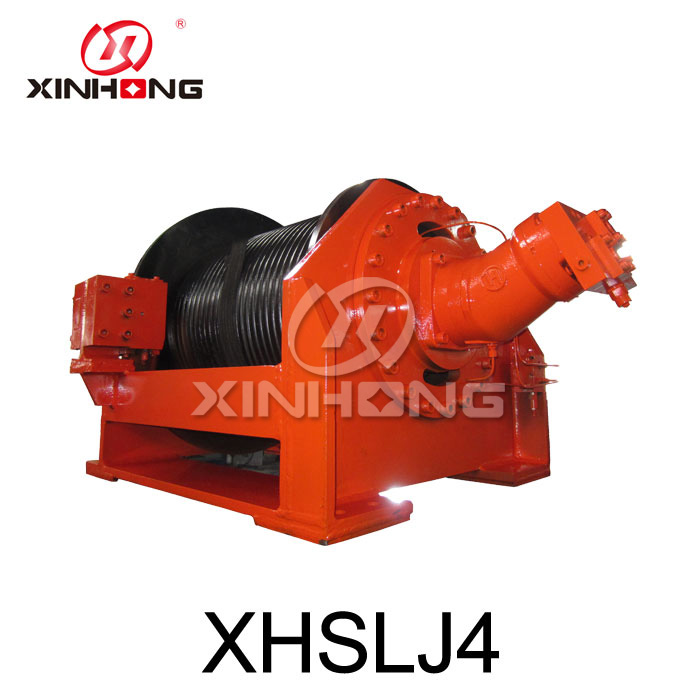

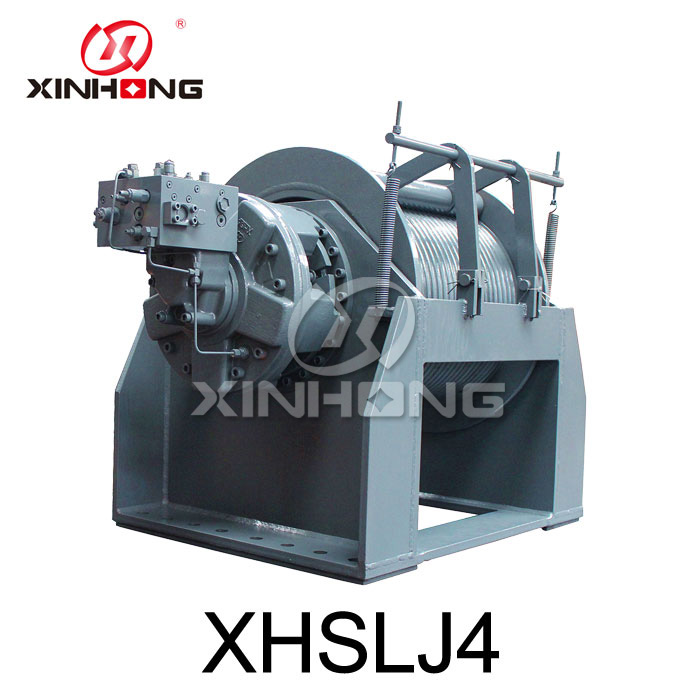

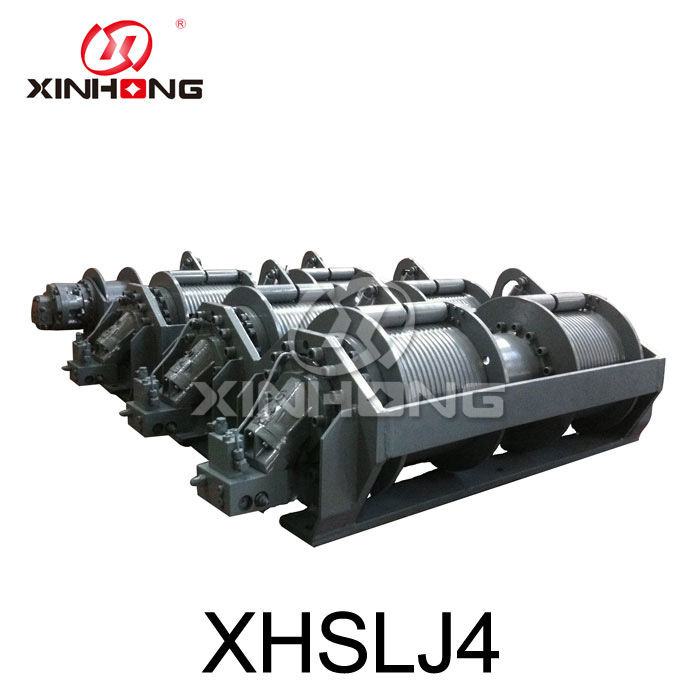

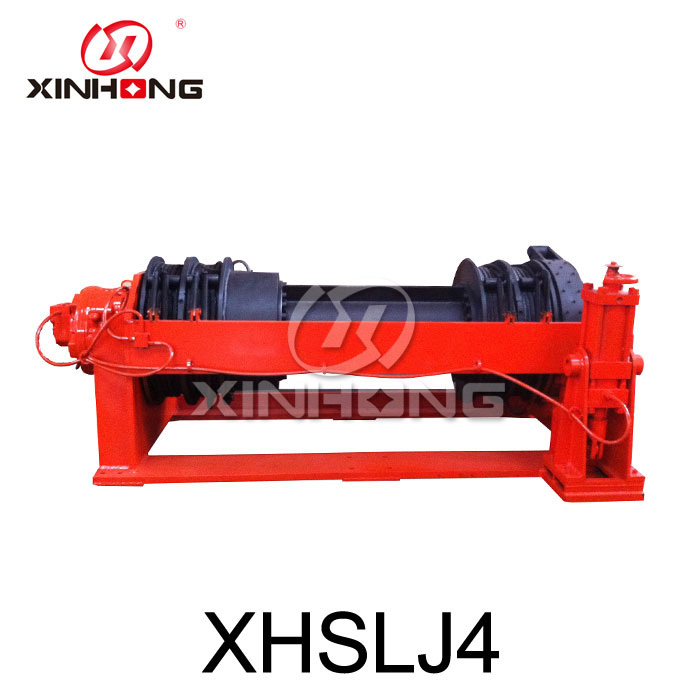

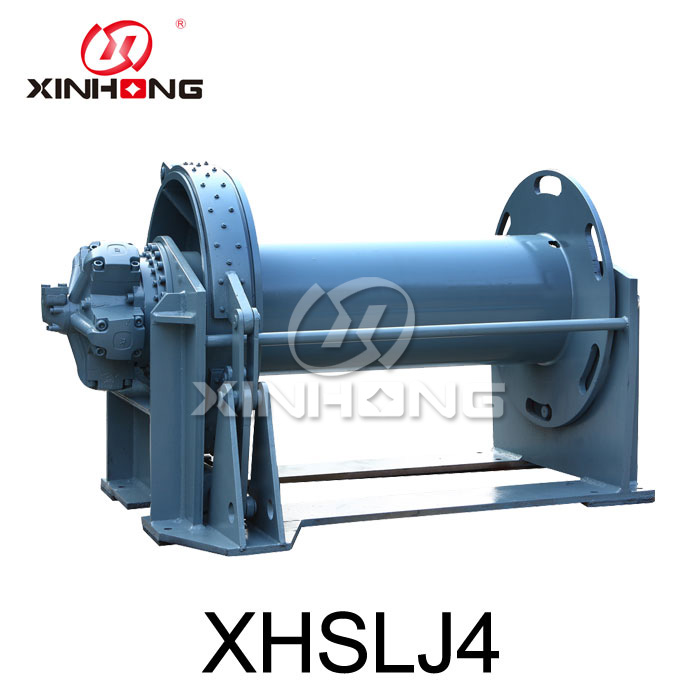

We have manufactured this Hoisting Crane Winch with Brake since 2006. Hoisting Crane Winch with Brake consists of hydraulic motor, planetary reducer, disc brake, oil distributor and steel structure. Our Hoisting Crane Winch with Brake has its own valve group which makes hydraulic system more simple and increases stability of the transmission device.
2.Product Parameter (Specification) of Hoisting Crane Winch with Brake
|
Model |
First layer |
Reel bottom diamete(mm) |
Total displacement(ml/r) |
Difference of working pressures |
Diameter of steel cable(mm) |
Steel cable capacity(m) |
Model of hydraulic motor |
Model of planetary reducer |
|
|
Pull force(KN) |
Rope speed(m/min) |
||||||||
|
XHSLJ4-50-100-20-ZP |
50 |
0-40 |
2.5-3.0/5.0-7.0 |
4961 |
13.6 |
20 |
100 |
XHM11-1000D240101 |
C4A |
|
XHSLJ4-60-90-21.5-ZP |
60 |
0-40 |
2.5-3.0/5.0-7.0 |
6138 |
14.2 |
21.5 |
90 |
XHM11-1000D240101 |
C4D |
3.Product Feature And Application
This Hoisting Crane Winch with Brake can lift and put down stably without empty hook vibrating and twice falling during hoisting. Our Hoisting Crane Winch with Brake has advantages in high efficiency, low energy consumption, low noise and compact structure due to our accurate design proposal. This Hoisting Crane Winch with Brake is widely applied in railway and automobile crane, ship, oil field, coal mine, port and other lifting equipment. Our design group can customize Hoisting Crane Winch with Brake according to actual working condition.
4.Product Details of Hoisting Crane Winch with Brake

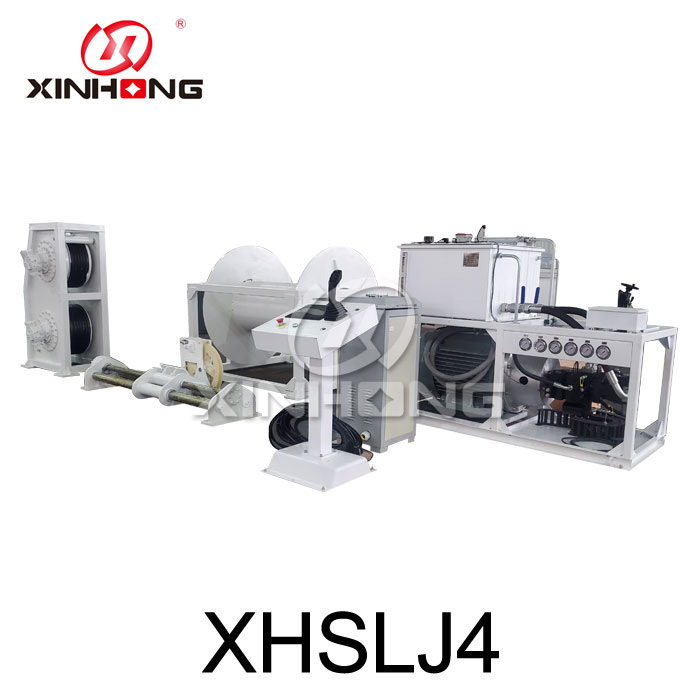

Our company not only provides Hoisting Crane Winch with Brake, but also provides whole hydraulic system and power source. The hydraulic motor, planetary gearbox and system of Hoisting Crane Winch with Brake are designed and manufactured by our own factory. So the quality and delivery time can be controlled and guaranteed. We can also supply timely after-sale service and technique support.
5.Product Qualification of Hoisting Crane Winch with Brake
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Hoisting Crane Winch with Brake
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
