High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives

We have developed and sold this High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We always put customer first. We are expecting to become your long-term partner in China.

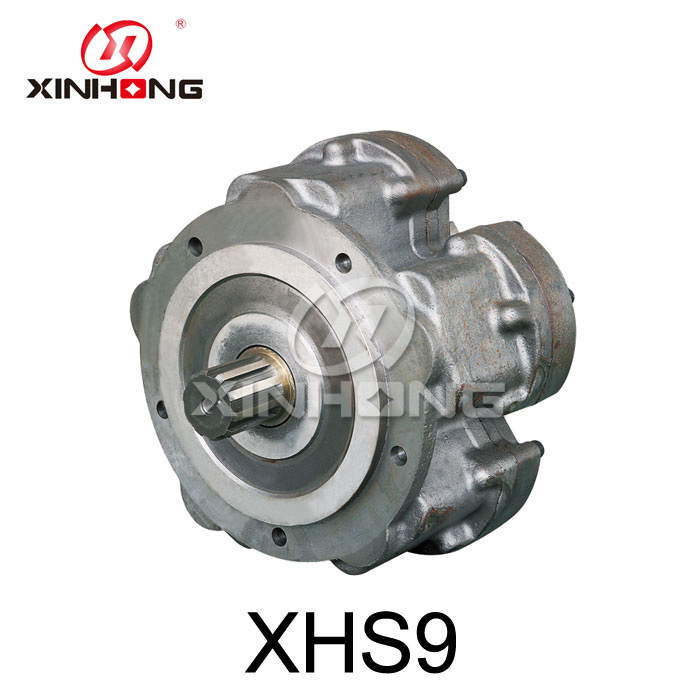

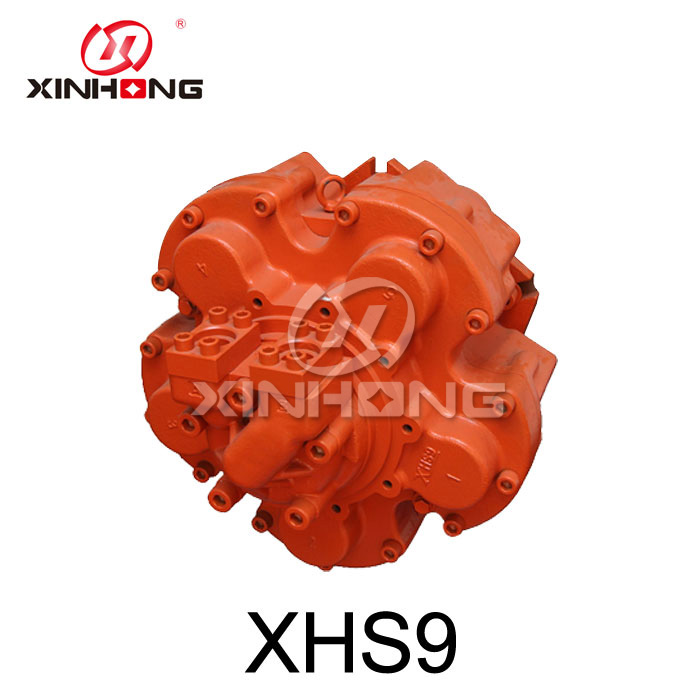

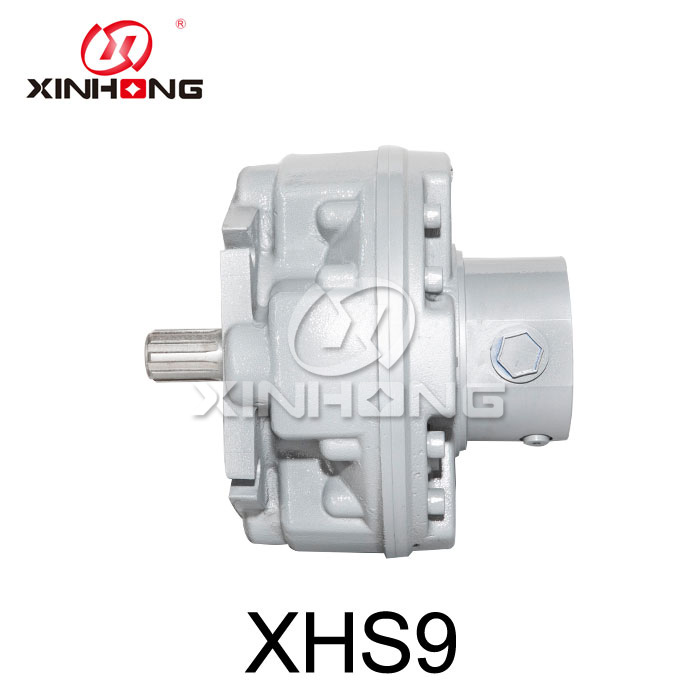

Model:XHS9

Send Inquiry

Product Description

1.Product Introduction of High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives

We have manufactured this High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives can transfer hydraulic energy to mechanical energy with high efficiency.

High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives


2.Product Parameter (Specification) of High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives

XHS9

Unit

5000

5700

6600

7700

8800B

10000B

11000B

12000B

Displacement

ml/r

5002

5743

6626

7687

8835

10053

11349

12026

Specific torque

Nm/MPa

795

913

1053

1222

1404

1598

1804

1912

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

350

350

350

350

350

350

350

350

Torque rating

Nm

17990

20655

23835

27650

31780

36160

40825

43260

Peak torque

Nm

217415

24590

28370

32915

37830

43045

48595

51495

Speed rating

r/min

110

105

100

95

90

80

75

65

Cont. speed

r/min

140

130

125

120

110

100

95

80

Max. speed

r/min

150

140

135

130

120

110

105

100

Weight

kg

700

700

700

700

700

700

700

700


3.Product Feature And Application

This is a fixed displacement and High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives. This High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives

This High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of High Efficiency Radial Piston Motor for Heavy Duty Wheel Drives

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
