Electric Control Radial Piston Motor with High Speed

We have developed and sold this Electric control Radial Piston Motor with high speed to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Electric control Radial Piston Motor with high speed from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Electric Control Radial Piston Motor with High Speed

We have manufactured this Electric Control Radial Piston Motor with High Speed since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Electric Control Radial Piston Motor with High Speed can transfer hydraulic energy to mechanical energy with high efficiency.

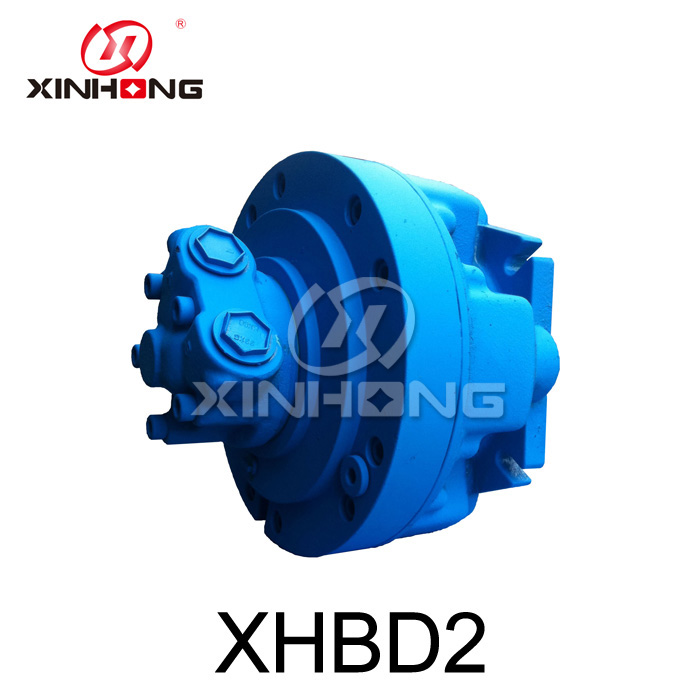

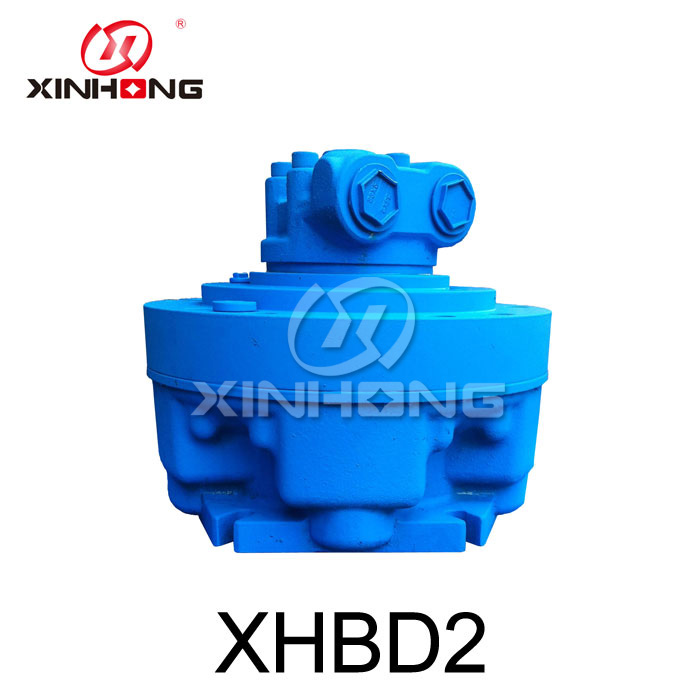

Electric Control Radial Piston Motor with High Speed


2.Product Parameter (Specification) of Electric Control Radial Piston Motor with High Speed

XHBD2

Unit

250

350

500

Displacement

ml/r

251

126

88

347

173

87

493

247

173

Unit torque

Nm/MPa

39.2

19.7

13.7

54.2

27

13.6

76.9

38.5

27

Rated pressure

MPa

25

25

25

Max pressure

Mpa

42.5

37.5

35

Max.Rotation Rate

RPM

1000

1800

2000

1000

1800

2200

800

1600

2000

Max Power

kw

70

60

60

75

65

65

75

65

5


3.Product Feature And Application

This is a Electric Control Radial Piston Motor with High Speed. These motors can handle power supplied in torque or power supplied in speed depending on the working conditions. This Electric Control Radial Piston Motor with High Speed can change speed smoothly under high pressure working condition. In some application cases, the user can rise heavy cargo in large displacement with high torque and descend it in small displacement with high speed. Compare with fixed displacement motor, they can make work flexible and save more energy for customer. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Electric Control Radial Piston Motor with High Speed

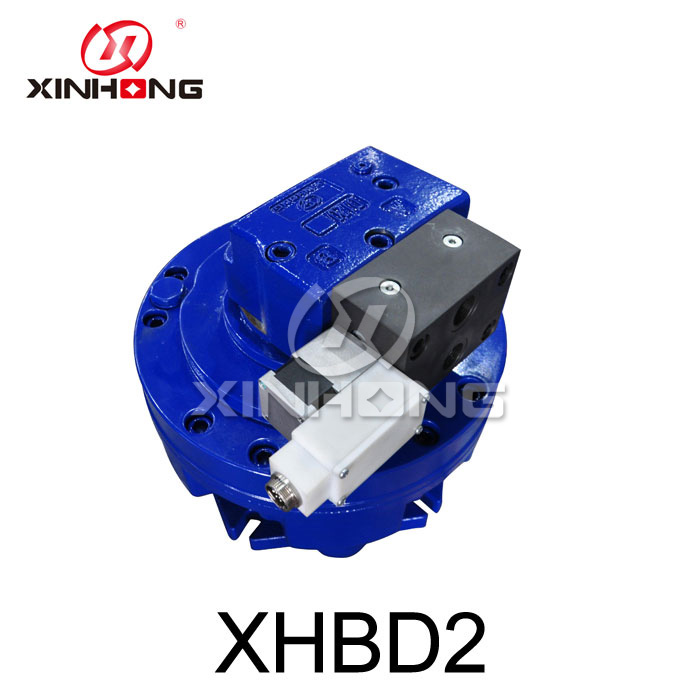

This Electric Control Radial Piston Motor with High Speed change the displacement by changing the eccentricity of crankshaft. The user can switch the eccentricity of crankshaft by a external control valve like solenoid valve. A low voltage control signal can be dynamically or statically make displacement change from high to low.


5.Product Qualification of Electric Control Radial Piston Motor with High Speed

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Electric Control Radial Piston Motor with High Speed

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
