Double Speed Radial Piston Motor with A Large Variety of Displacement Ratios

We have developed and sold this Double Speed Radial Piston Motor with a large variety of displacement ratios to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Double Speed Radial Piston Motor with a large variety of displacement ratios from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr

We have manufactured this Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr can transfer hydraulic energy to mechanical energy with high efficiency.

Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr


2.Product Parameter (Specification) of Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr

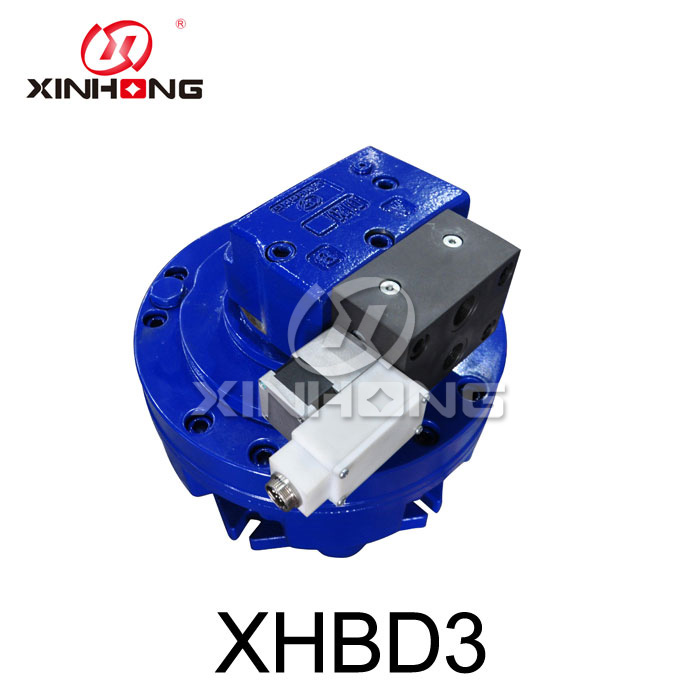

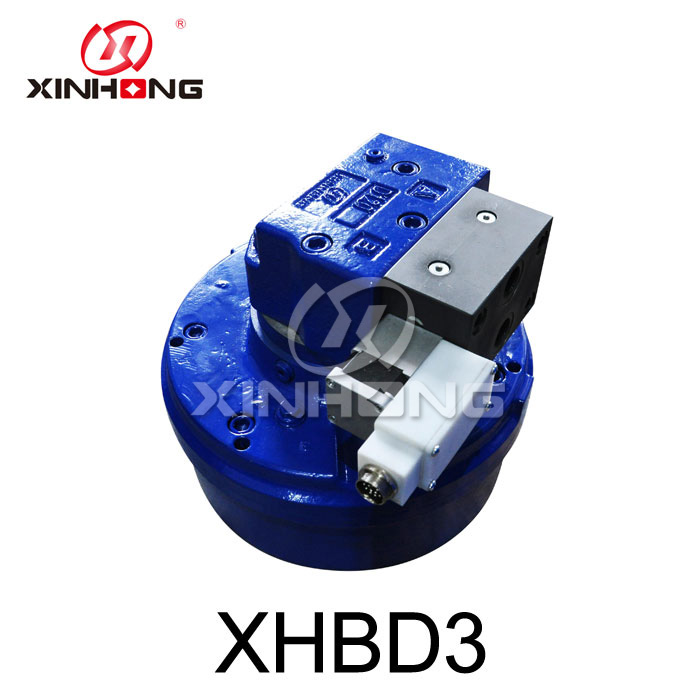

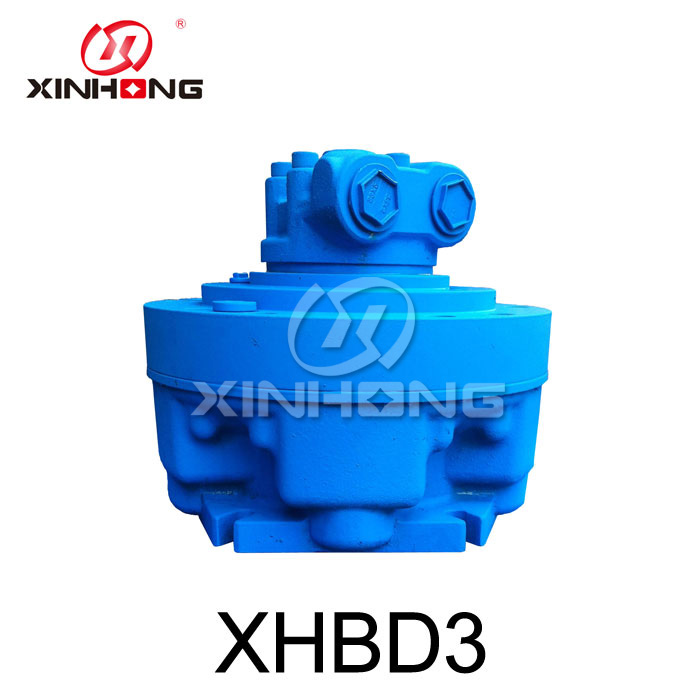

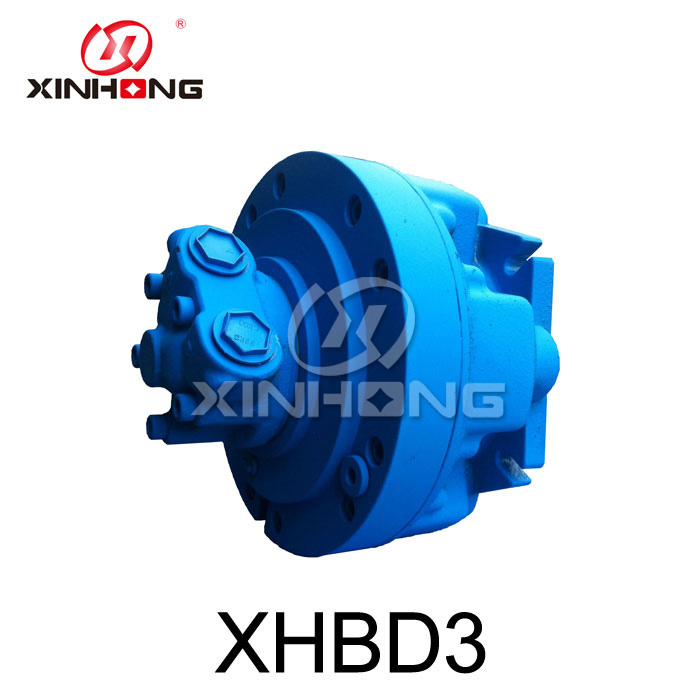

XHBD3

Unit

400

600

800

Displacement

ml/r

426

213

595

298

791

396

Unit torque

Nm/MPa

67.8

33.9

94.7

47.4

126

63

Rated pressure

MPa

25

25

25

Max pressure

Mpa

40

37.5

35

Max.Rotation Rate

RPM

700

1400

700

1400

600

1200

Max Power

kw

100

80

100

80

100

80


3.Product Feature And Application

This is a Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr. These motors can handle power supplied in torque or power supplied in speed depending on the working conditions. This Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr can change speed smoothly under high pressure working condition. In some application cases, the user can rise heavy cargo in large displacement with high torque and descend it in small displacement with high speed. Compare with fixed displacement motor, they can make work flexible and save more energy for customer. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr

This Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr change the displacement by changing the eccentricity of crankshaft. The user can switch the eccentricity of crankshaft by a external control valve like solenoid valve. A low voltage control signal can be dynamically or statically make displacement change from high to low.


5.Product Qualification of Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Double Speed Radial Piston Motor with A Large Variety of Displacement Ratiosr

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
