Double Displacement Winch

We have developed and sold this Double Displacement Winch to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Double Displacement Winch from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1.Product Introduction of Double Displacement Winch

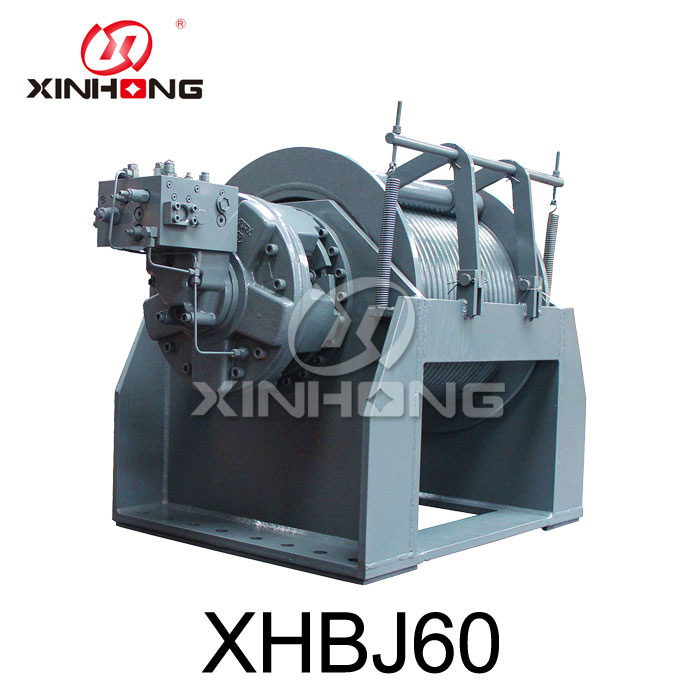

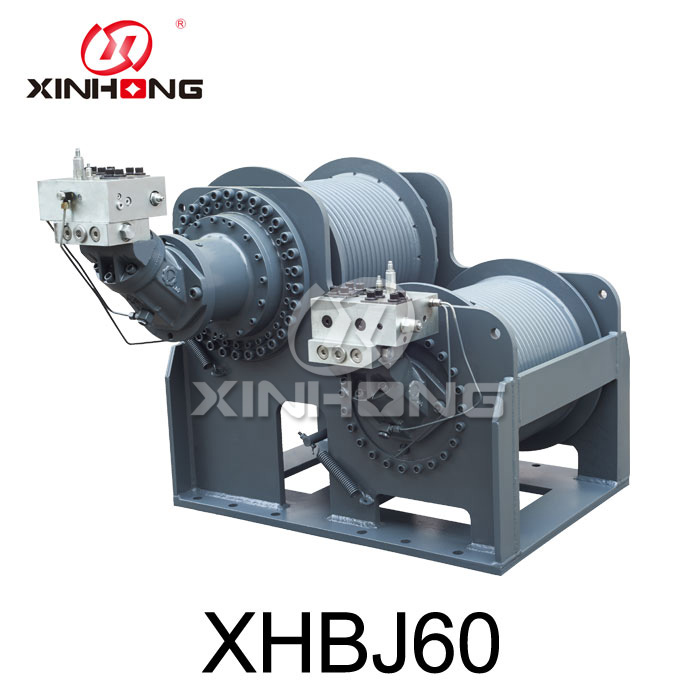

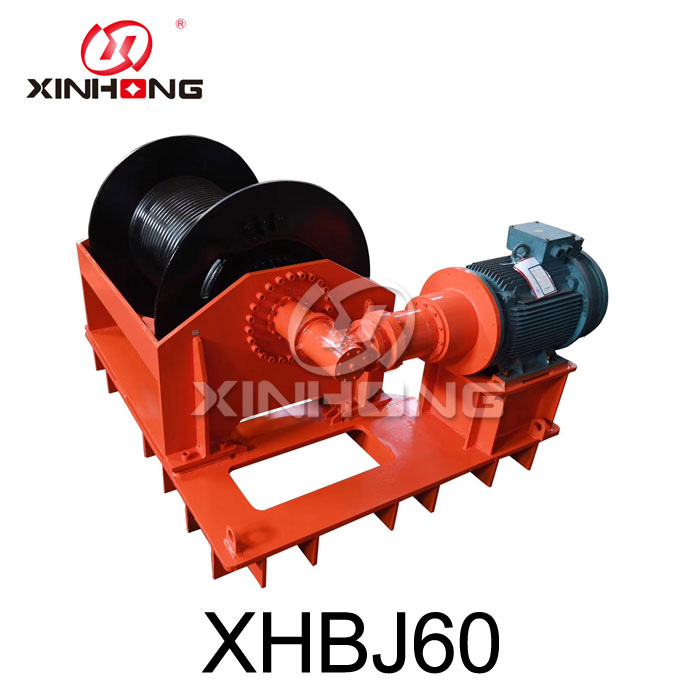

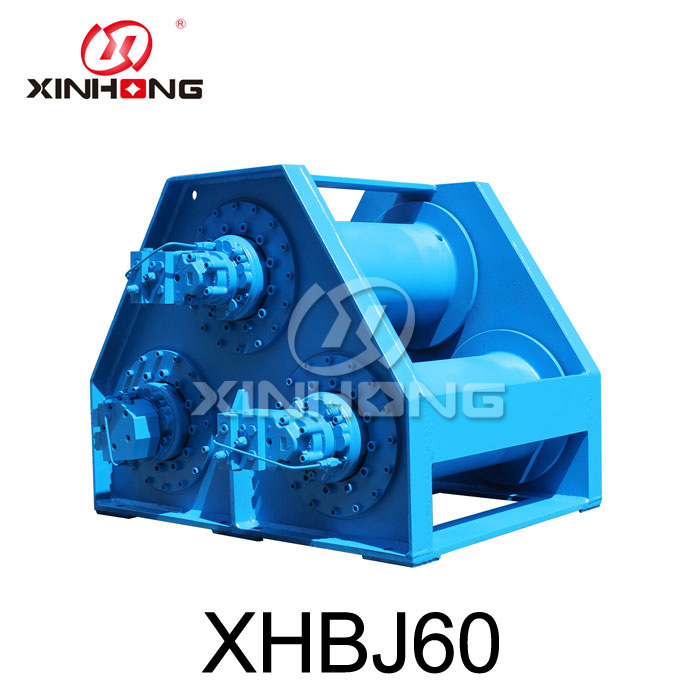

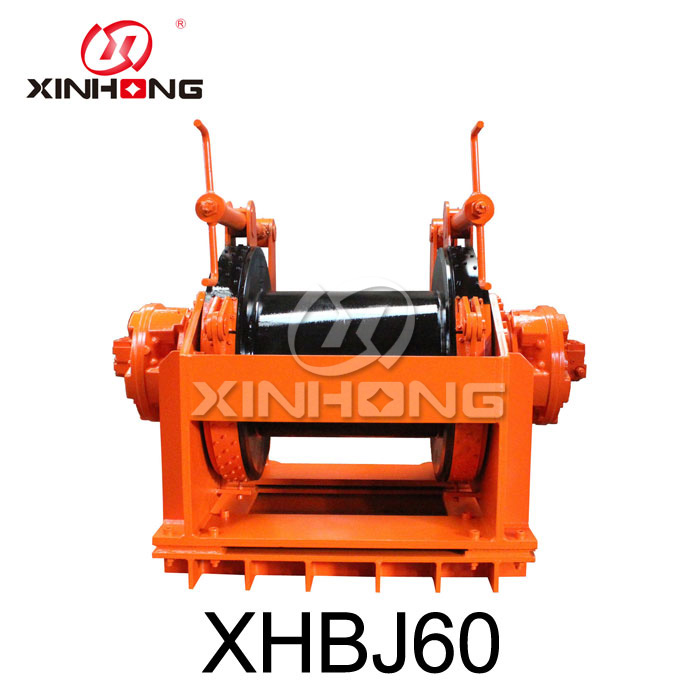

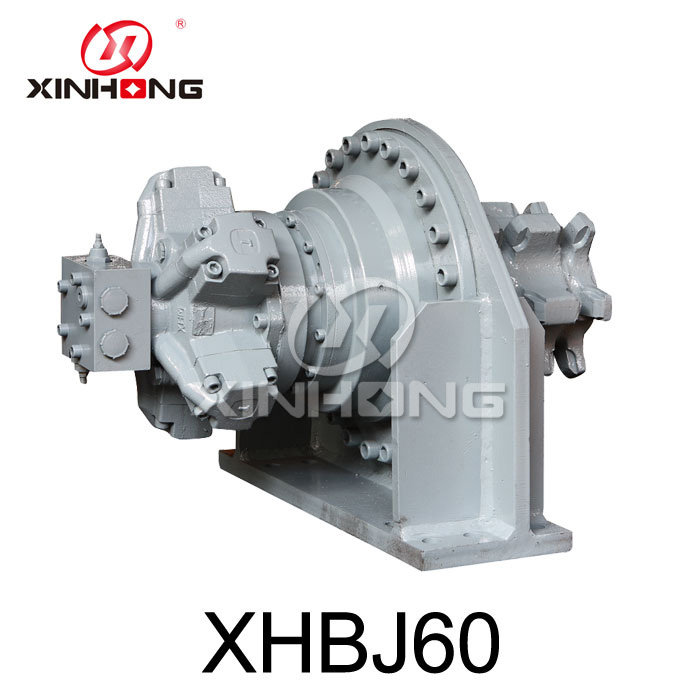

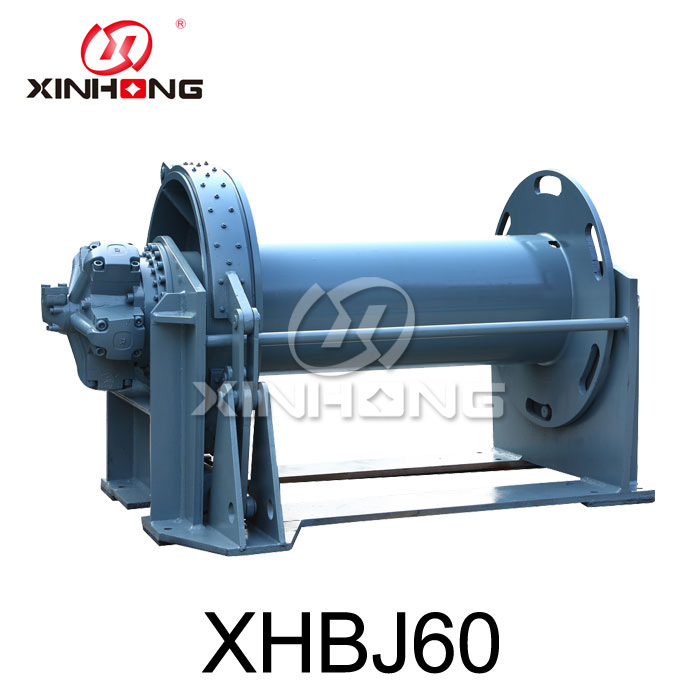

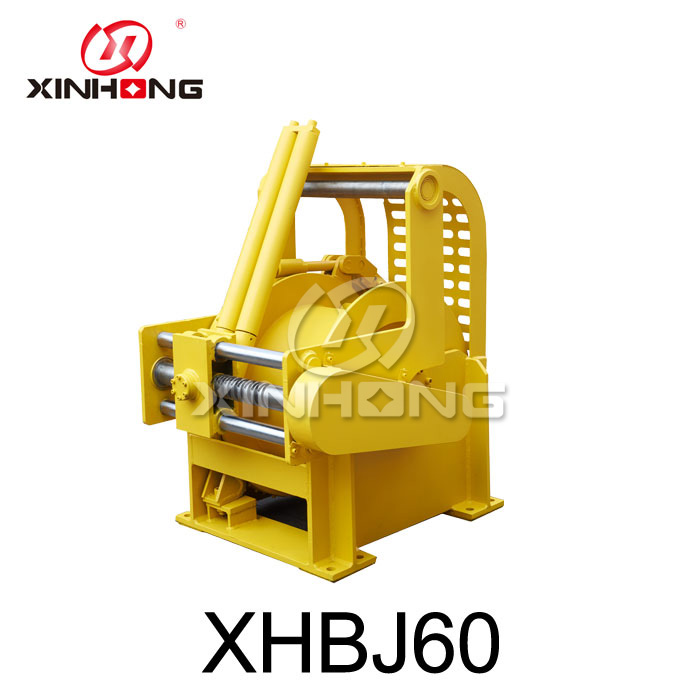

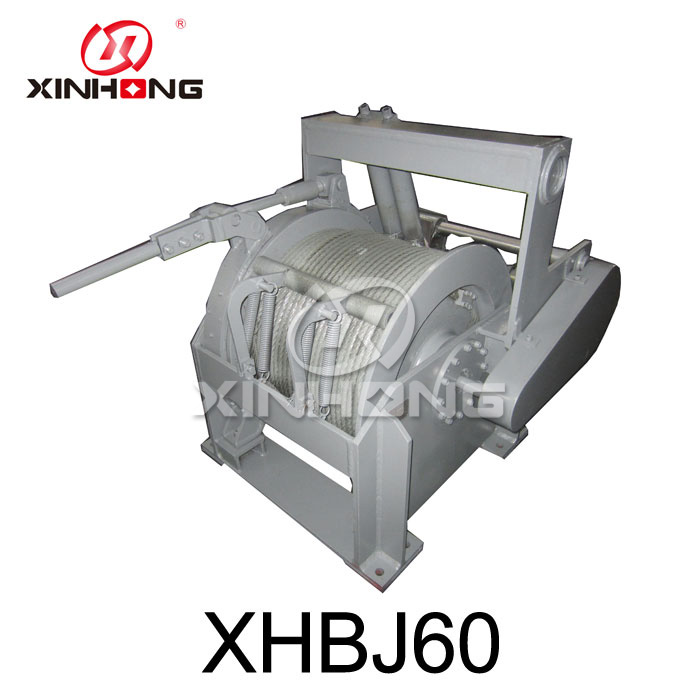

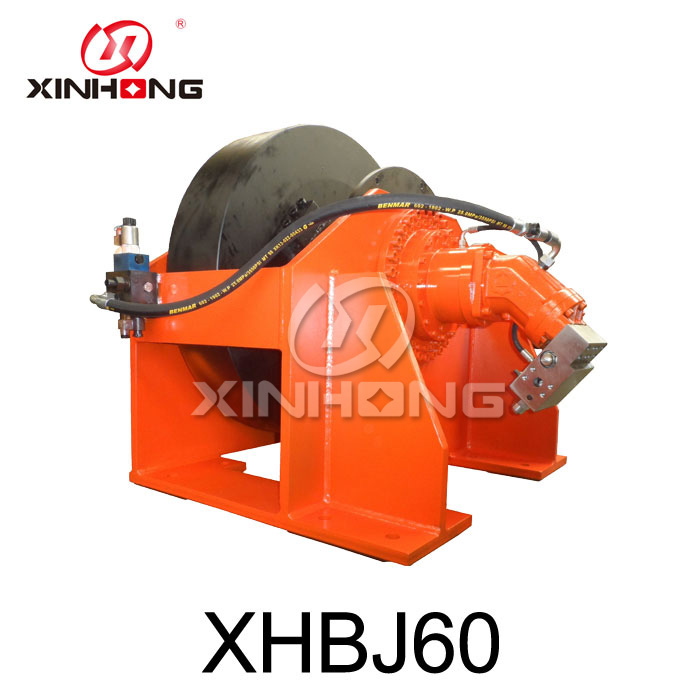

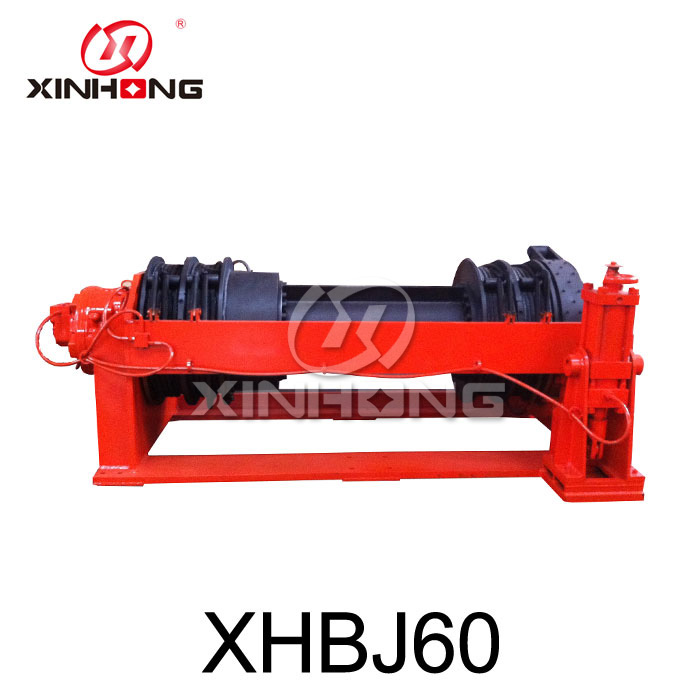

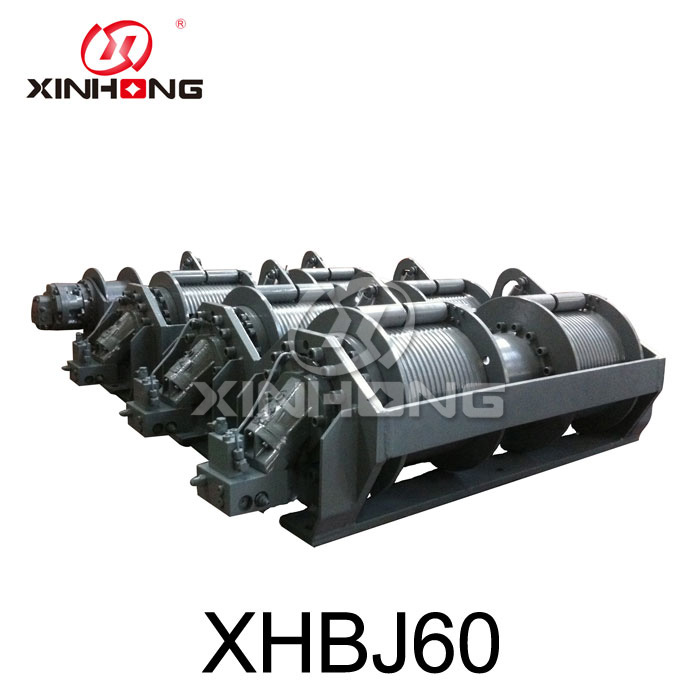

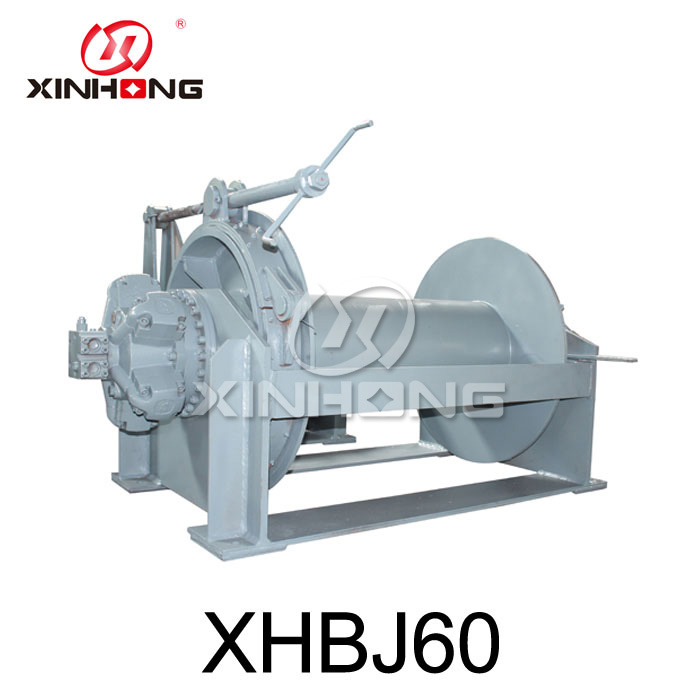

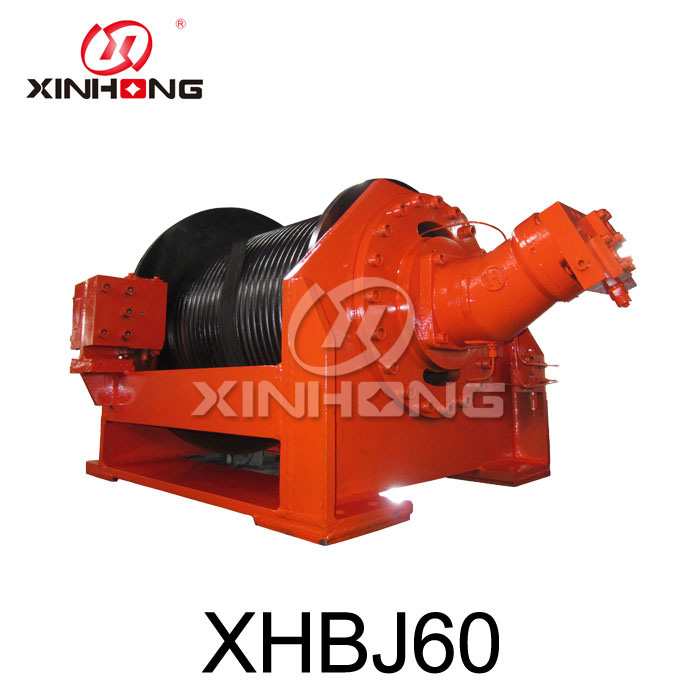

We have manufactured this Double Displacement Winch since 2006. Double Displacement Winch consists of hydraulic motor, planetary reducer, disc brake, oil distributor and steel structure. Our Double Displacement Winch has its own valve group which makes hydraulic system more simple and increases stability of the transmission device.


2.Product Parameter (Specification) of Double Displacement Winch

Model

First layer

Roll bottom diameter(mm)

Speed rudecer displacement(ml/r)

Working pressure(Mpa)

Diameter of steel cable(mm)

Rope volume(m)

Motor model

Planetary reducer model

Pull

(KN)

Rope speed

(m/min)

XHBJ60-90-20-ZP

60

0-30

370

5599

15.5

20

90

XHBD4-1000D90F240101

C4-5.5

20

0-90

370

1958

15.5

20

90


3.Product Feature And Application

This Double Displacement Winch can lift and put down stably without empty hook vibrating and twice falling during hoisting. Our Double Displacement Winch has advantages in high efficiency, low energy consumption, low noise and compact structure due to our accurate design proposal. This Double Displacement Winch is widely applied in railway and automobile crane, ship, oil field, coal mine, port and other lifting equipment. Our design group can customize Double Displacement Winch according to actual working condition.


4.Product Details of Double Displacement Winch

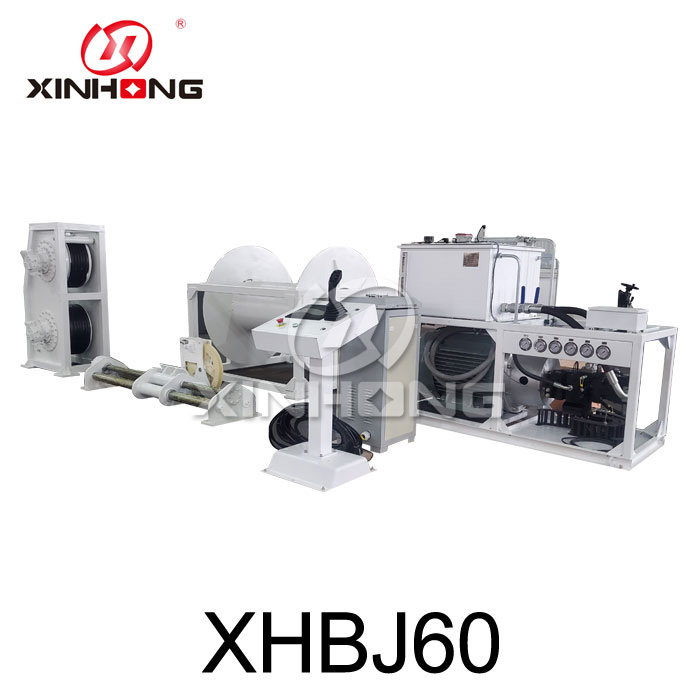

Our company not only provides Double Displacement Winch, but also provides whole hydraulic system and power source. The hydraulic motor, planetary gearbox and system of Double Displacement Winch are designed and manufactured by our own factory. So the quality and delivery time can be controlled and guaranteed. We can also supply timely after-sale service and technique support.


5.Product Qualification of Double Displacement Winch

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Double Displacement Winch

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
